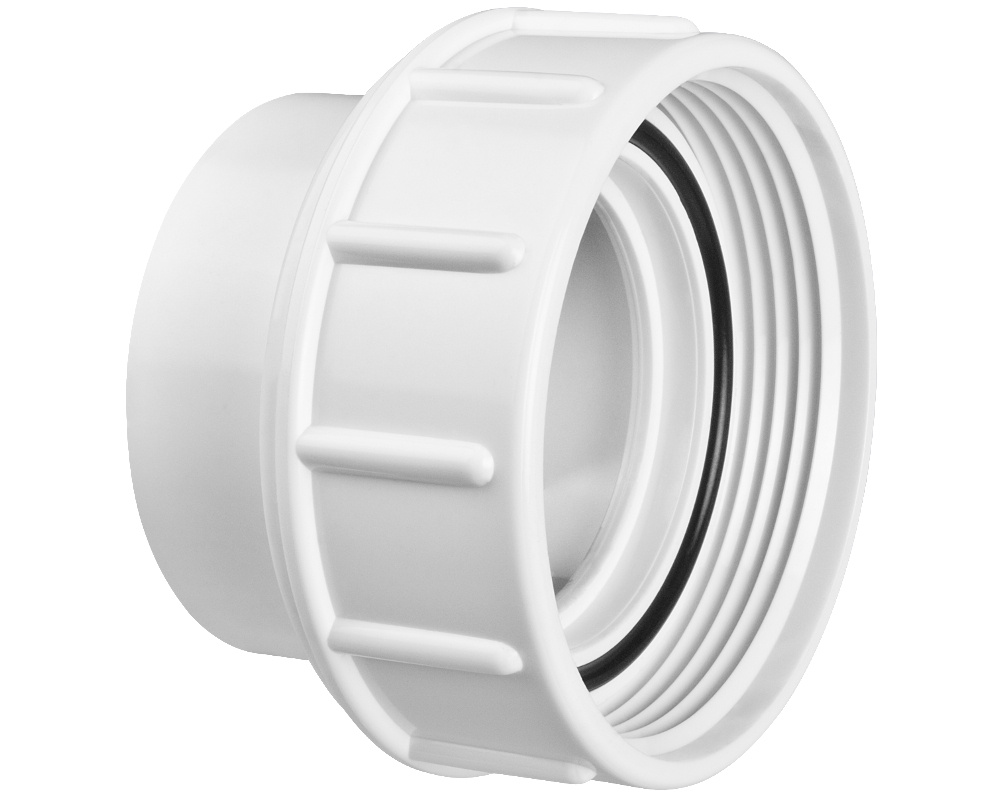

78 mm pump union for 63 mm pipe

This union has a nut that fits on pumps with a 78 mm outside diameter thread (this type of thread is known as 2-inch MBT), and connects to 63 mm pipe.

It is compatible with several pump brands, including Waterway, LX Whirlpool, Aqua-Flo ITT/HydroAir and Balboa.

If the nut breaks, you can replace it with a two-part nut that is screwed together, and therefore perfect for repairs when you need to avoid cutting pipe.

The o-ring is provided.

This union does not fit pumps manufactured by Espa or Davey Spa Power.

Dimensions
Inside diameter of the union thread: 75 mm or 2-inch FBT
Inside diameter smooth side: 63 mm
Outside diameter of the corresponding male thread on the pump: 78 mm

Part numbers
Tubs Parts: U78-63
