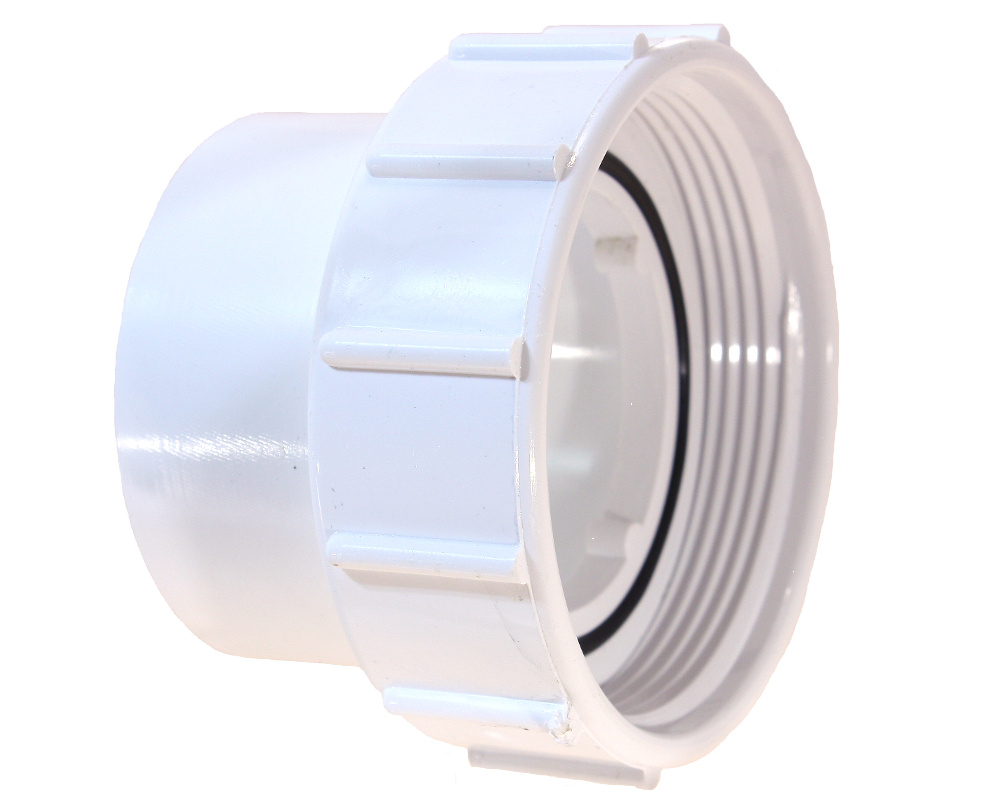

94 mm pump union for 2.5" pipe

This union has a nut that fits on pumps with a 94 mm outside diameter thread (this type of thread is known as 2.5-inch MBT), and connects to 2.5-inch pipe.

It is compatible with several pump brands, including Waterway (mostly Executive), LX Whirlpool, Aqua-Flo ITT/HydroAir and Balboa.

If the nut breaks, you can replace it with a two-part nut that is screwed together, and therefore perfect for repairs when you need to avoid cutting pipe.

The o-ring is provided.

Dimensions
Inside diameter of the union thread : 90 mm or 2.5-inch FBT
Inside diameter smooth side: 73 mm or 2.5-inch
Outside diameter of the corresponding male thread on the pump: 94 mm

Part numbers
Waterway: 400-6010
