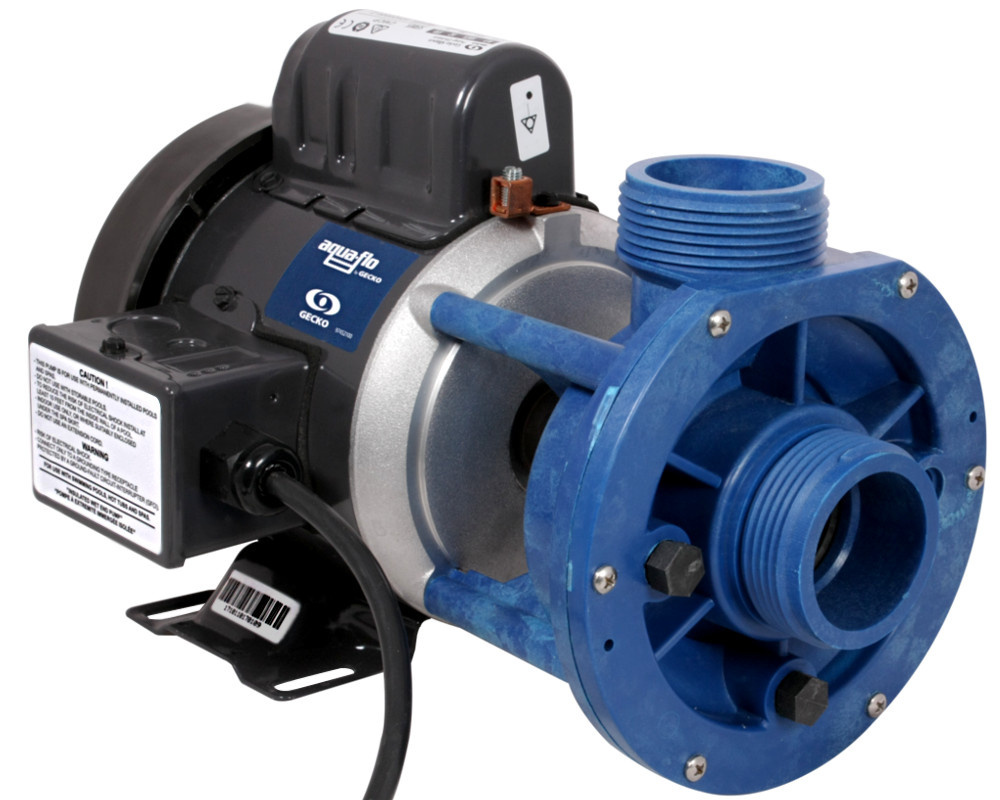

Aqua-Flo Circ-Master CP pump

In stock
429,00€
incl. 20% VAT
Quantity:
Aqua-Flo Circ-Master CP pump - Click to enlarge
Aqua-Flo Circ-Master CP pump - Click to enlarge
Aqua-Flo Circ-Master CP pump - Click to enlarge
Aqua-Flo Circ-Master CP pump - Click to enlarge
Aqua-Flo Circ-Master CP pump - Click to enlarge

The wet end of the Aqua-Flo Circ-Master CP (CMCP) pump has a return (outflow) that is centrally positioned, directly above the suction connection, unlike its cousin the Circ-Master HP (CMHP), which has a return to the side. Both pumps use the same motor: an Emerson US Motor 1/15 HP.

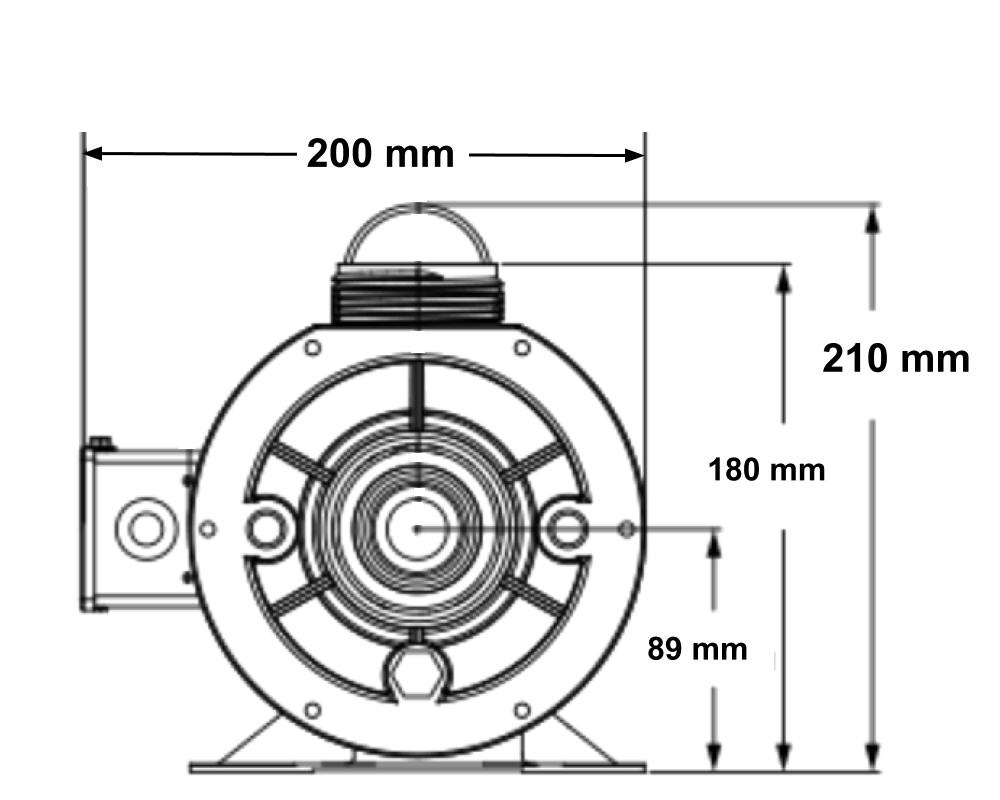

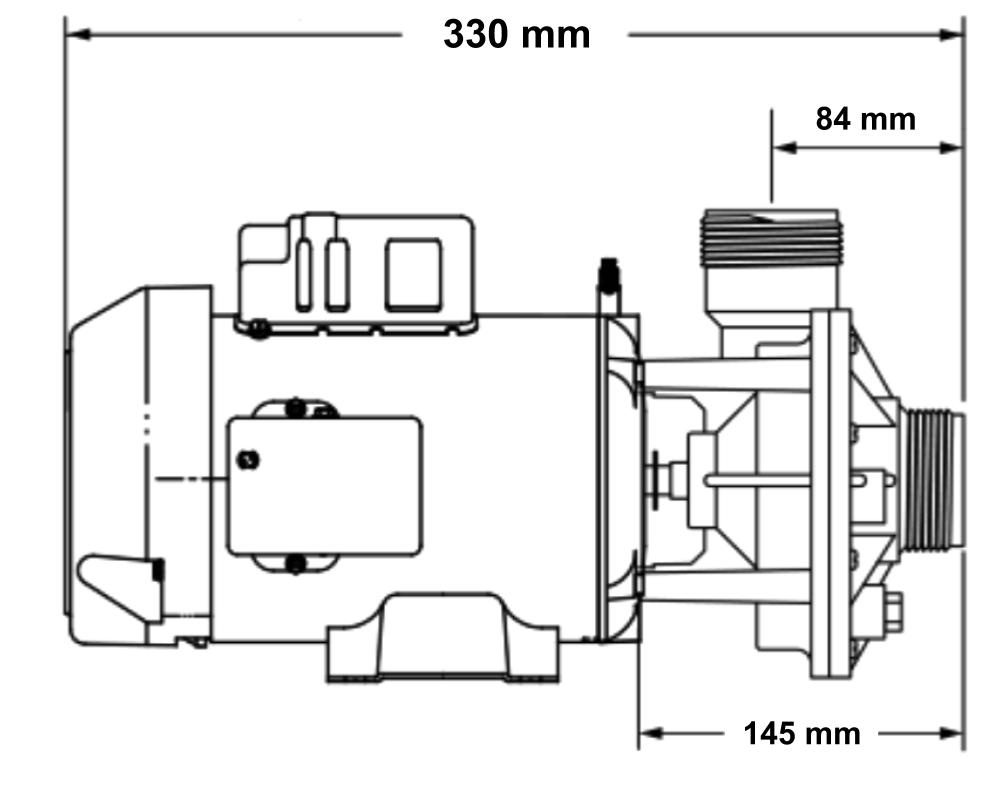

Dimensions
Length: 330 mm
Width: 200 mm
Height: 210 mm

Technical specifications

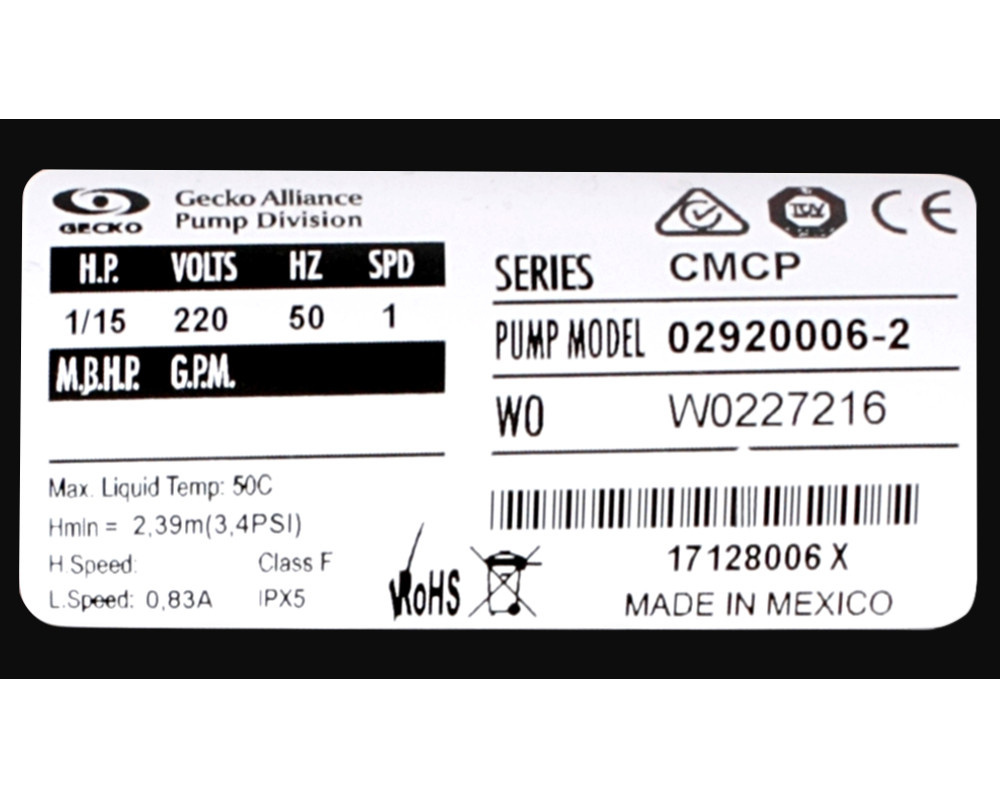

Power: Approximately 140W (1/15 HP according to the motor plate)
Speed: 1425 rpm
Maximum flow rate: 150 litres/minute

Pipe connections
Threaded male connectors with an outside diameter of 62 mm (1.5" MBT thread). Unions are available for 1,5" (48 mm) pipe.

Cable and plug
The pump is supplied pre-cabled with an AMP plug (length 210 cm). You can also have it pre-cabled by our team with a mini J&J plug.

Spare parts
We have a wide range of spare parts for this pump in stock.

Warranty
2-year Tubs Parts warranty

Part numbers
Aqua-Flo: 02593657-2, 02920006-2010 (CMCP)
Sunrise Spas: R5021352

This very popular pump is used by many brands of spas under different part numbers, listed below. Some models have been replaced over the years, resulting in a change in the design of the wet end and therefore the pipe connection. Check your pump to be replaced with this model, or contact us.

02093001-2010 02093001-2 02093002-2 02093003-2 02093004-2
02093006-2 02093012-2 Green 02093466-2 02093634-2 02093639-2
02093646-2 02093649-2 02093658-2 02093670-2 02093678-2
02093 02093695-2 02093759-2 02096281-2 02407670-2
02408492-2510 02410388-2 02410512-2 02410701-2 1-00-0204
14154 34-402-1140 6500-907 6000-907

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to right

Exit to right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
