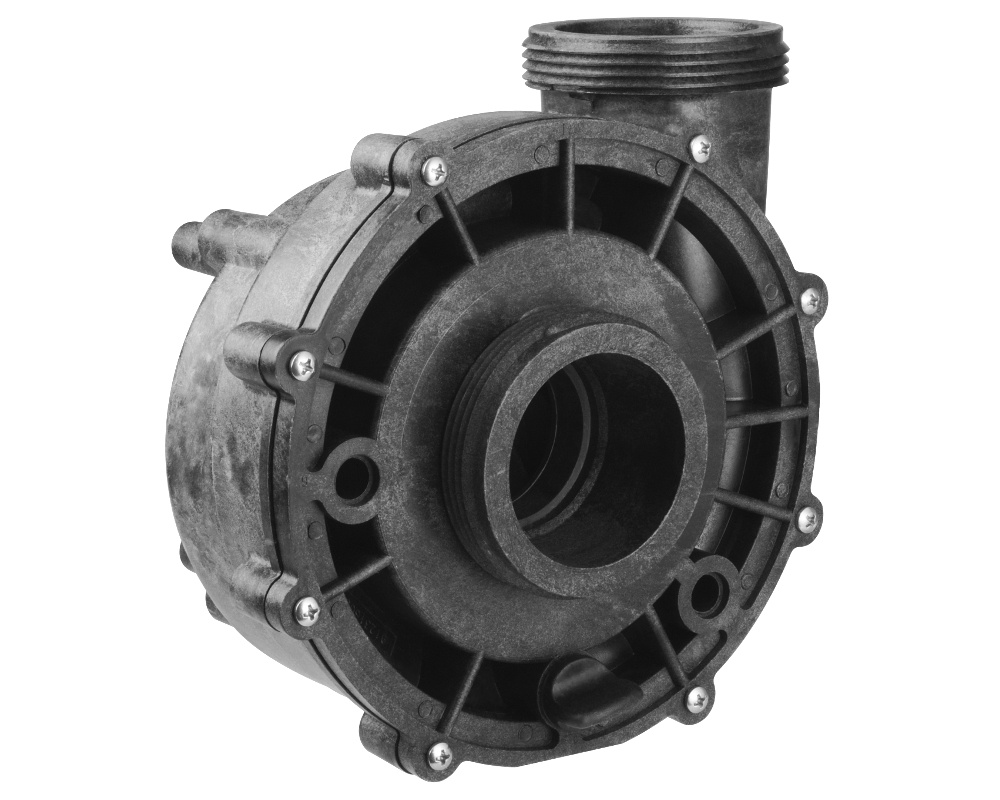

Aqua-Flo Circ-Master XP wet end, 48 frame

This wet end fits the Gecko's Aqua-Flo Circ-Master XP pump. The wet end is complete with its 2.5 HP impeller, its wet end seal, plugs and gaskets, so all you need is a motor.

Dimensions

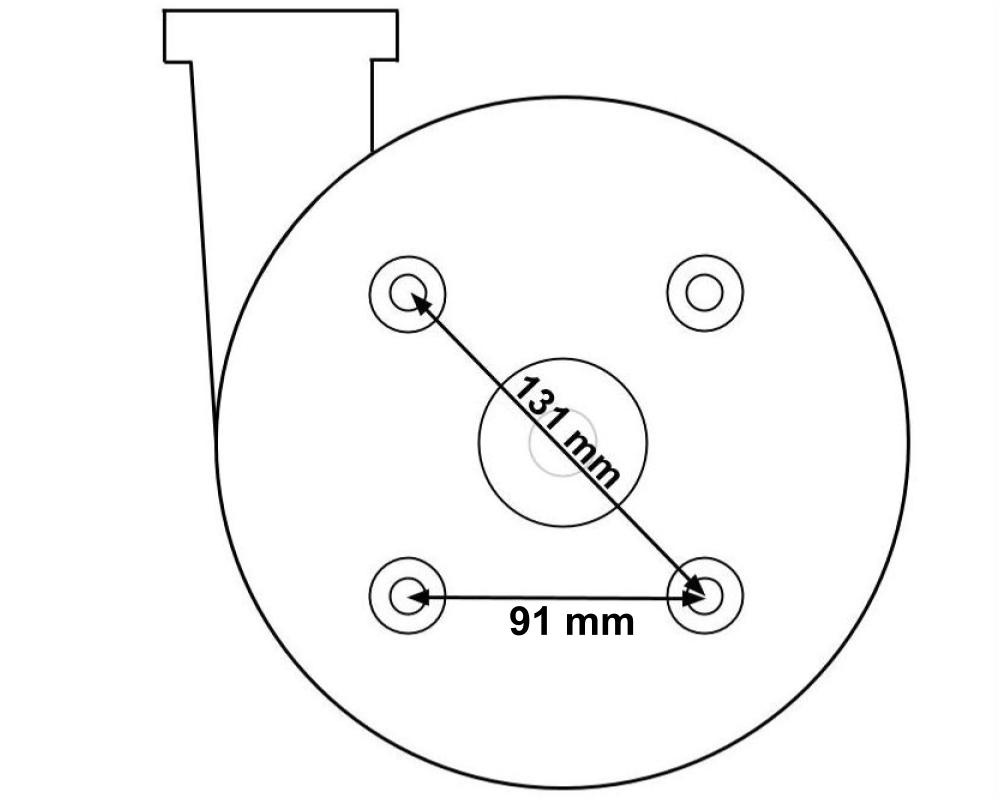

See schematic drawing

Connections
Discharge and suction: 2-inch MBT with an external diameter of 78 mm.
This pump connects to 2-inch pipes. Unions for other pipe sizes are also available.

Part numbers
Aqua-Flo / Gecko : 91041611-120
