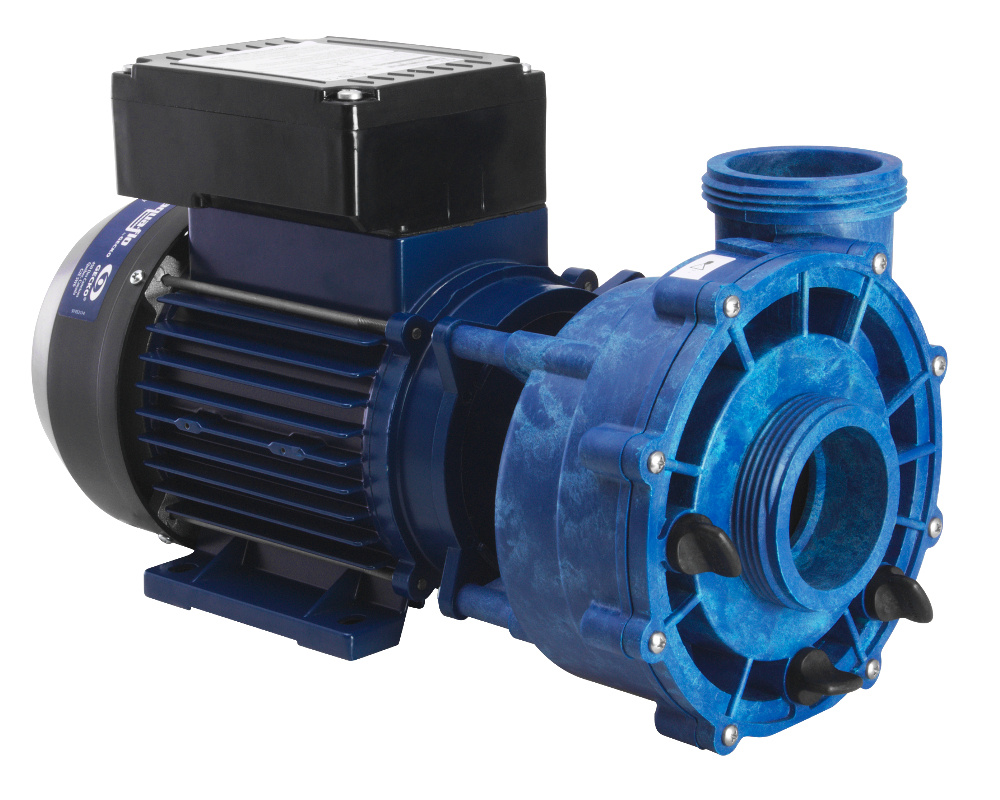

Aqua-Flo Flo-Master XP2e single-speed pump

The Aqua-Flo Flo-Master XP2e pump (also sometimes sold under the Gecko brand) has the same dimensions as the XP2. It has a 2.2 kW motor, and is referred to as a 3HP pump by the manufacturer. The 1.5HP, 2HP and 2.5HP versions of the XP2e are no longer manufactured, and have been replaced by the XP2.

The Aqua-Flo XP2e pump is also a perfect replacement for Theramax pumps.

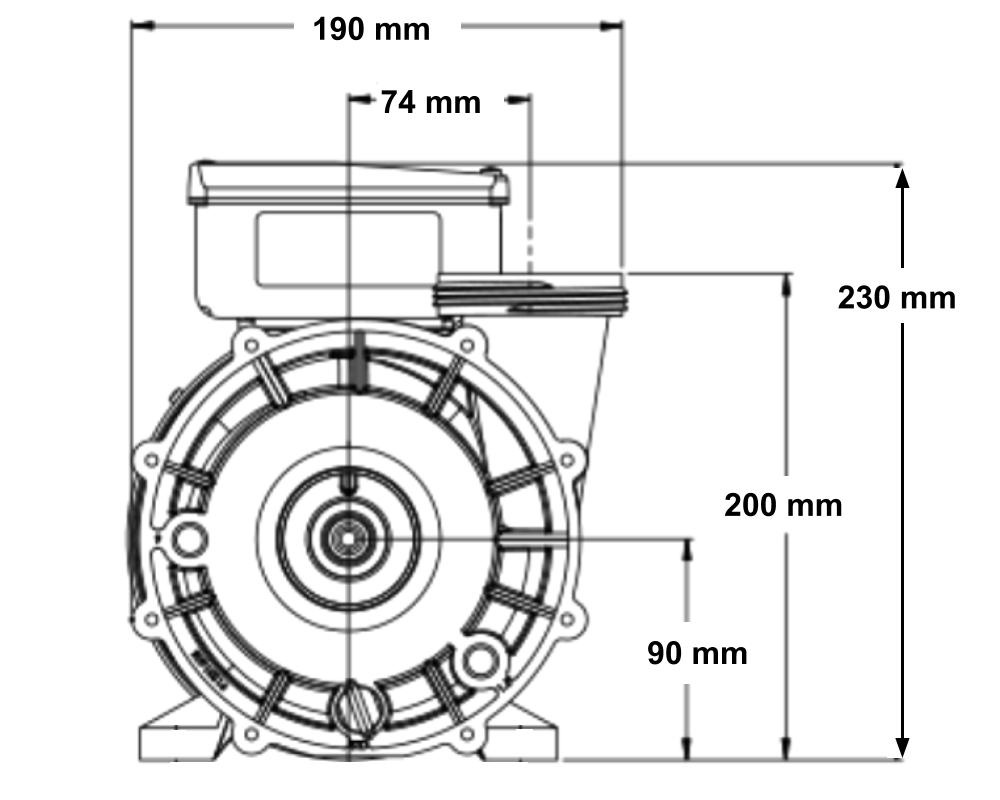

Dimensions
Length: 380 mm
Width: 190 mm
Height: 230 mm

Technical specifications
Power: 2.2 kW, or 3.0 HP
Current: 11.8 A

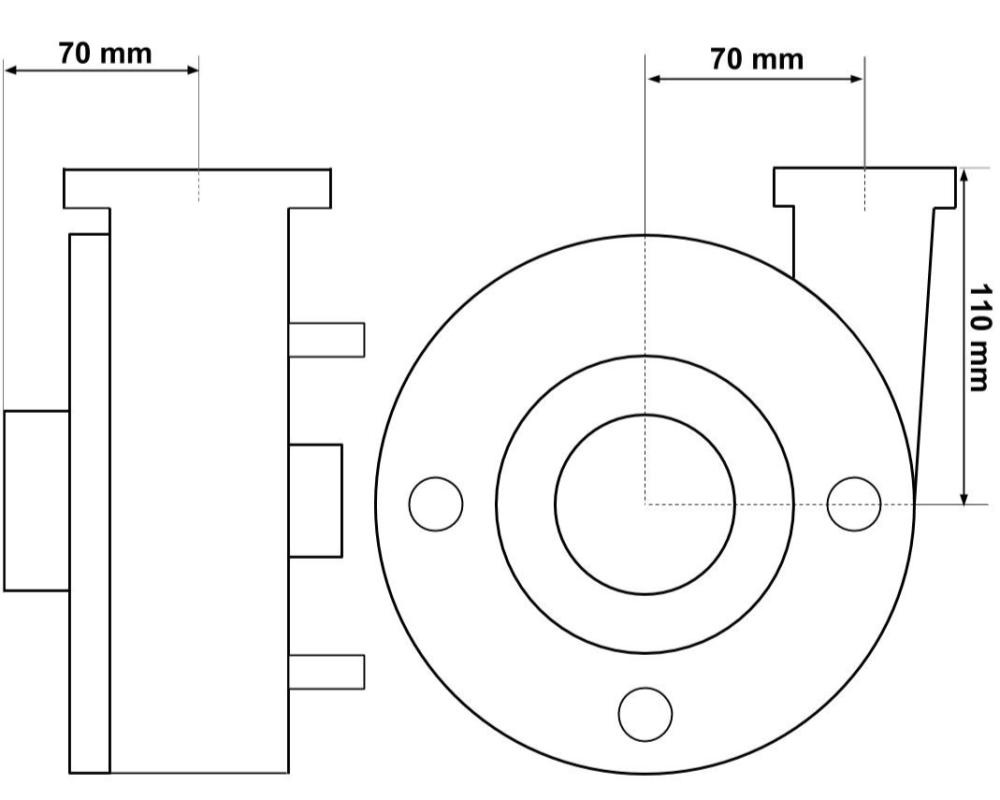

Pipe connections
Male thread (2-inch MBT) with a 78 mm outside diameter.
This pump is supplied with pump unions for 2-inch pipes. You can also choose pump unions for 1.5-inch pipes or 63 mm pipes.

Cable and plug
The Aqua-Flo Flo-Master XP2e pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Gecko part numbers
2,2 kW (3 HP): 05253000-6040
1,8 kW (2,5 HP): 07044000-6040
1,5 kW (2 HP): 07030003-6040
The XP2e is a good option to replace several different older models, including several Theramax pumps.
