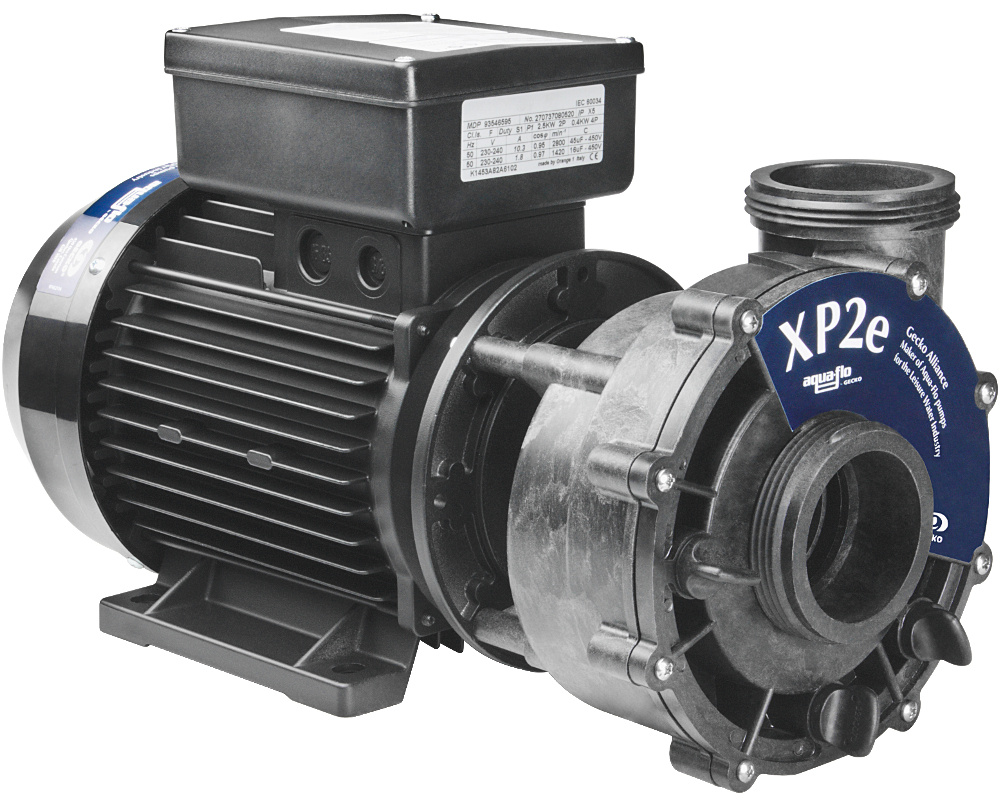

Aqua-Flo Flo-Master XP2e 2-speed pump

The Aqua-Flo Flo-Master XP2e pump (also sometimes sold under the Gecko brand) has the same dimensions as its predecessor, the XP2.

This model is a two-speed pump, used for circulation and heating on low speed, and for massage jets on high speed.

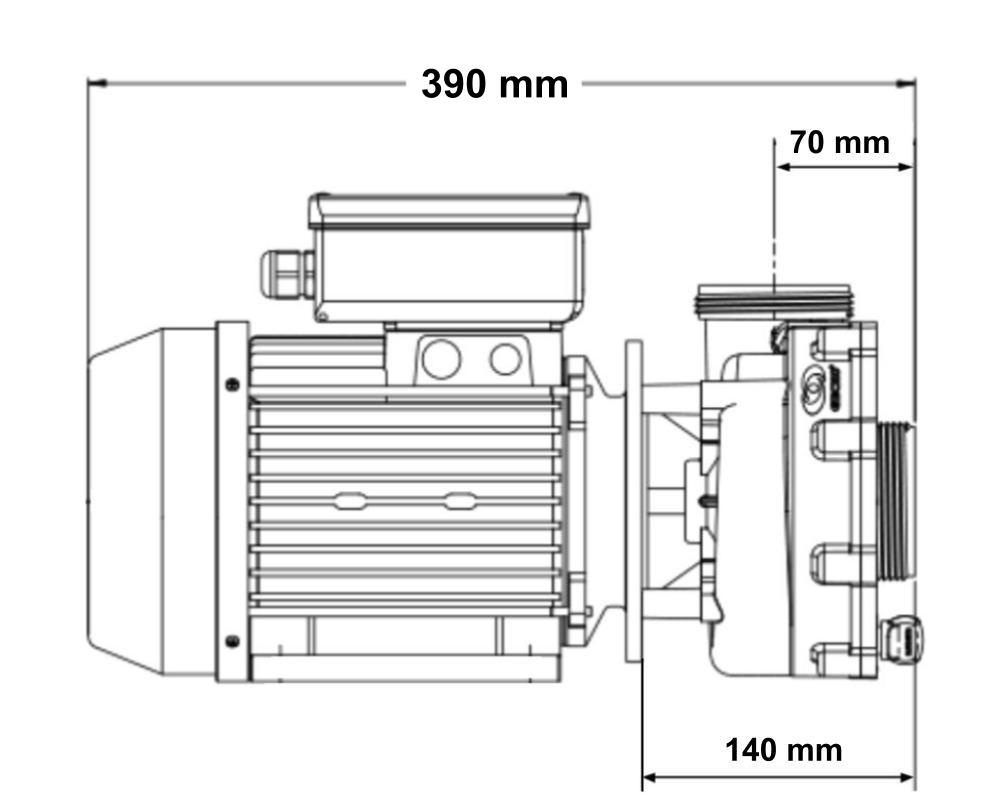

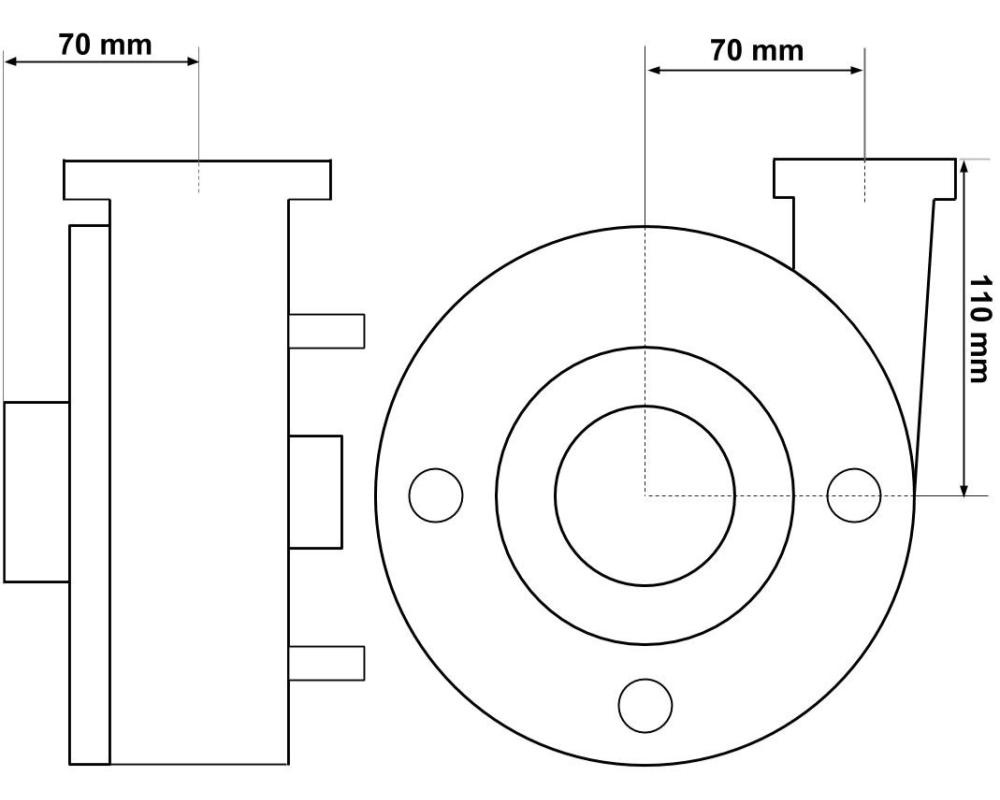

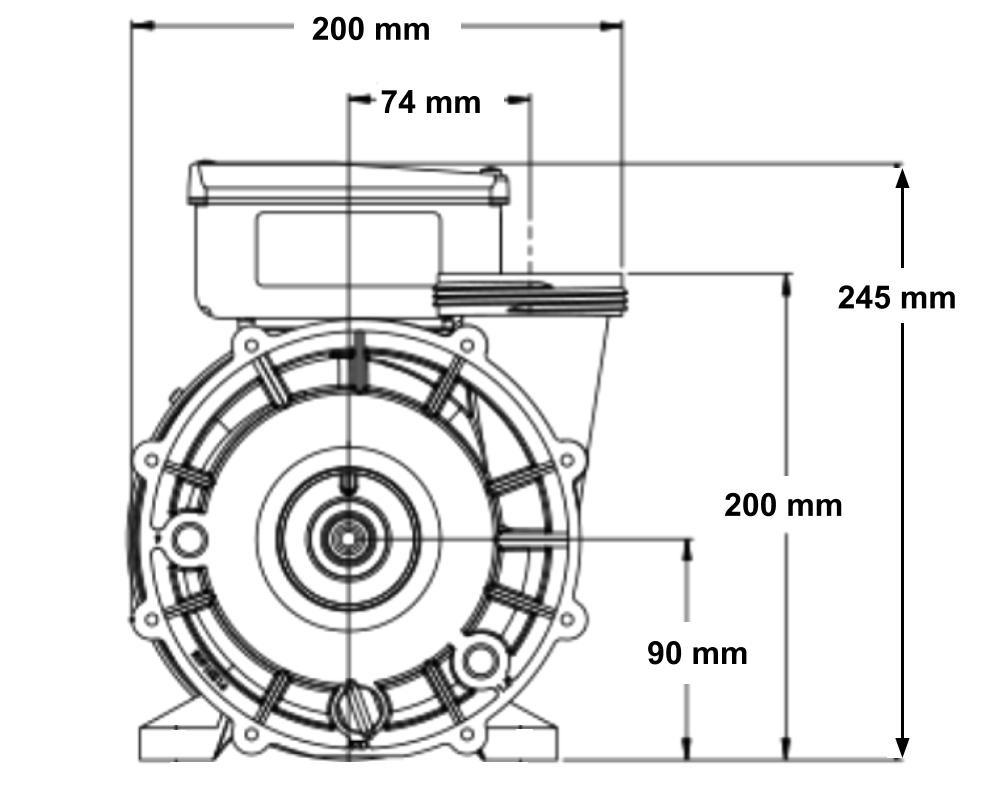

Dimensions
Length: 390 mm
Height: 245 mm
Width: 200 mm
Plumbing connections: 2" MBT thread (outside diameter of 78 mm). Connectors are available as an optional extra.

Technical specifications
The XP2e pump is available in two versions:
1.5 HP: 1,5 kW high speed, 0,36 kW low speed
2.0 HP: 1,9 kW high speed, 0,4 kW low speed

The 2.5 HP version is no longer manufactured by Gecko. It has been replaced by the Maelstrom MS-1 model.

Connections
2" MBT thread (78 mm outside diameter), for 2-inch pipes

Cable and plug
The Flo-Master XP2e pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug, a mini J&J plug or an in.link plug (100 cm long).

Other spare parts
We offer a wide range of spare parts of the Aqua-Flo Flo-Master XP2e pump.

Warranty
2-year Tubs Parts warranty

Gecko part numbers
1.5 HP: 05320010-6340
2 HP: 05340004-6340
2.5 HP: 05351009-6040 (no longer sold)
Marquis Spa: 630-6122 (2 HP)
