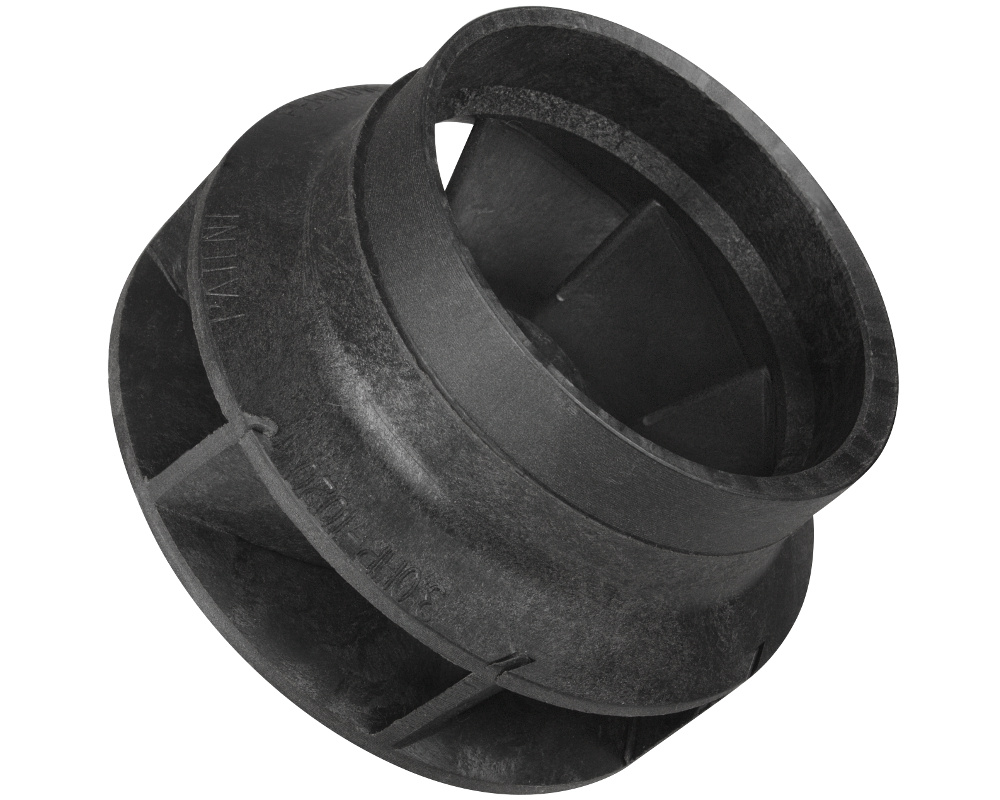

Aqua-Flo Flo-Master XP3 impeller

This impeller is used in the XP3 wet end by Aqua-Flo Flo-Master. There are four versions available. You can usually tell which is which by the small colored dots on the shaft of the impeller.

We strongly suggest that you replace the wet end seal at the same time as the impeller.

This impeller doesn't work with other Aqua-Flo pumps.

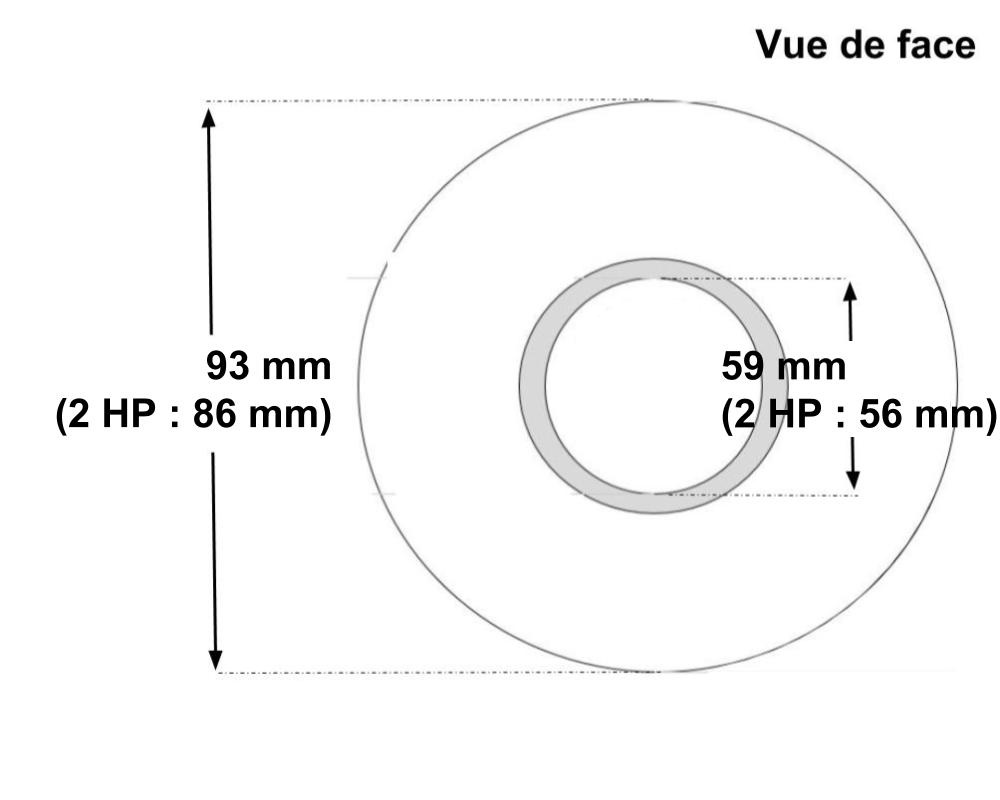

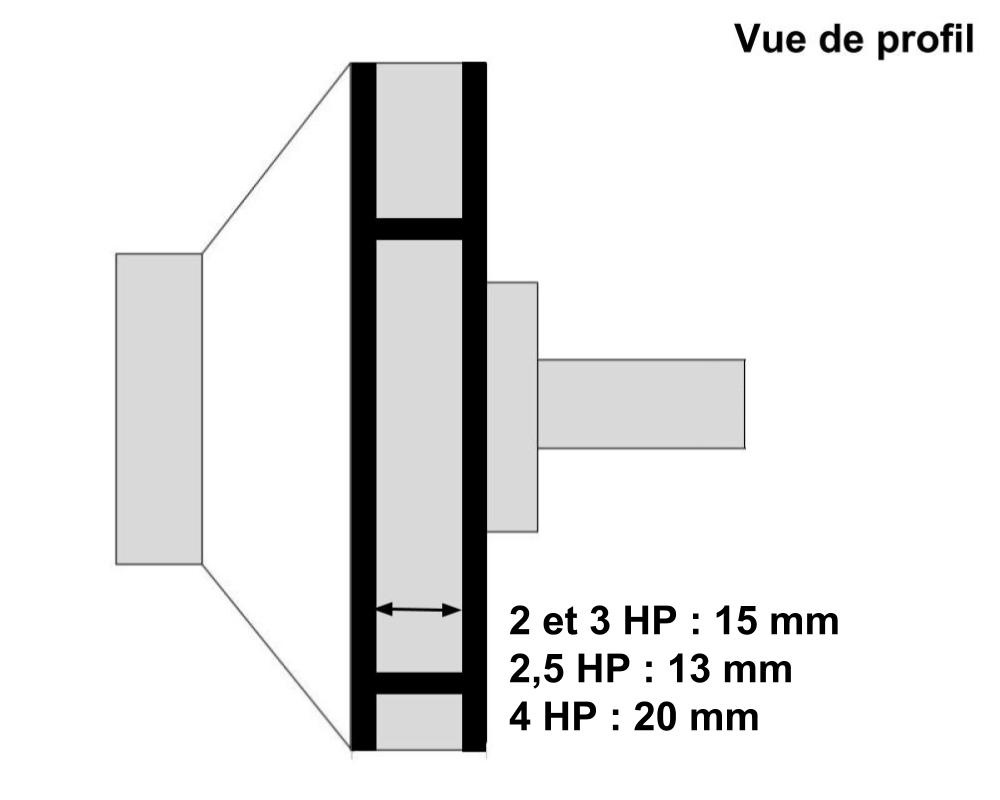

Dimensions
See the image.

Aqua-Flo part numbers
2.0 HP: 91698200 - three dots: red, orange and blue
2.5 HP: 91698250 - one red dot
3.0 HP: 91698300 - two dots: red and orange
4.0 HP: 91698400 - two dots: green and red
