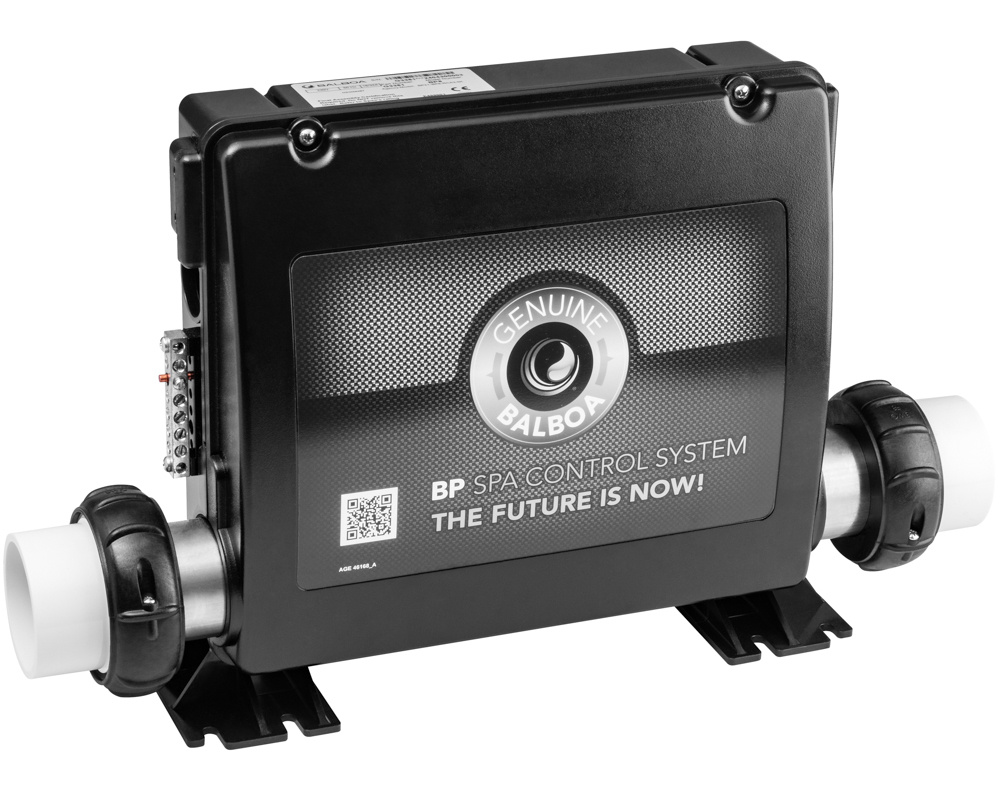

Balboa BP8 control system
The Balboa BP8 control system makes a perfect solution for upgrading your spa, if you want to replace your old electronic system.

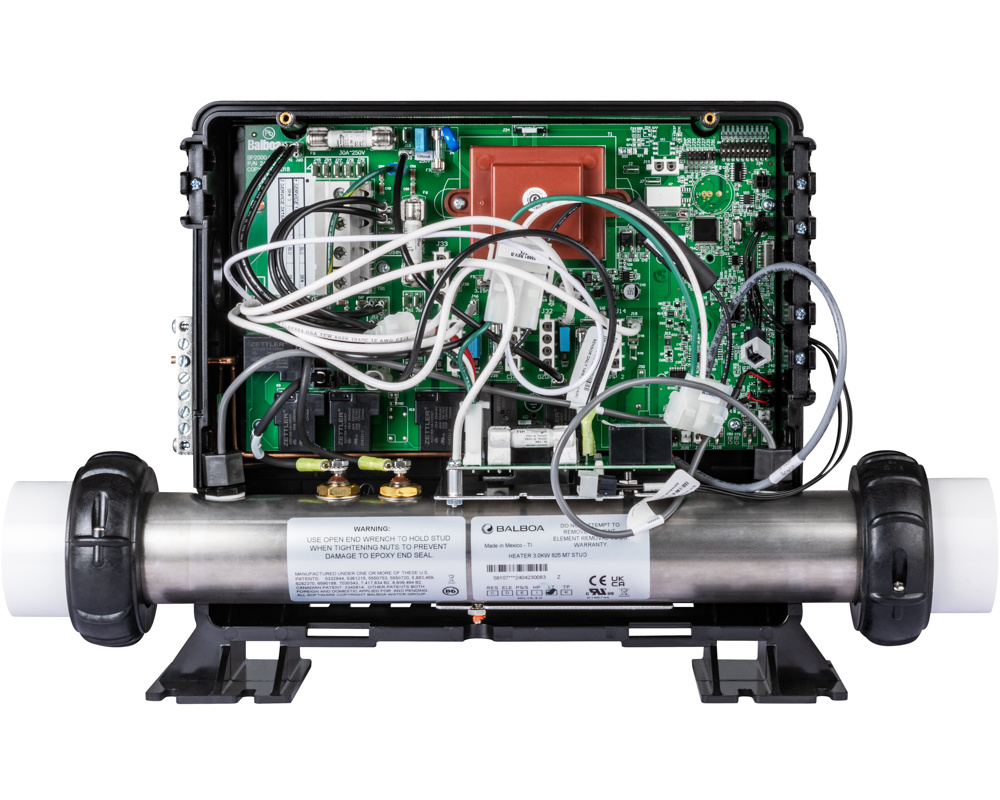

Fitted with a built-in 3 kW Incoloy heater, the BP8 is able to manage :
- Circulation pump
- Pump 1 which can be either single-speed or two speed
- Pump 2 single-speed
- Pump 3 single-speed
- Blower
- Ozonator
- Underwater light
Height: 310 mm
Length of heater: 330 mm, without fittings
Length of heater: 430 mm, with fittings
Depth: 125 mm
Heater connection: 2-inch (clamping rings and gaskets supplied)
Compatible with the following keyboards
All the TP series keyboards (TP400W, TP400T, TP500, TP500S, TP600, TP700, TP800 and TP900, spaTouch rectangular, oval, spaTouch 2, spaTouch 3, spaTouch 3+) and spaTouch 4.
Power supply
The BP6013G3 system is delivered pre-configured for a single-phase power supply. It can also be configured with a three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Control box : G3381
Expansion kit only : 30893
Heater only : 58279
