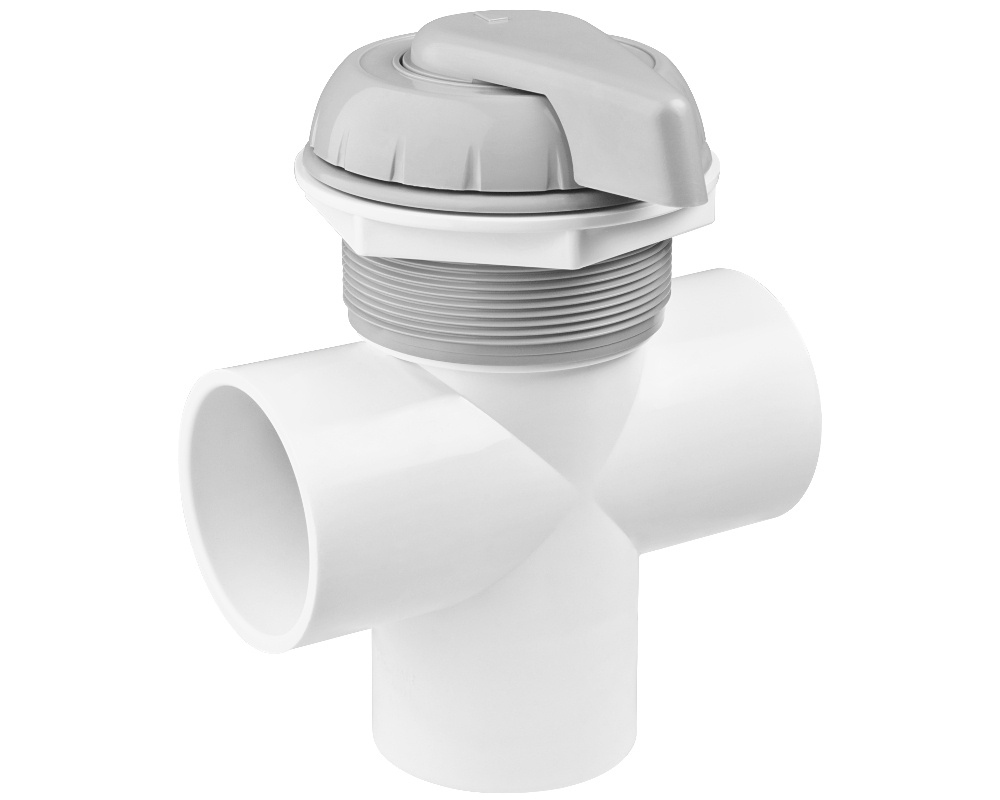

Balboa HydroAir 2" Hydroflow diverter valve

This Balboa / HydroAir diverter valve connects to 2-inch pipes, and is used to adjust the intensity of water coming out of different groups of jets.

It is used on Hydropool spas (sold by Clair Azur), among others.

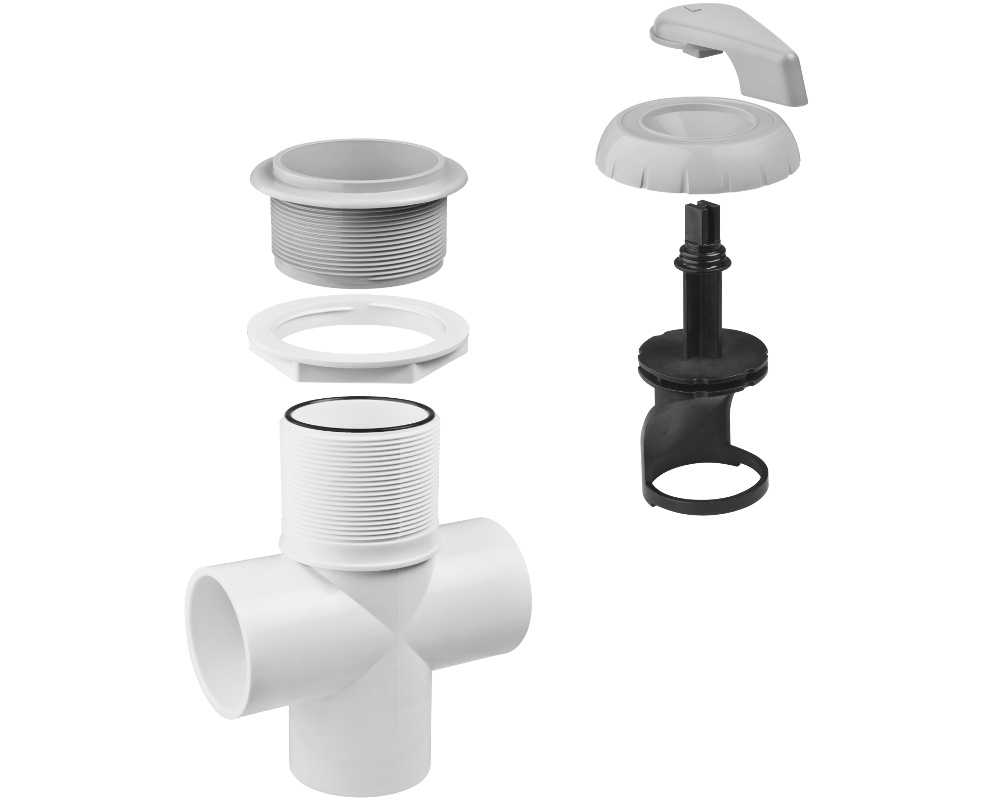

The diverter valve rotor is available separately.

We also offer another HydroAir model with an identical body but a grey handle.

Dimensions
Drill diameter: 80 mm
Total length: 190 mm
Face diameter: 94 mm
Inner diameter of the white tee: 60 mm, for 2-inch pipes
Top diameter (where the cap screws on) : 71 mm

Part numbers
Balboa / HydroAir : 11-4000, 11-4000GRY
