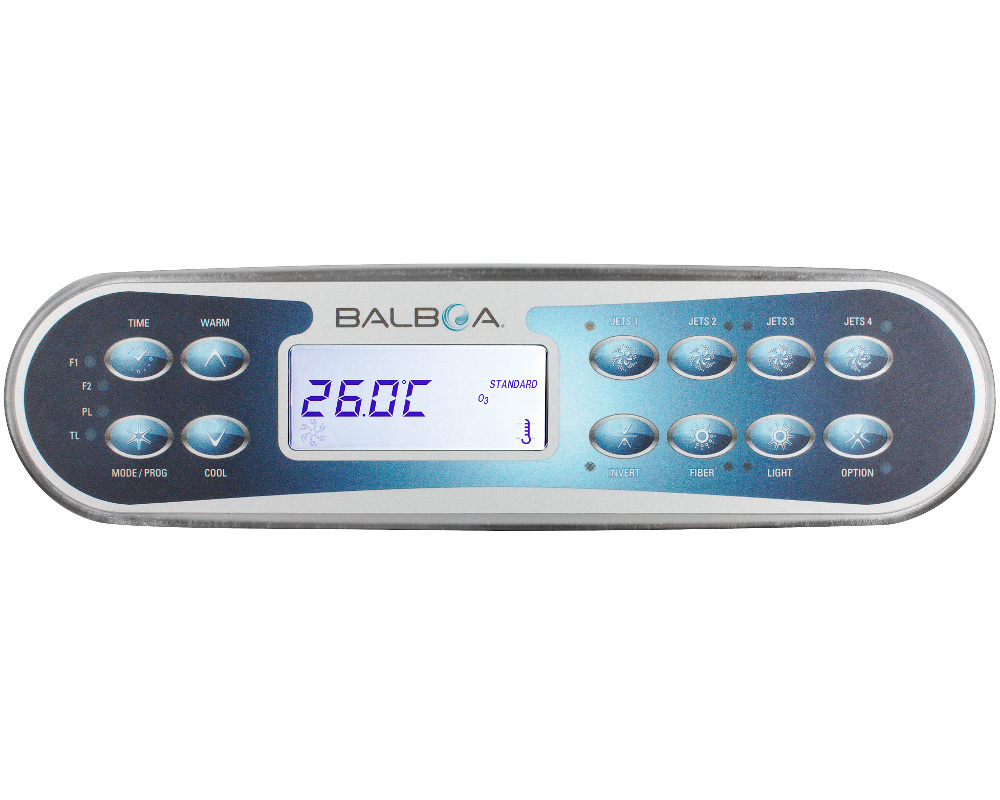

Balboa ML900 control panel

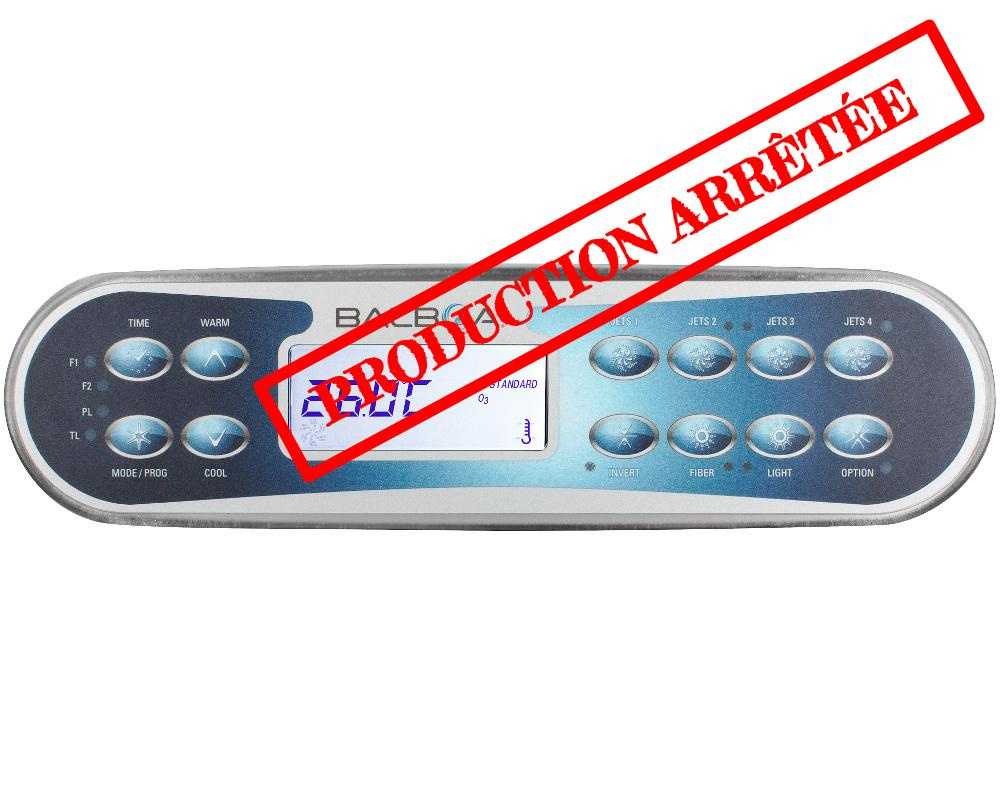

The ML900 is no longer manufactured by Balboa.

This 12-button keypad is compatible with Balboa's GL2000 M3, GL2001 M3, GL8000 M3 and GL84P control systems and can operate up to 3 pumps plus a blower.

It also has buttons for spa lights, for inverting the display (so that it can be read from both inside and outside the spa), for setting the temperature and for programming.

The buttons are:

• Time
• Warm
• Mode/Prog
• Cool
• Jets 1
• Jets 2
• Jets 3
• Jets 4
• Invert
• Fiber
• Light
• Option

Dimensions
Keypad: 297 x 81.5 mm
Cut out area : 255 x 55 mm
Cable: 2 m
See the type of plug in the photo.

Balboa part numbers
Keypad with overlay: 54589
Keypad without overlay: 52797
Overlay : 11806
