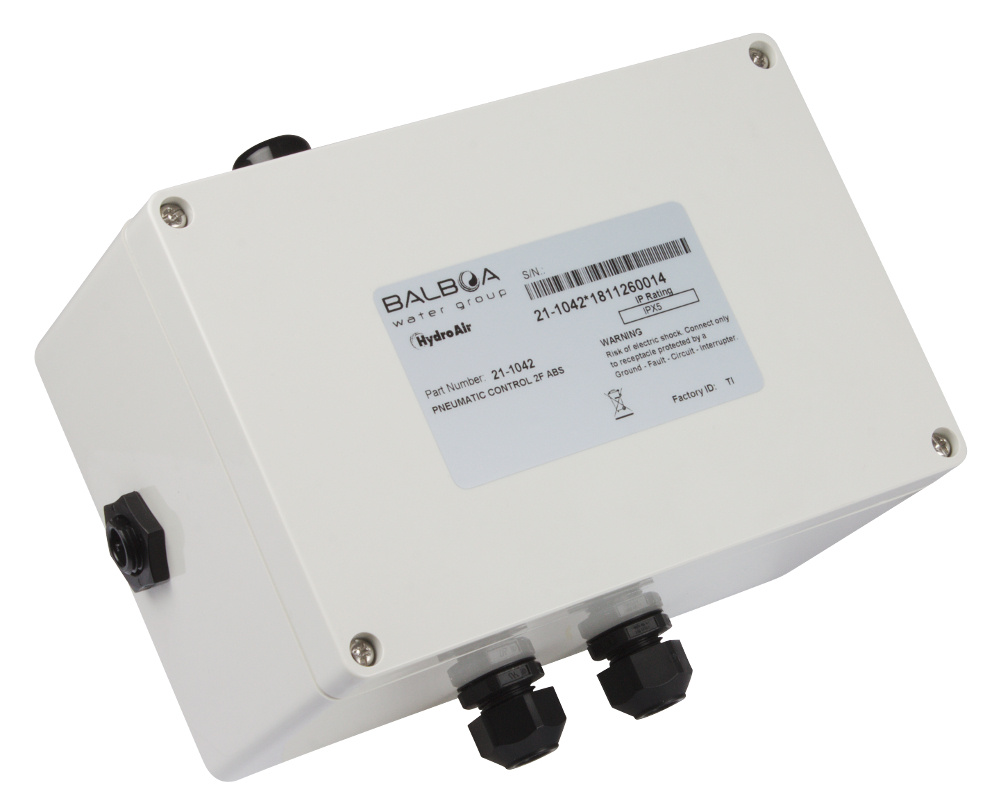

Balboa pneumatic control box with 2 functions
This Balboa box has two latching air switches, and is ideal if you are looking for a simple and safe spa-side system to manage two components of your spa, such as a pump and a blower. Just use some pneumatic tube to connect a button to each switch, pass the wiring of your eqipment through the swith and you are ready to go! One press will turn the equipment on, and a second press will turn it off.

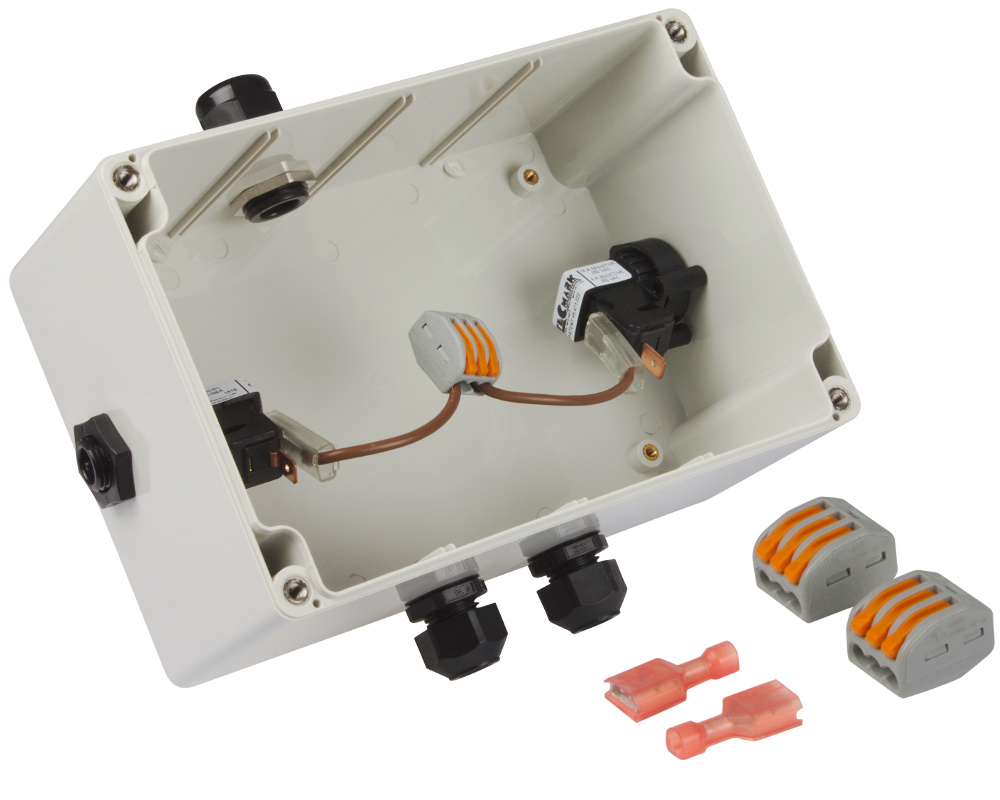

In addition to two air switches, the box contains a gasket, three cable glands and three Wago terminal blocks.
We also offer this box with a single air switch instead of two.
Dimensions
Length: 140 mm
Width: 80 mm
Depth: 65 mm
Technical specifications
Rated voltage: 230V, 50/60 Hz, 1 phase
Rated current on each switch: 16A Resistive or 4A Inductive
Ingress prot. front: IPX5
Part numbers
Balboa: 21-1042
Air switch (x2): 41-0255, TBS106A
