Balboa spaTouch Mini control panel

In stock
390,00€
incl. 20% VAT
Quantity:
Balboa spaTouch Mini control panel - Click to enlarge
Balboa spaTouch Mini control panel - Click to enlarge
Balboa spaTouch Mini control panel - Click to enlarge

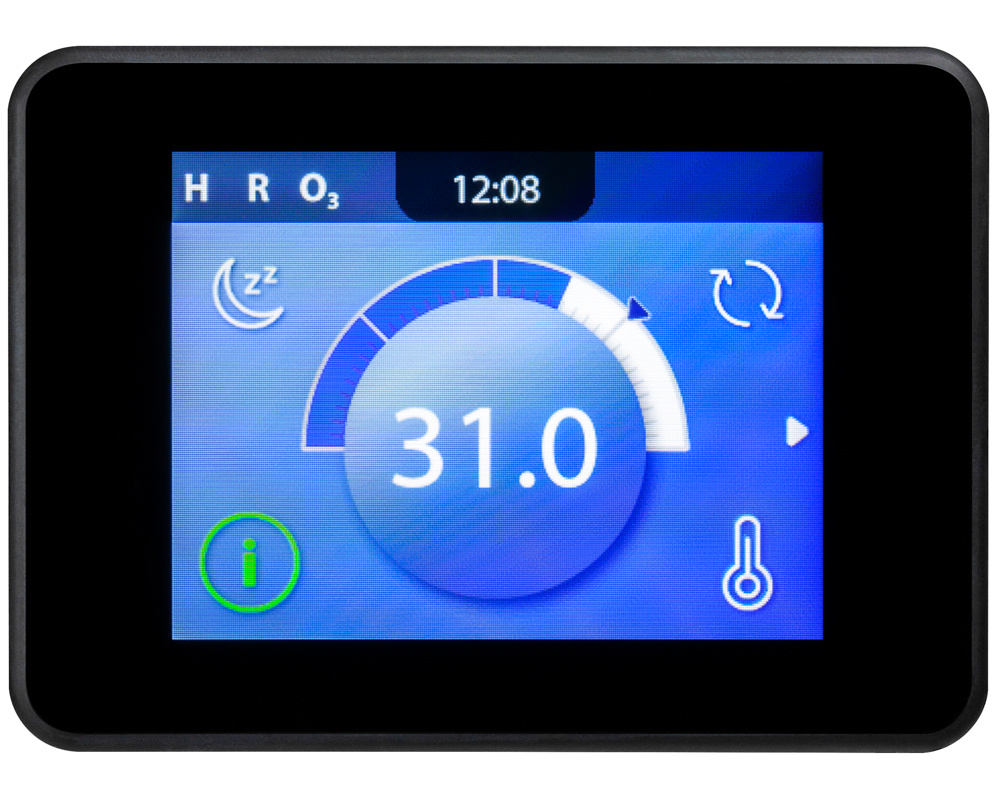

Compatible with the Clim8zone and Clim8zone II heat pumps, Balboa's spaTouch Mini is the smallest keypad in the spaTouch series. Its compact size makes it easy to install almost anywhere around the spa.

Featuring a 4" color touchscreen, it is compatible with all BP series control systems (BP200G1, G2 and G3, BP200UX, BP600, BP6013G1, 3G2 and 3G3, and BP2100 G1, G2 and G3) with software versions 7.0 and higher.

The spaTouch Mini can be used as a main keyboard, and is the perfect solution for replacing all TP series keyboards, especially those no longer on the market (TP800 or TP900). It can also be used as an auxiliary keypad alongside another spaTouch or an existing TP keypad.

The spaTouch Mini's touchscreen, with its water friendly capacitive touch, offers easy, fluid navigation and lets you control your entire spa: filtration, heating, Clim8zone or Clim8zone II, Chromazon3 and bba3, among others. In particular, "Tap to Wake" allows you to instantly activate the screen whenever you want with three quick presses, making it highly unlikely that you'll activate the screen by splashing water.

Dimensions
Length: 87 mm
Screen: mm ( ")
Width: 62 mm
Thickness (screen): mm
Depth: mm
Shell drilling area: Diameter 51 mm

Warranty
2 years Tubs Parts warranty

Part numbers
Baboa : 57380, TS-ST380

Documentation
