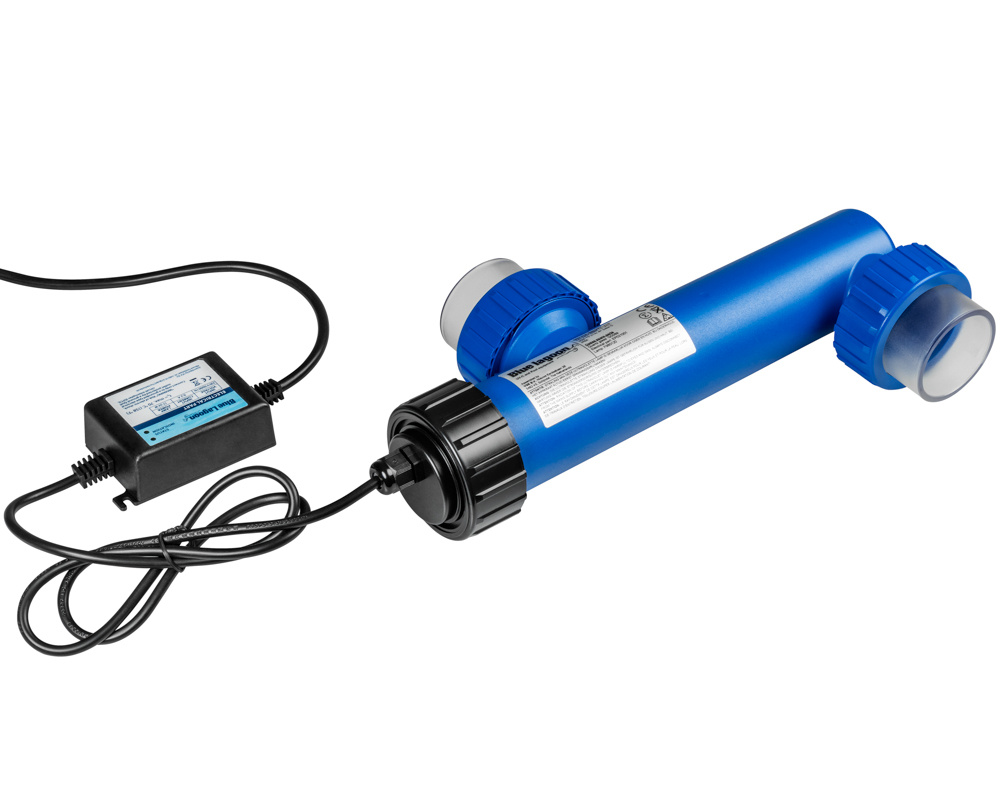

Blue Lagoon 21W UV-C disinfection system

This system has been specially developed by Blue Lagoon and is ideal for water temperatures up to 40 degrees Celsius. The Blue Lagoon Spa UV-C disinfection system uses UV-C radiation to disinfect water, by killing bacteria and neutralising viruses. This device is a effective disinfectant but does cannot fully replace chemical sanitation products.

This kit includes the Blue Lagoon UV-C unit, couplings and seals, power cord and instructions. Replacement bulbs are available as a spare part.

This device must be installed vertically, with the water entry at the bottom and the electrical connection at the top.

Technical specifications
Power consumption: 21 W
Maximum pressure: 1 bar
Maximum flow rate: 12960 litres/hour (cannot be used with a two-speed filtration pump)
Life of lamp: 9,000 hours
Weight: 1.9 Kg

Dimensions
Length: 400 mm
Width: 200 mm
Pipe connections: two sizes of female fittings are supplied with the lamp, for 50 mm or 1.5-inch (48 mm) pipes. This system is also seen connected to pipes 0.75 inches, particularly in 4SeasonsSpa brand spas. To use this size of hose, use a reducers.

Cable and plug
The Blue Lagoon disinfection system is supplied pre-cabled with a male plug. You can also choose to have the pump pre-cabled by our team with an AMP plug.

Part numbers
Blue Lagoon Spa: BE01212
