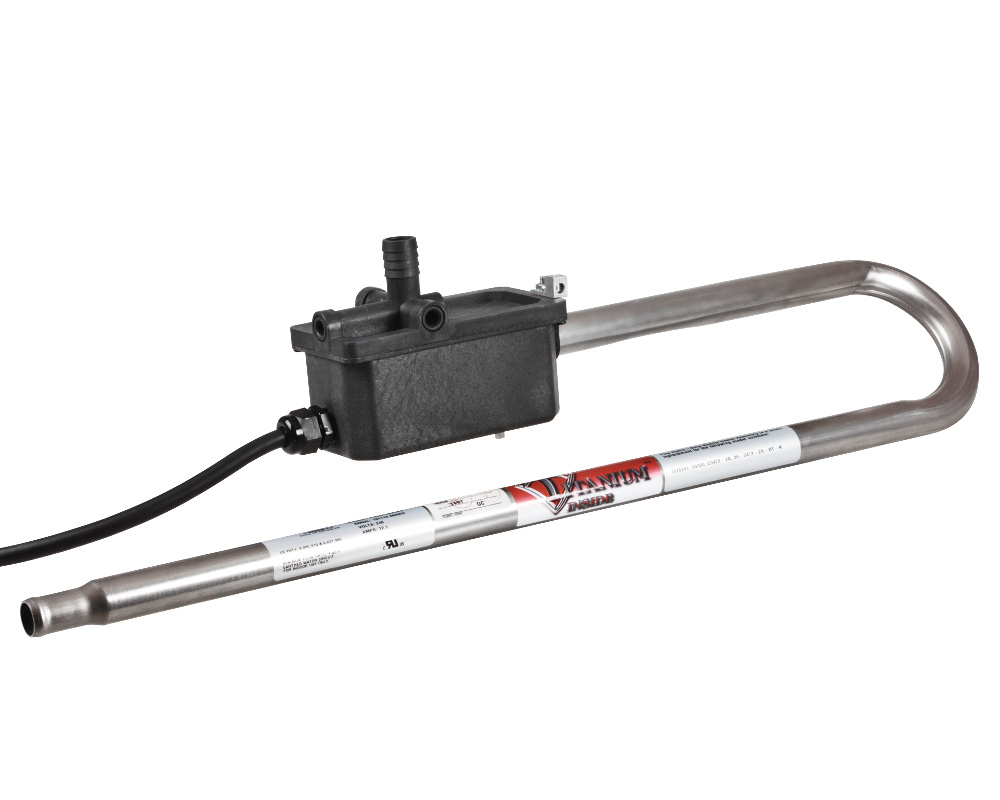

Caldera HotSpring heater - 1076701

This 2.9 kW heater can be found on HotSpring and Caldera Spas (both manufactured by Watkins), as well as Jacuzzi and Sundance Spas hot tubs.

It is equipped with a titanium heater and a hi-limit sensor (overheat detection). A clamping collar is included. Remember to add a 3/4-inch hose if necessary!

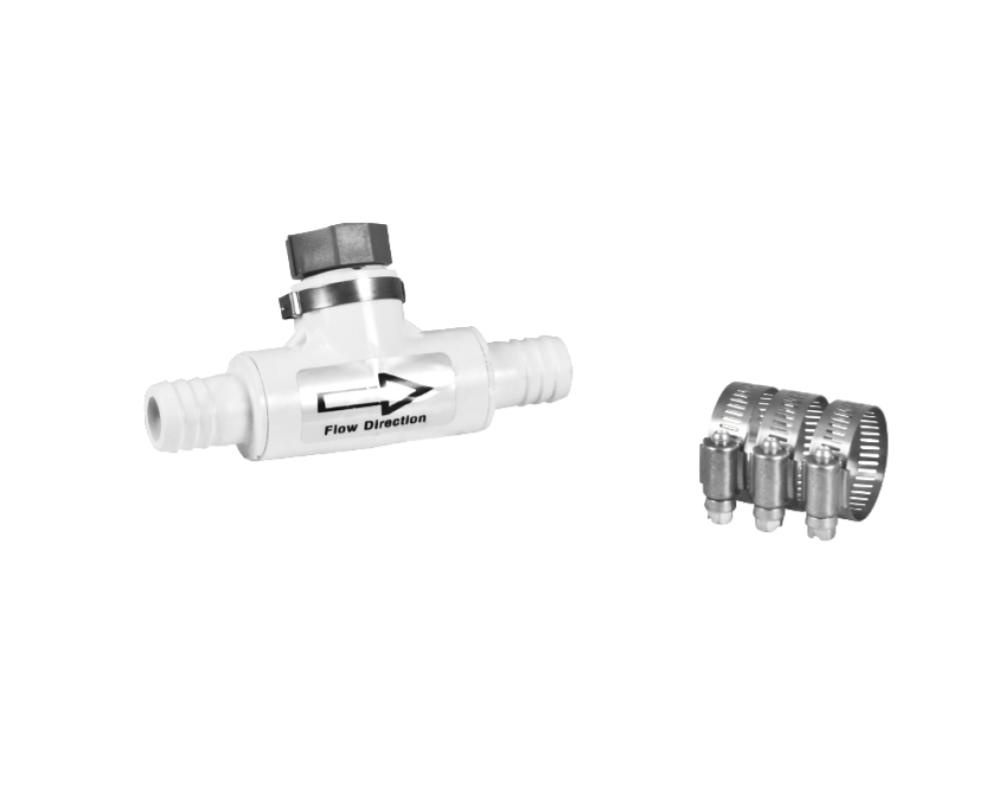

The heater is also supplied with a flow switch kit which includes a straight flow switch (fitted with a 1 meter long cable and a 3-pin connector) and two clamping collars.

It is manufactured by Balboa, and replaces a similar model from Therm Core / Therm Products.

Dimensions
Long length: 675 mm
Small length: 455 mm
Width: 175 mm
Distance between short and long sides: 90 mm
Cable length: 50 cm

Technical specifications
Power: 2.9 kW
Power supply: 240V 50Hz
Current: 12.1A
Maximum pressure: 2 bar

Part numbers
Caldera / Watkins: 1076701
Balboa: 58320
Therm Products: C3264-2A
Laing: 26-3472-2H-DT-F
