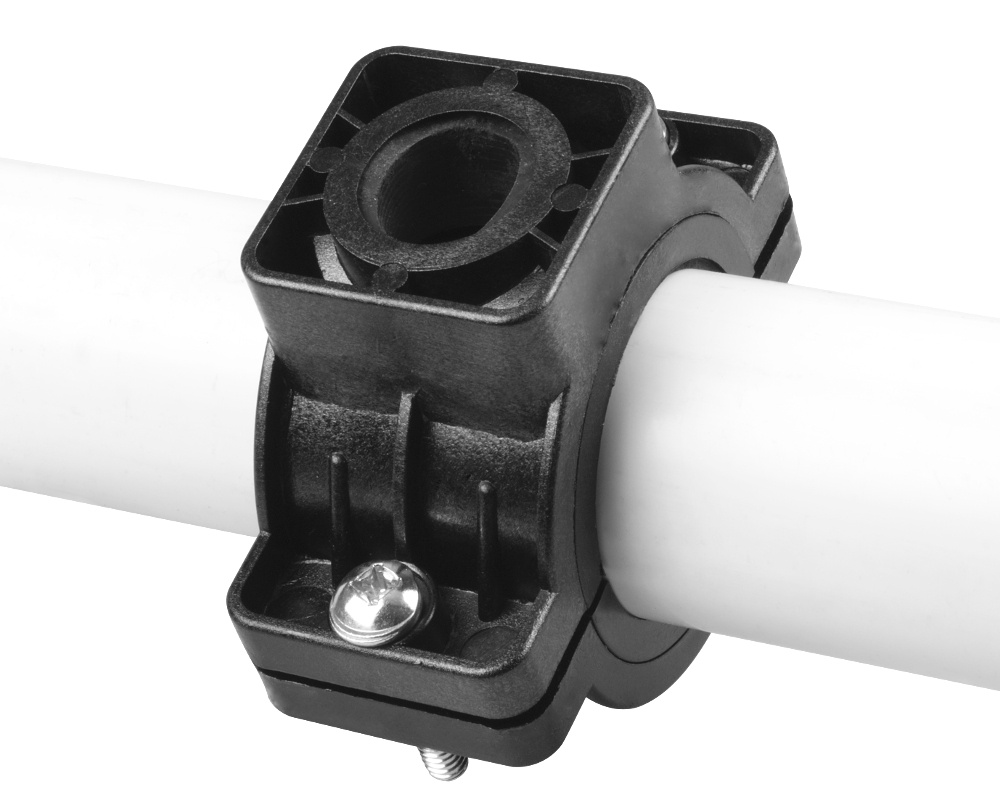

Certikin saddle clamp with 3/4" exit

Only 1 in stock
45,00€
incl. 20% VAT
Quantity:
Certikin saddle clamp with 3/4" exit - Click to enlarge
Certikin saddle clamp with 3/4" exit - Click to enlarge
Certikin saddle clamp with 3/4" exit - Click to enlarge
Certikin saddle clamp with 3/4" exit - Click to enlarge

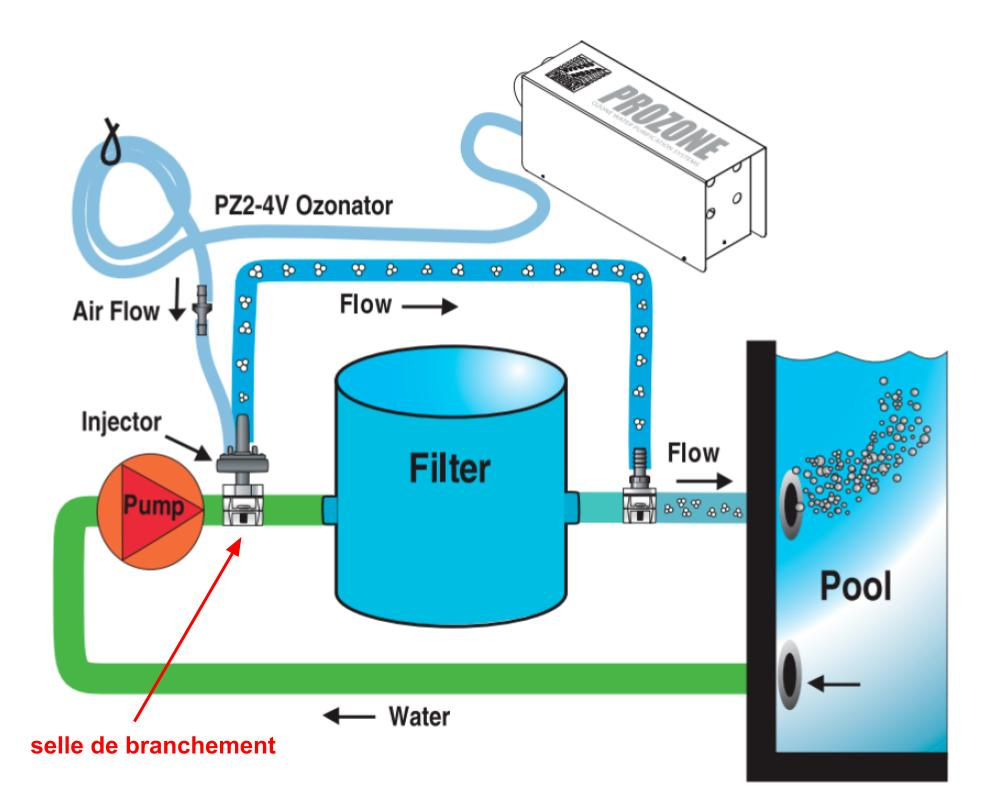

This saddle clamp was originally designed for the installation of a Prozone ozone generator (see picture 2), but it is compatible with many other brands. It fits on a rigid 2-inch pipe and can, thanks to two spacers, fit on a 1.5-inch pipe. The opening has a fat rubber gasket, into which you can slide an ozone injector.

Picture 3 shows the saddle clamp mounted on a 1.5-inch rigid tube (sold separately).

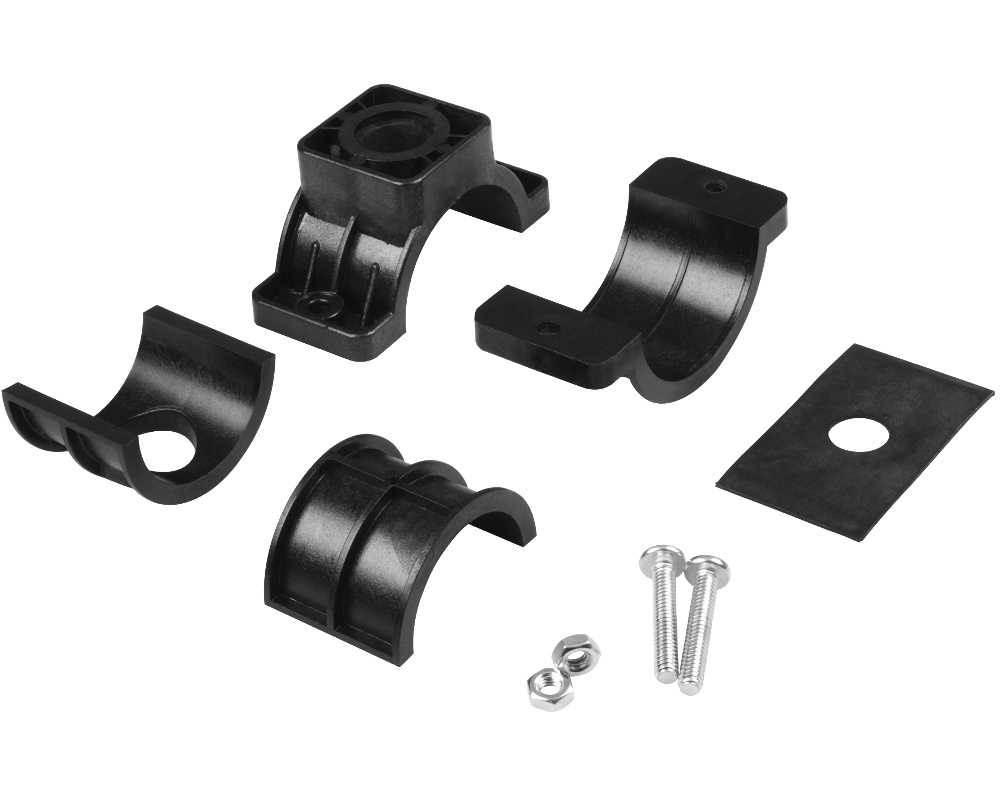

The kit includes: both saddle parts, two curved spacers for 1.5-inch pipe, a round rubber gasket, two screws, two nuts and a rubber flat gasket to be placed against the pipe.

Dimensions
Saddle clamp: 100 x 83 mm
Flat gasket: 76 x 44 mm

Part numbers
Certikin : SPPZ70
