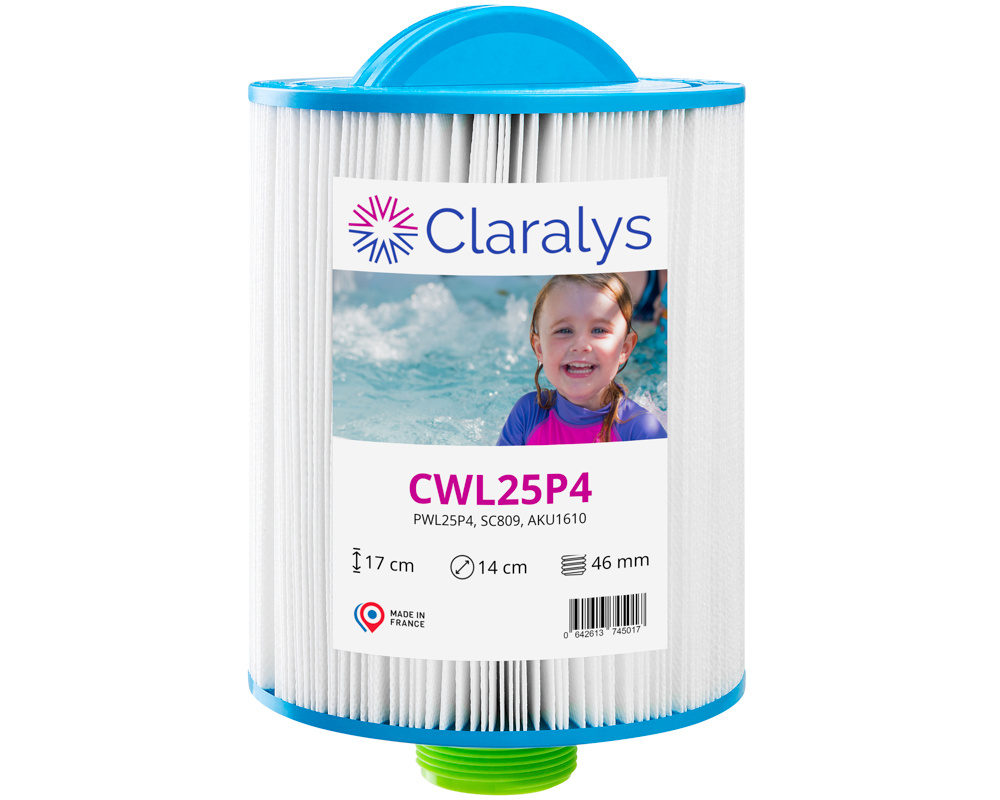

Claralys CWL25P4 filter

The Claralys CWL25P4 filter is compatible with the PWL25P4 model. It is also available in a box of 6 !

Dimensions
Diameter: 143 mm
Length: 174 mm

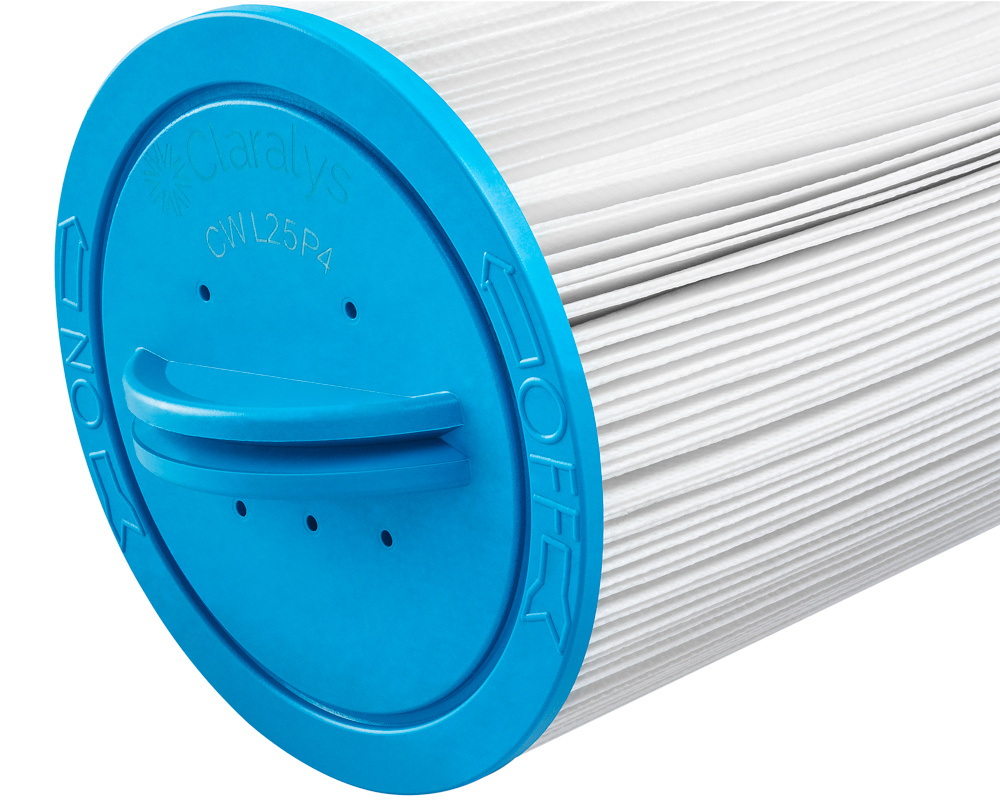

Top: Handle

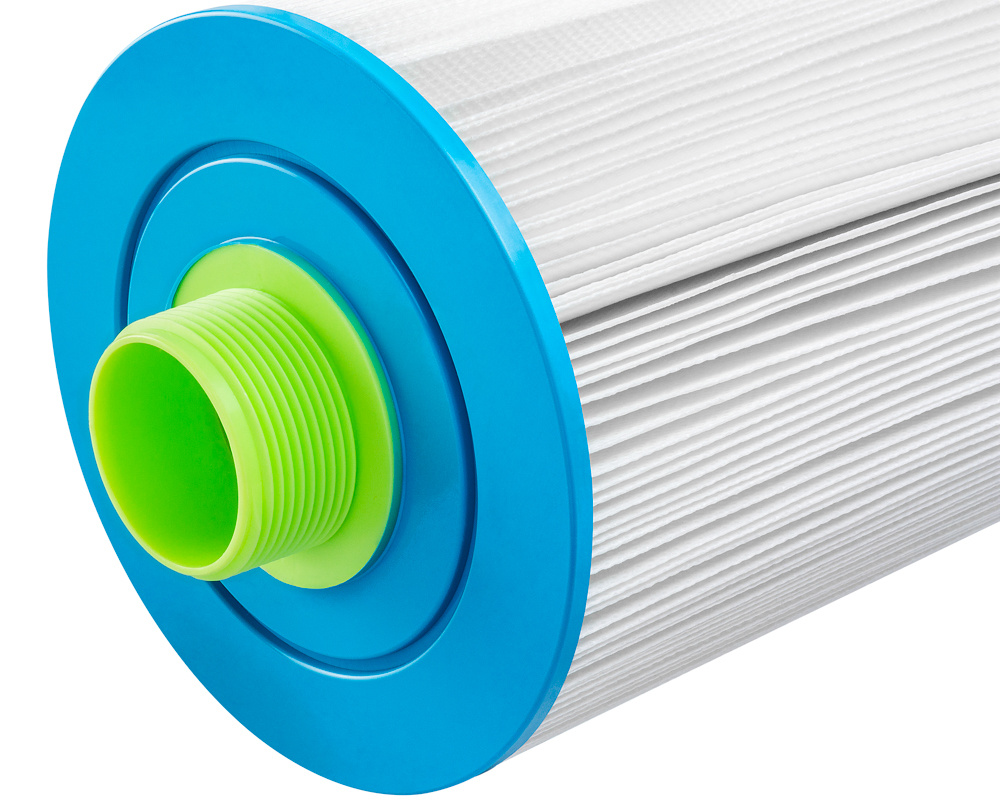

Bottom: 1.5" MPT thread (46-47 mm outside diameter)

Measure the length of the filter excluding the handle and the threaded pipe.

Filters from different manufacturers all have slightly different handles. The most common are a cone-shaped handle (Unicel) and a D-shaped handle (Pleatco), but they are all compatible with one another. If the length and diameter match, then this is the correct filter for your spa.

This filter is fully interchangeable with the PWL35P4-M. The only difference is the number of folds in the filtration fabric, and therefore the filtration surface area. The CWL25P4 has a surface area of 25 square feet, and the PWL35P4-M has a surface area of 35 square feet. If only there was a way to figure out the surface area directly from the part number, it would save us a lot of time looking this stuff up...

Spa manufacturers who use this filter
Wellis (Budapest, Bruxelles, Dublin, Ibiza, Prague, Everest hot tubs)

Part numbers
Claralys : CWL25P4
Darlly: SC809 / 50653
Wellis: AKU1610 / AM00243
Pleatco: PWL25P4-M (Microban)
Wellis: AKU0136 (Microban)
