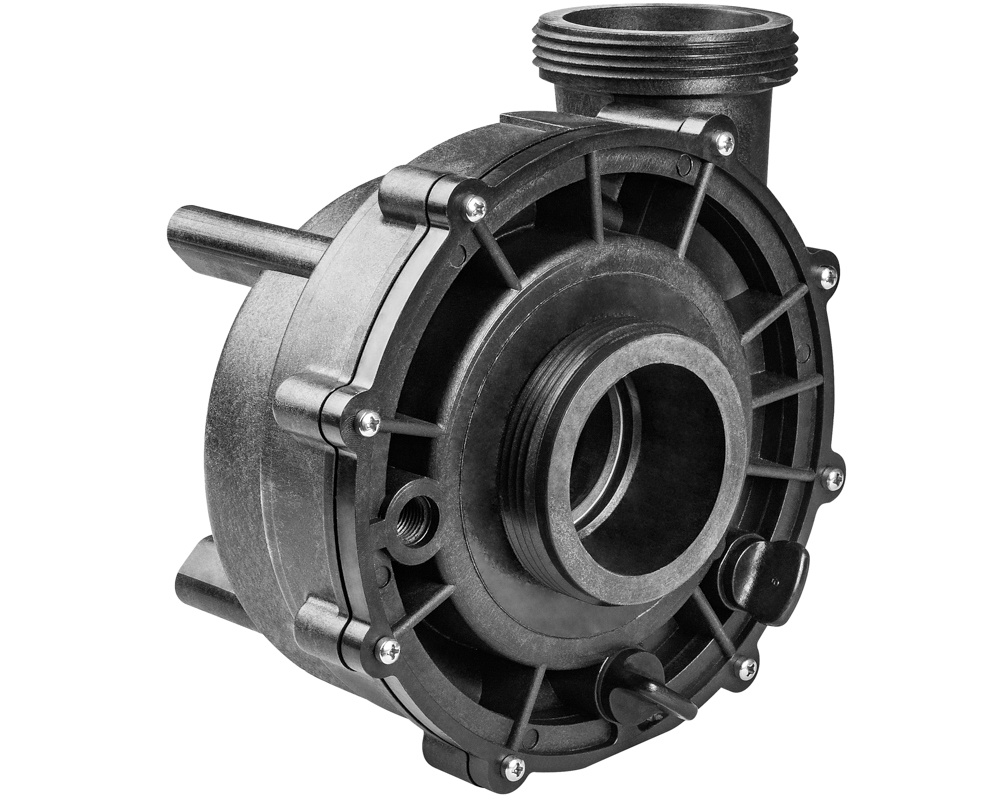

CMP 3HP wet end

This CMP wet end is delivered complete with its faceplate, impeller, wet end seal, flange and gasket. It has two sets of threaded attachment points to fix the wet end to the motor: 48-Frame and 56-Frame.

It is compatible with ASD ATL-4 (56-Frame) two-speed pumps, and is perfectly suited to the US Motor 48-Frame two-speed motor.

If necessary, don't forget a set of screws (#8-32 or #10-32) to secure the wet end to the motor.

If you are unsure how to measure the frame (48-Frame or 56-Frame), we explain how to check the fixing centres.

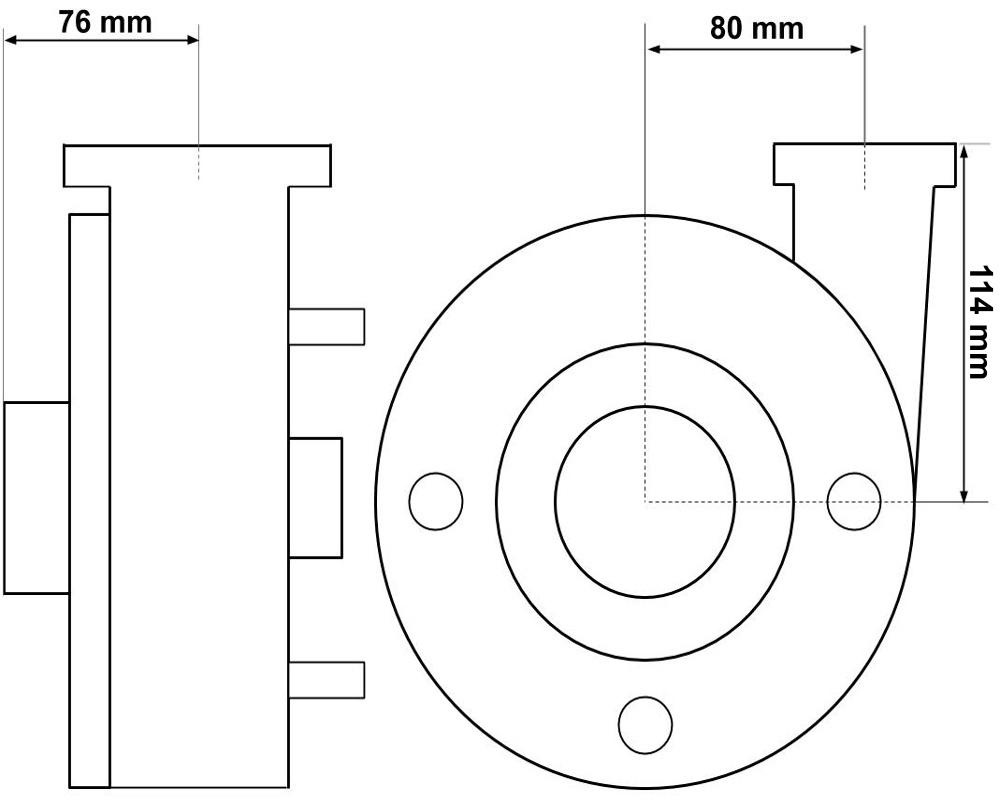

Dimensions

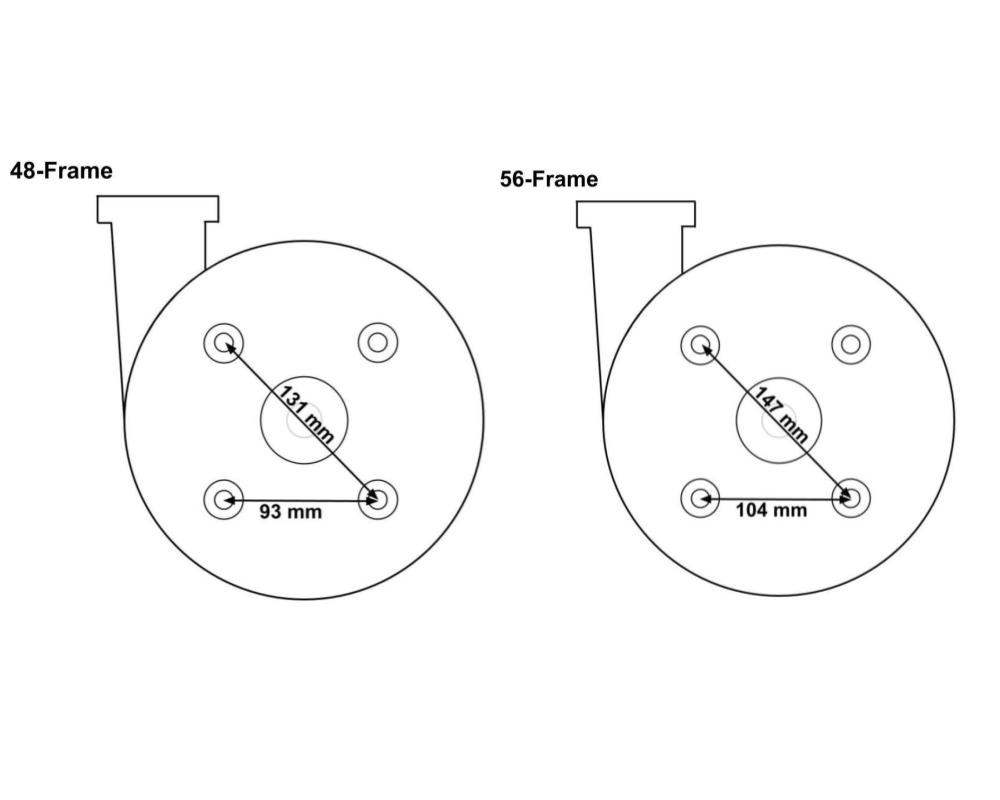

Separation of 56-Frame attachment points: 147 mm diagonal, 104 mm orthogonal
Separation of fixations 48-Frame attachment points: 131 mm diagonal, 93 mm orthogonal
External diameter of pipe connection: 78 mm. This wet end will typically connect to a 2-inch pipe.

Part numbers
CMP : 27203-300-000
ASD : 10-10010001
