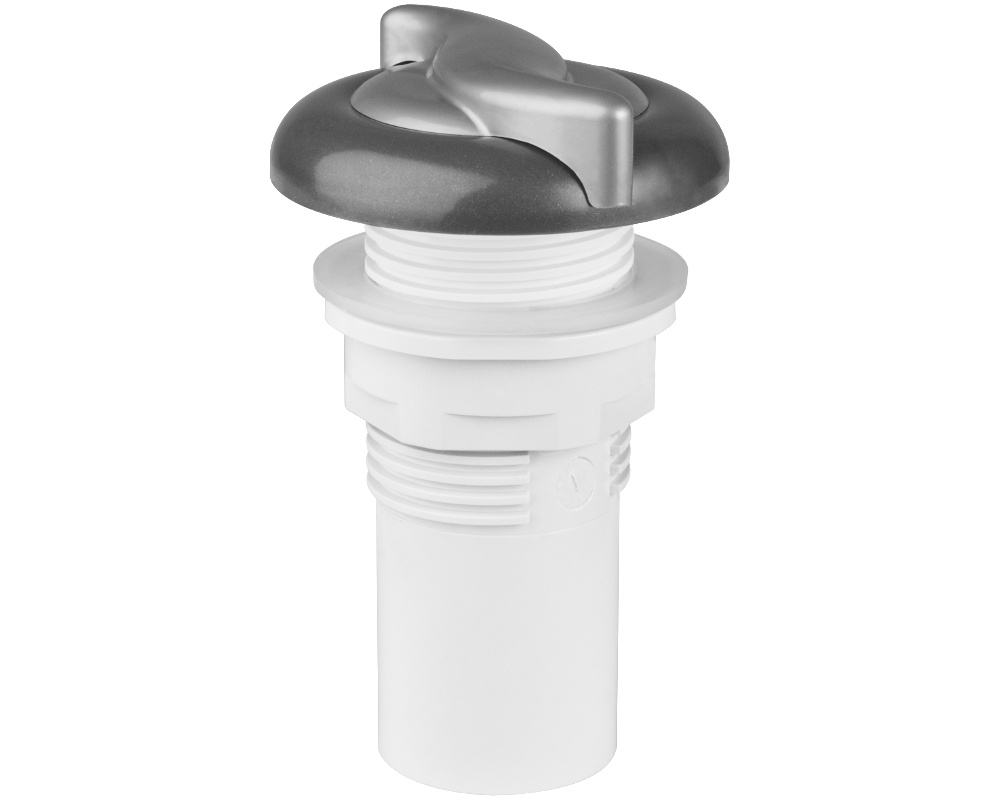

CMP air valve with small handle

This air valve, manufactured by CMP, adjusts the flow of air being sucked into the jets by the Venturi effect, and therefore the intensity of the massage. It connects to 1" pipe (33 mm diameter).

There is another version of this valve which is no longer available, with a larger handle, with a face diameter of 90 mm. The two versions are perfectly compatible with one another, so you can replace one with the other.

Dimensions
Diameter of the face: 70 mm
Drill diameter: 42 mm
Length: 120 mm
Top diameter (where the cap screws on) : 62 mm

Part numbers
CMP: 25093-217-000
Wellis / Phybris: AKU0023
