CMP Cluster Jet body

In stock
6,50€
incl. 20% VAT
Quantity:

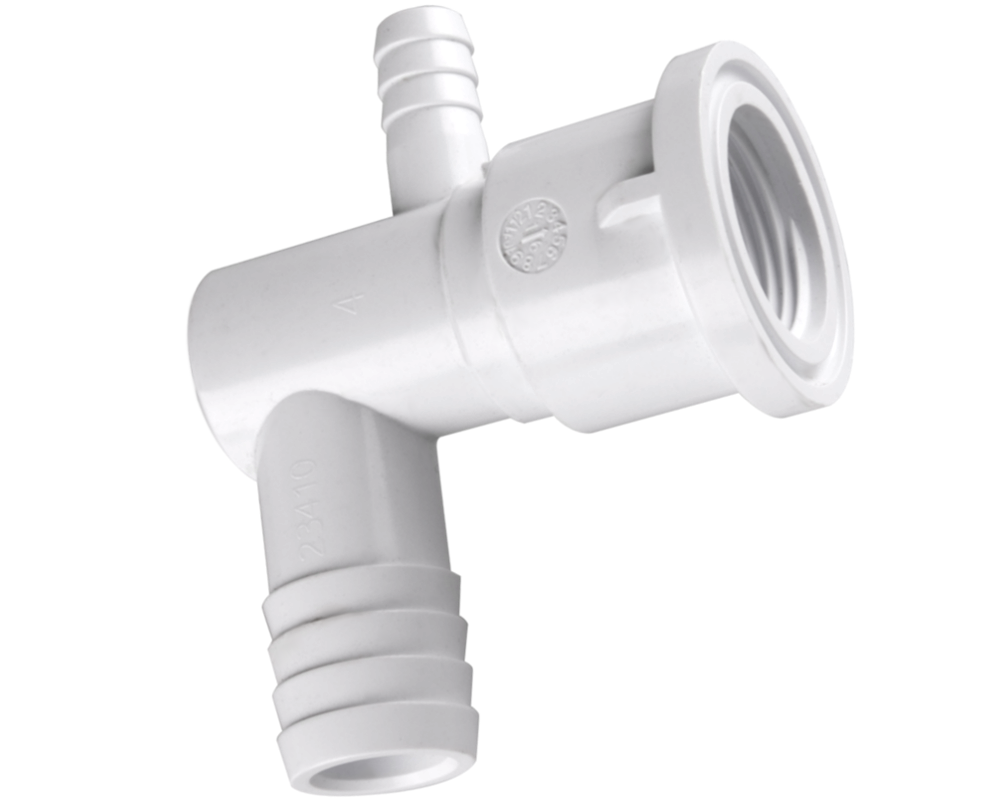

CMP Cluster Jet body - Click to enlarge
CMP Cluster Jet body - Click to enlarge
CMP Cluster Jet body - Click to enlarge

This jet socket is compatible with all jets from the CMP Cluster Jet range.

The socket has two ribbed-barb connections: one for a 3/4-inch water pipe, and the other for a 3/8-inch air pipe. The nozzle in the socket automatically sucks in air through the air pipe by the Venturi effect.

To seal the jet, we recommend that you use a gasket between the socket and the outer surface of the pool, and silicone or hybrid sealant between the jet and the inner surface of the pool.

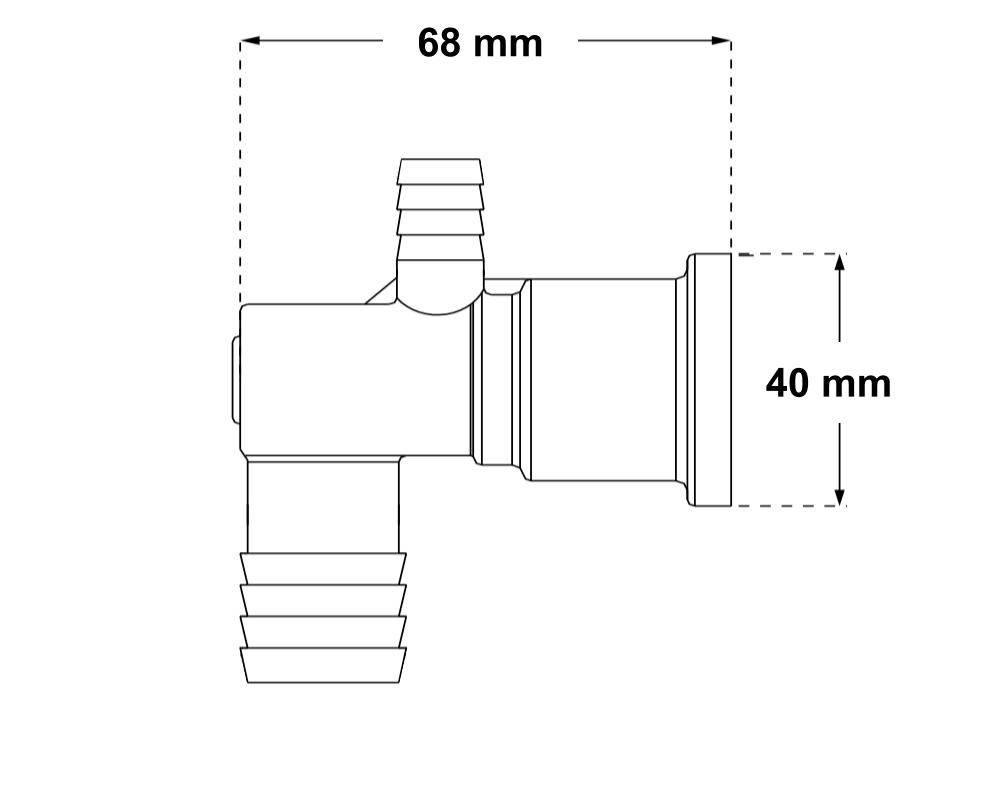

Dimensions
External diameter: 40 mm
Internal diameter: 24 mm
Overall length: 68 mm
Connection: 1/4-inch et 1/2-inch

Part numbers
CMP: 23411-000-000
