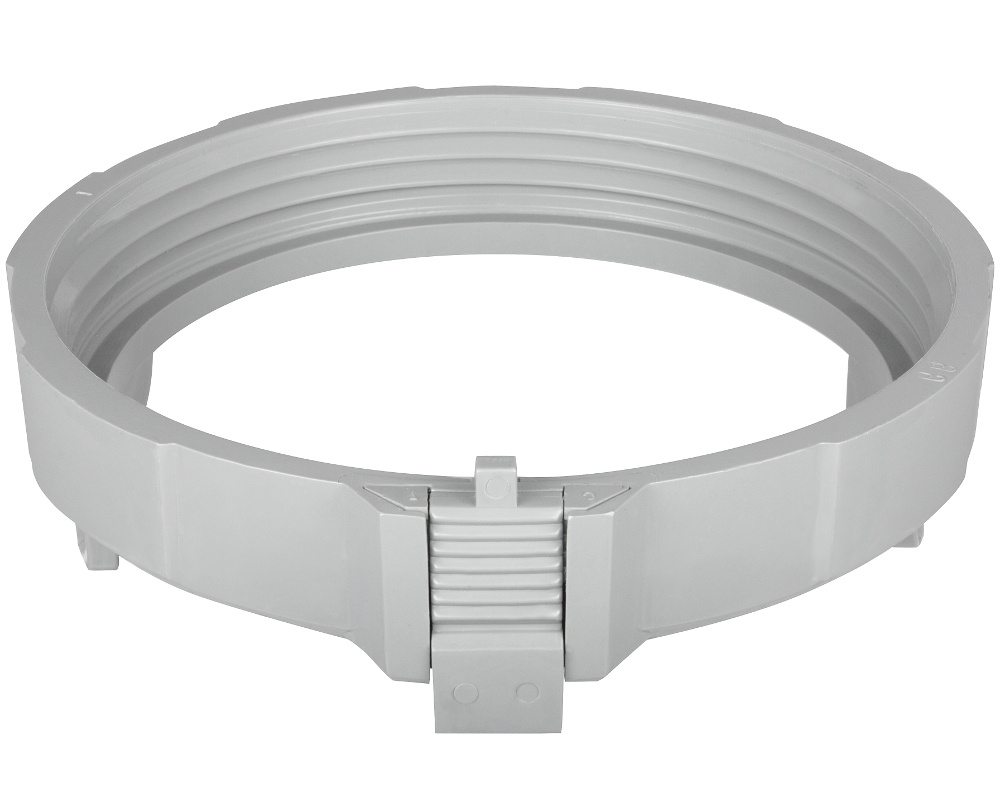

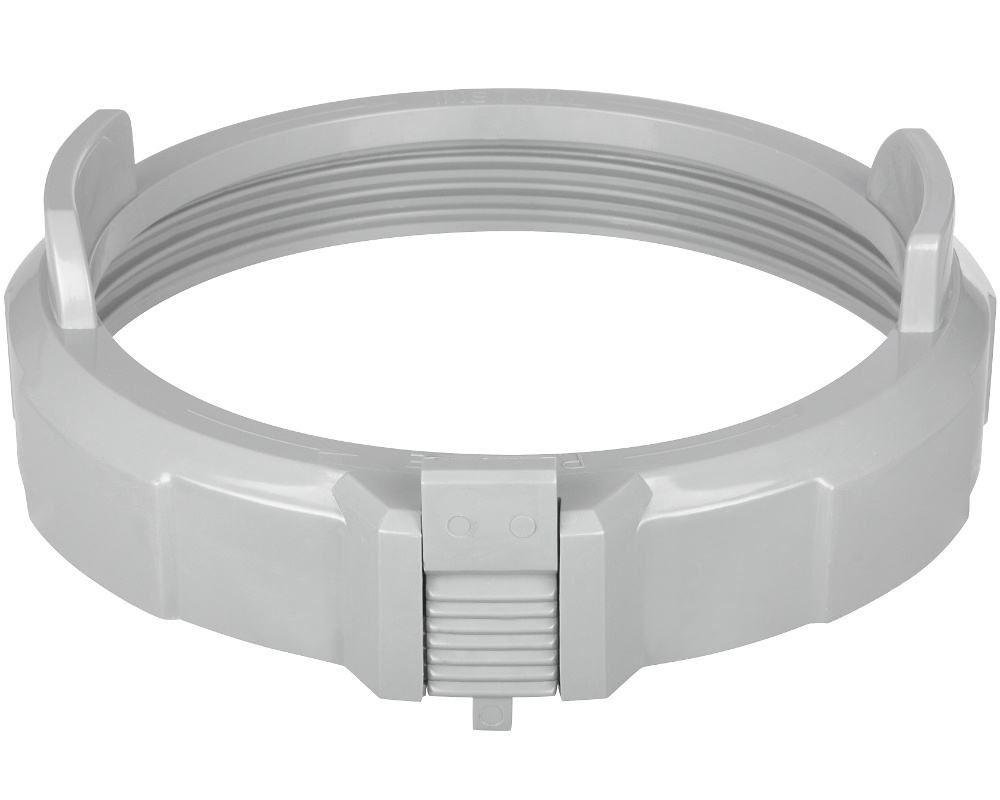

CMP Top-Mount filter threaded lock ring

This lock ring holds the cover in place on CMP Top-Mount filters. It holds down the filter cover against the water pressure inside the filter.

The lock ring has a spring-loaded grey tab, which drops into a notch on the filter housing when the ring has been sufficiently tightened. The main purpose of this tab is to discourage overtightening, and you have to lift it before you can unscrew the ring.

Dimensions
Height : 35 mm
External diameter : 195 mm
Internal diameter of the thread : 170 mm
Inner diameter of the top of the ring: 156 mm

Part numbers
CMP : 25376-000-001
