Dimension One heater - C3548-1

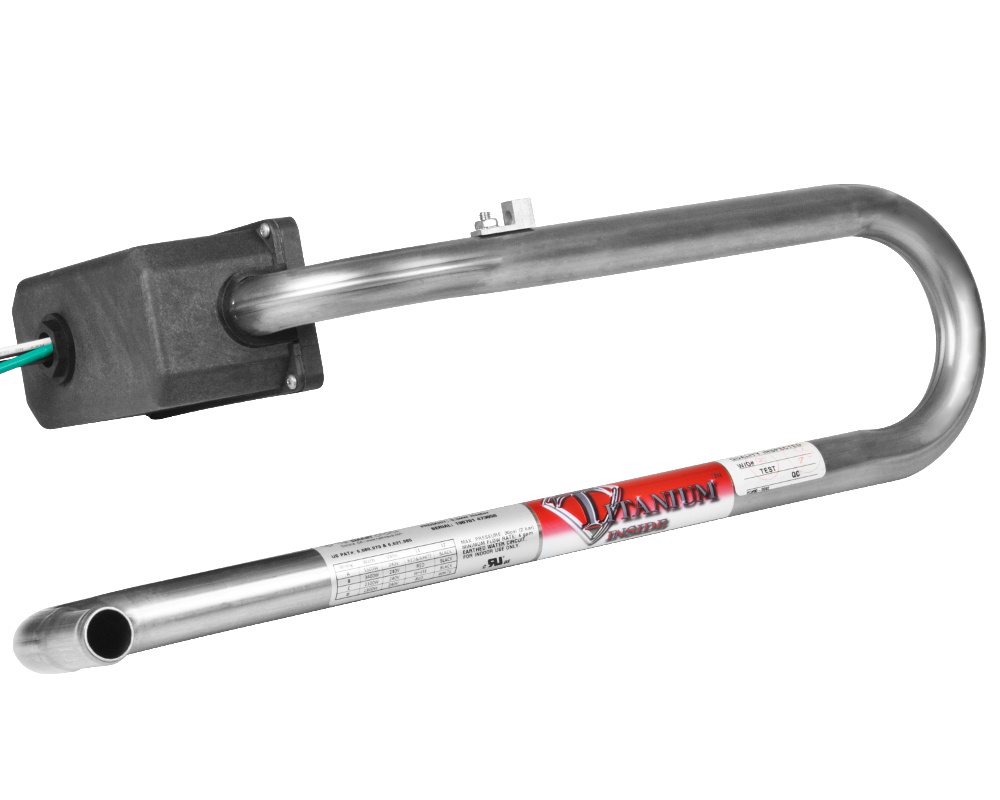

This Therm Products heater has a maximum output of 5.5 kW. It is found on Dimension One spas since 1998, but it is also compatible with many other brands.

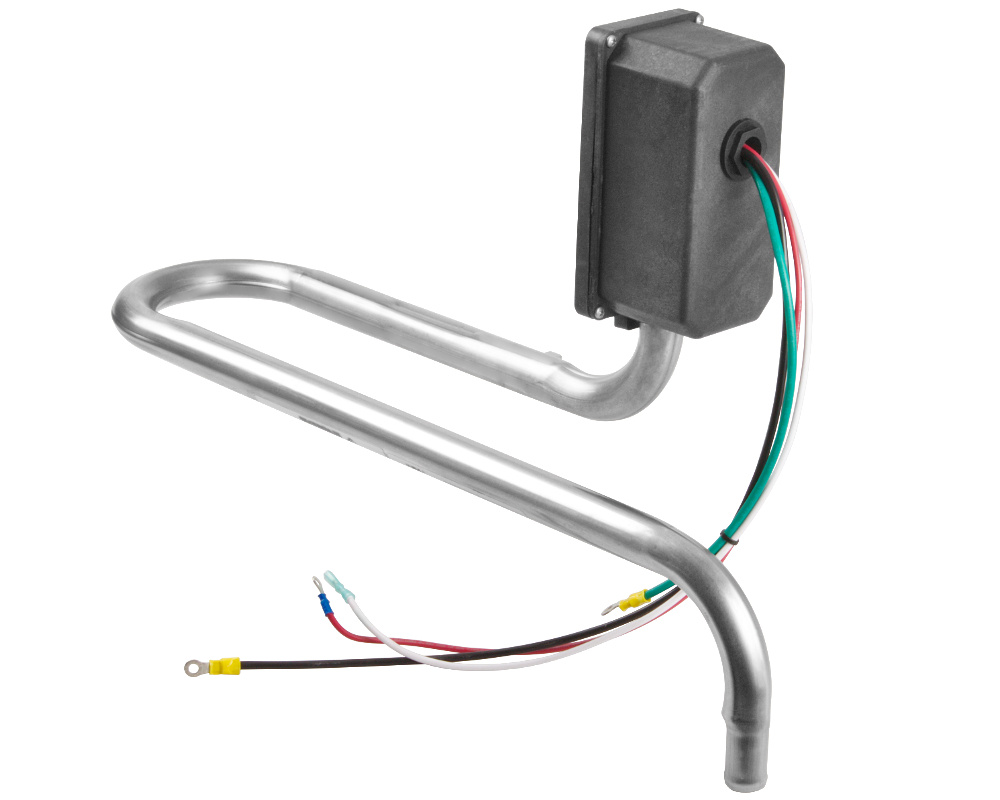

It is equipped with 4 cables of different colors. Depending on the type of wiring, you will be able to obtain the following power ratings: 1.3 kW, 2.1 kW, 3.4 kW and 5.5 KW.

Dimensions
Width: 520 mm
Diameter: to be connected to pipe 3/4-inch
Total tube length: approx. 1050 mm

Technical specifications
Power consumption: 5.5 kW

Warranty
2-year Tubs Parts warranty

Part numbers
Therm Products: C3548-1
Dimension One : 01781-27

Replaces 01563-32, 01781-27, 1781-20, 1781-27, 48-3300-40-001, 6144.3, 61443, SEH-5500-NHC-7300, SEH5200NH6757, SEH5500NH, SEH5500NHC7300, SHE-5500-NH-6144
