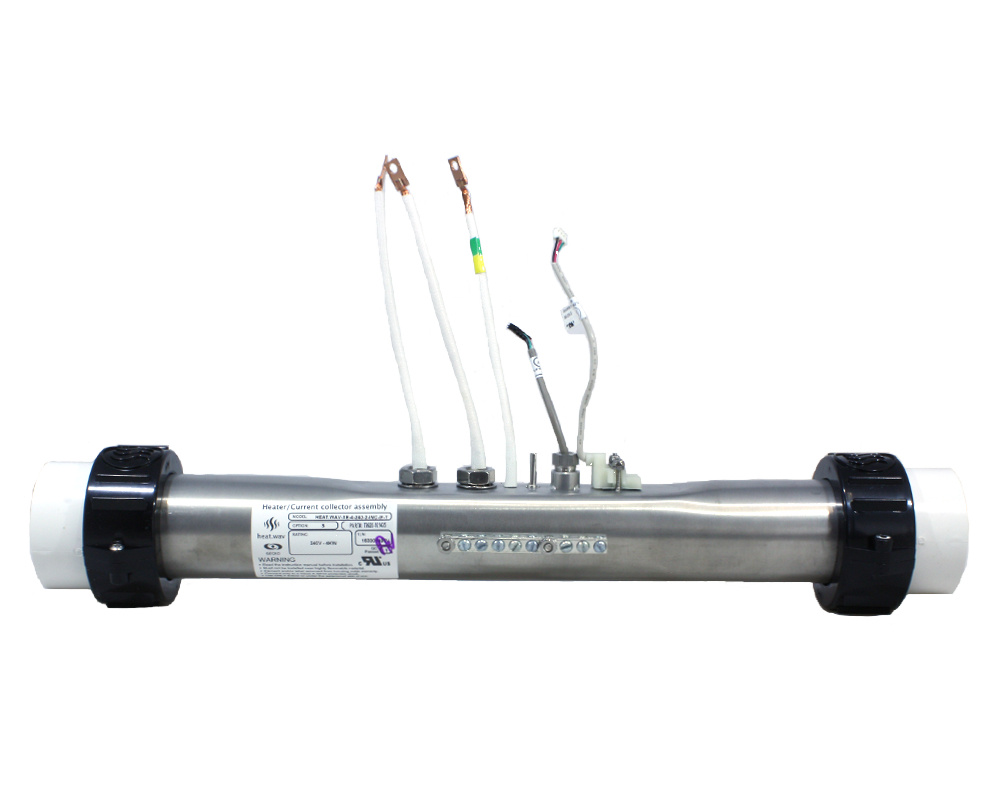

Gecko heat.wav 4 kW heater, reconditioned

This reconditioned 4 kW heat.wav heater is mounted on Gecko in.xe, in.ye-5 and in.yt-7 control systems.

With no pressure switch, the heat-wav features an integrated dry-fire protection, in.flo, and is equipped with a flow detector and a temperature sensor.

It connects to 2-inch pipe.

If necessary - and if the warranty has expired - you can replace the element by removing the fixing nuts and self-locking washers and cutting the copper cables. Two 6 mm² wires and four eyelet terminals (not provided) are required. Please do not hesitate to contact us for further information.

Dimensions
Length: 381 mm (without connectors and gaskets)
Connected to 2-inch pipes

Connection
The heater is supplied with its two 2" split nuts and tailpieces. gaskets must be purchased separately

Warranty
6 months Tubs Parts warranty

Part numbers
4 kW: 26-101435-5S-K (HydroQuip)
