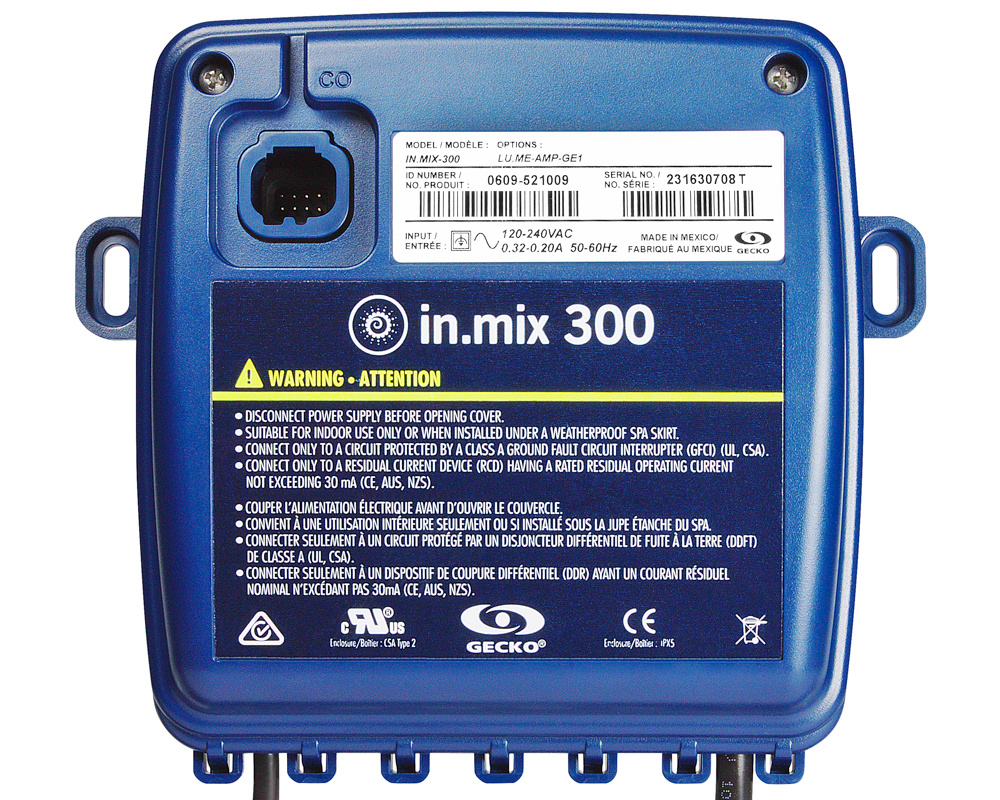

Gecko in.mix300 underwater color system (in.lu.me)
Compatible with Gecko's X and Y series control systems, the in.mix 300 lighting console makes it easy to create lighting effects in and around your spa by activating and controlling up to three color zones inside and outside the pool.
This version is specifically designed for Gecko's in.lu.me lighting system.
It's up to you to create your own personalized atmosphere right from your keyboard, as the colors selected in each zone can be managed and synchronized independently to create dazzling visual effects. Fast or slow fade effects can be added, and light intensity can be adjusted to suit the desired atmosphere.
The in.mix has a built-in power supply and can be connected to 120V or 240V outputs on your control system. You can then create the lighting you want: you can operate up to one hundred RGB (red, green, blue) light points in a single zone, or divide them into three separate zones to illuminate the water or create color accents around your spa.
Two other versions of the in.mix are also available: part number 0609-521001 with a 5V DC output compatible with Rising Dragon and Proway 5V lighting systems, and part number 0609-521003 with a 12V DC output compatible with SloanLED and Rosstech 12V lighting systems.
Technical specifications
Input voltage: 240V AC, 50/60 Hz

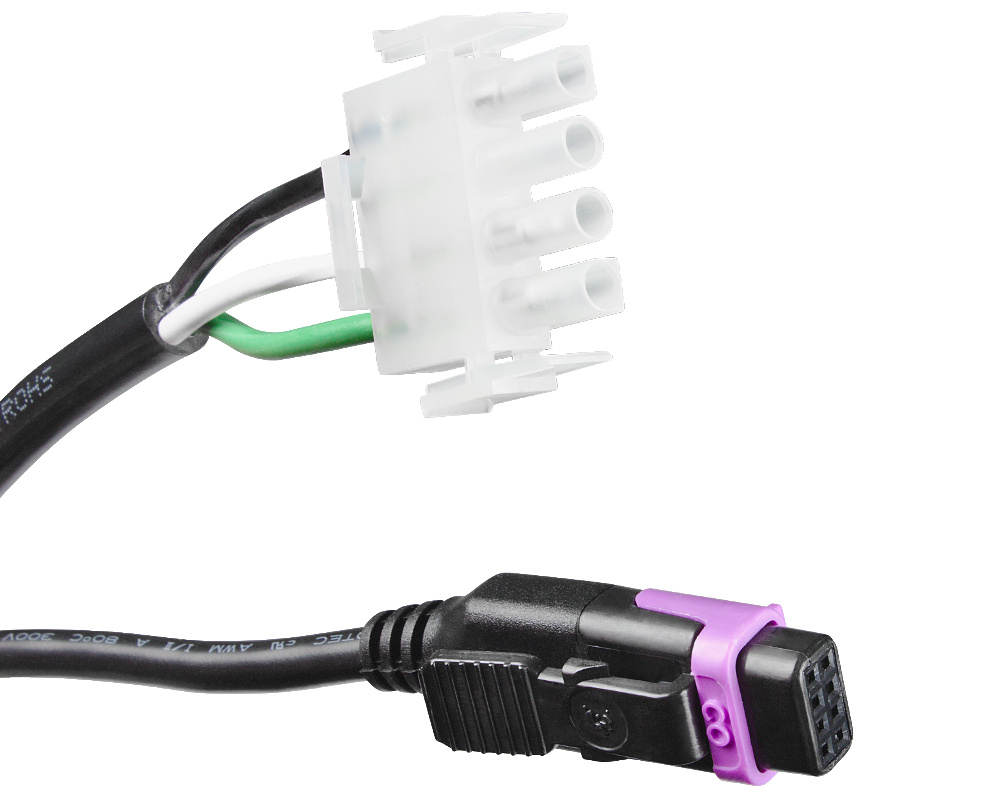

Plugs: in.link and AMP power cable, to be connected respectively to the "CO" port and to a direct output of the control system
Weight: 870 g
Operating temperatures : -20°C to 60°C
Humidity: 70% maximum
Water protection rating: IPX5
LED outputs
5 variable Vdc outputs
3 independent zones
4 output connectors, software-configurable for all zones
Up to 100 light points (RGB)
Up to 78,000 colors with in.k1000 and in.k1000+ keyboards
in.k800 and in.k500 keyboards offer a selection of 10 colors
2 rainbow effects with fading effect

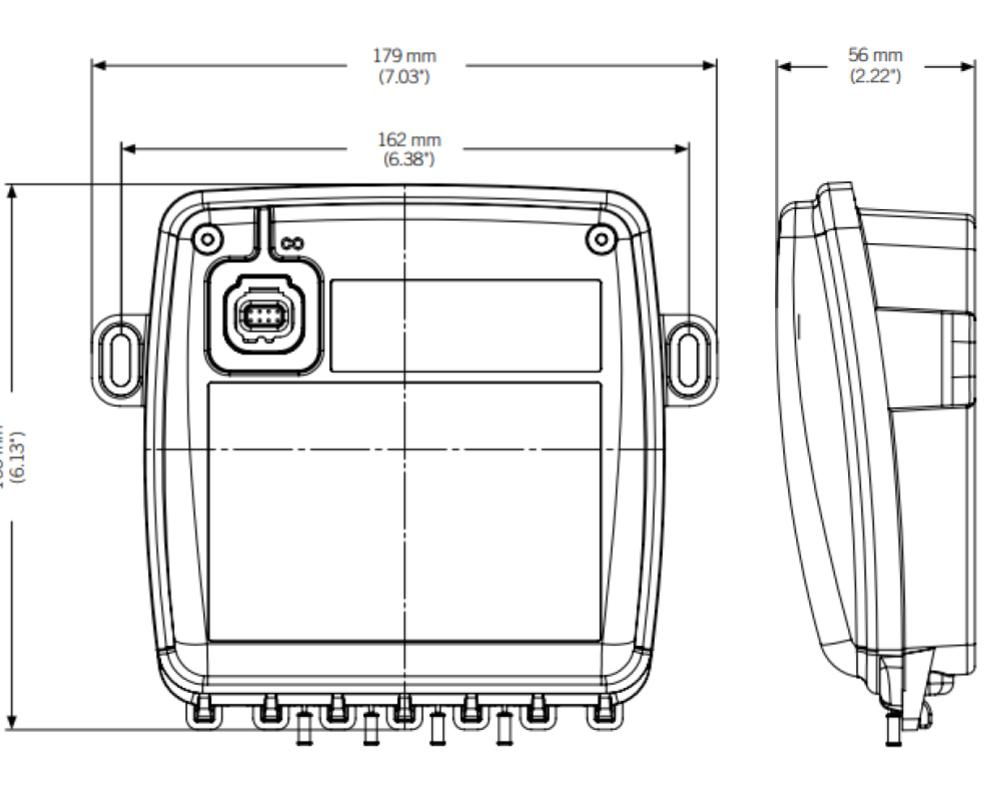

Dimensions
Width: 179 mm
Height: 156 mm
Depth: 56 mm
Compatible control systems
X and Y control systems version 2 (V2): in.yj-3-V3, in.ye-3, in.ye-5, in.yt-7, in.xm2, in.xe
Compatible keyboards
Gecko keyboards in.k500 version 19, in.k800 version 6, in.k1000 version 13, in.k1000+ and in.k1001 with appropriate software revisions
Compatible LED lighting
Only compatible with Gecko's in.lu.me lighting system. Please refer to the User Guide for connections, or contact us.
Warranty
2-year Tubs Parts warranty
Part numbers
Gecko : 0609-521009, IN.MIX-300-LU-ME-AMP-GE1
