Gecko TSC-9 / K-9 keypad
Gecko's TSC-9 is no longer on the market. It can be replaced by the TSC-18.
This compact 4-button keypad is available in two different versions with the following buttons:

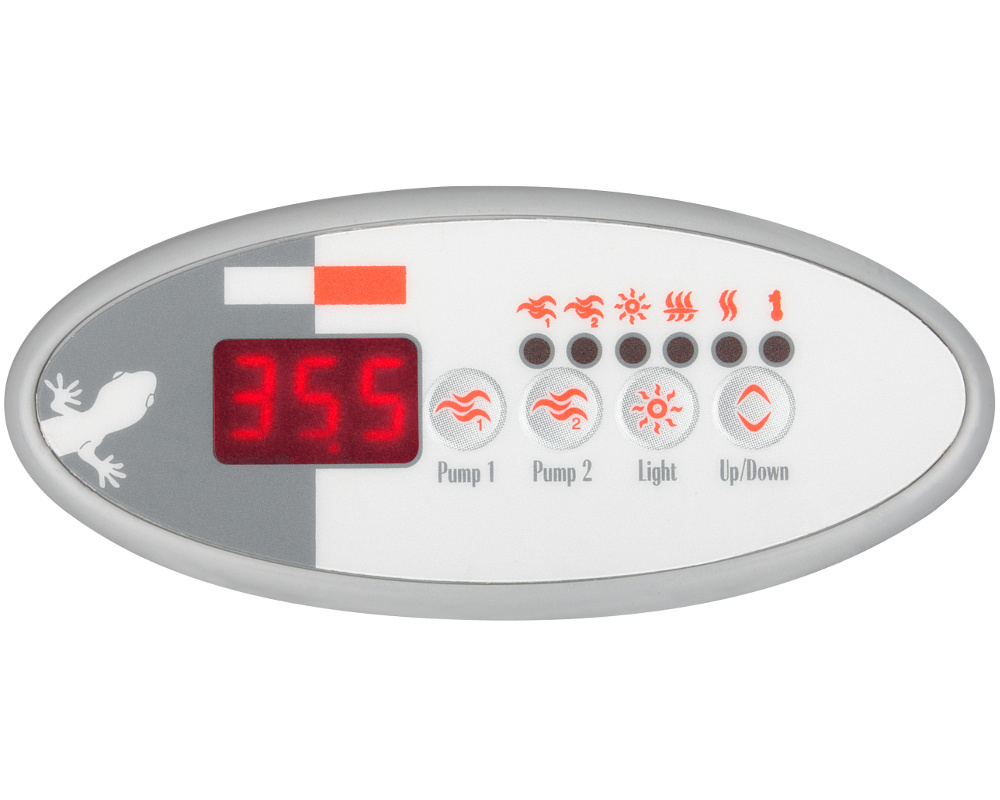

Pump 1, Pump 2, Light, Up/Down

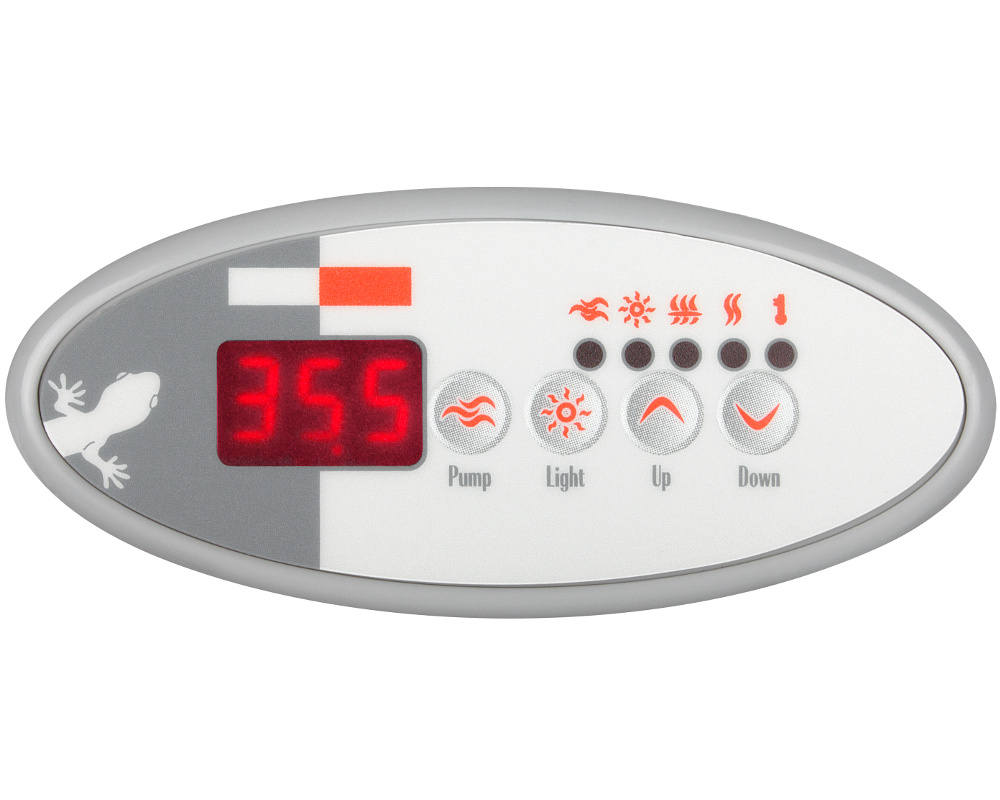

Pump, Light, Up, Down
The keypad comes with a cable of approximately 250 cm, fitted with an 8-pin connector to connect it to the motherboard.
The self-adhesive overlay is also available as a spare part, if needed.
Dimensions
Keypad : 114 mm x 51 mm
Cut out area : 86 x 22 mm
Compatibility
This keypad is most commonly used with Gecko SSPA control systems.
Part numbers
Gecko: BDLTSC9PPD, 0202-007154
