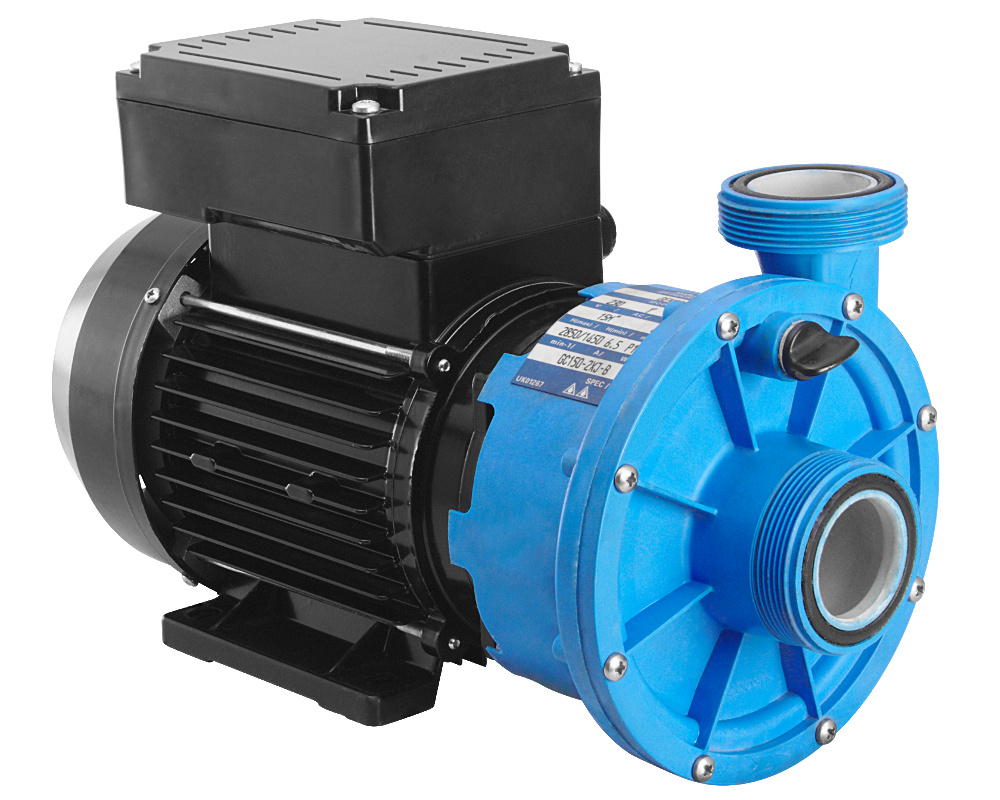

HydroAir Genesis 2-speed pump

Easily identifiable by its blue wet end, the HydroAir Genesis 2-speed pump had an Italian-made EMG motor and was very common on Spaform hot tubs.

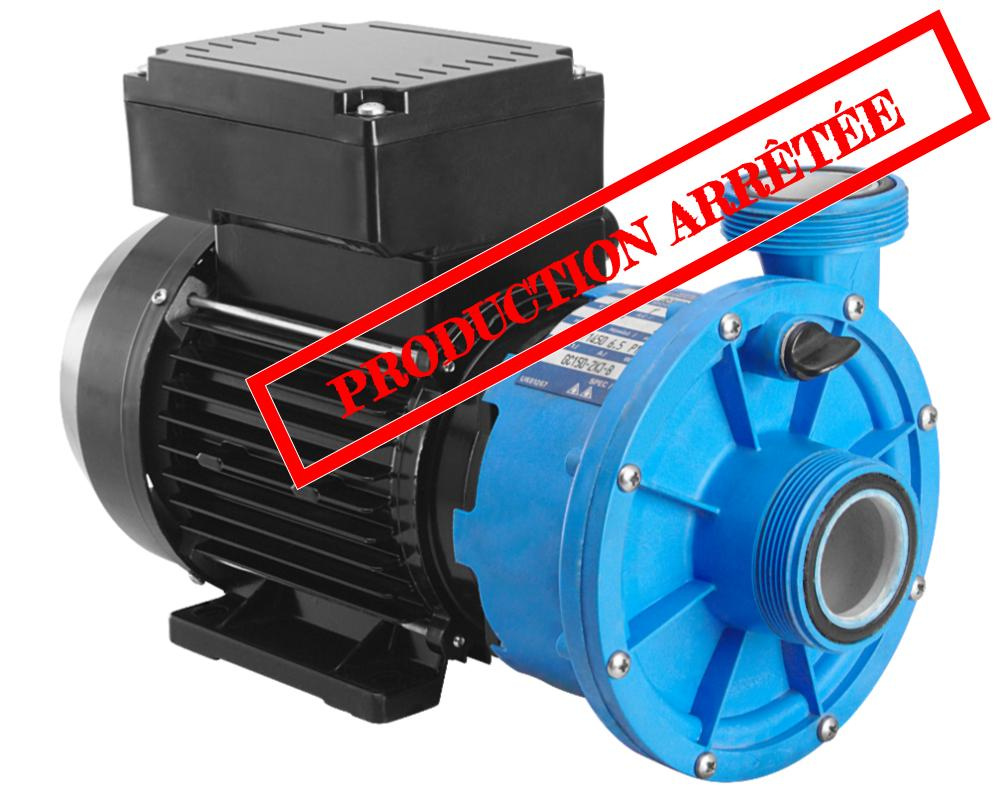

This pump is no longer manufactured, as Spaform discontinued the wet end, and is now replaced with the HydroAir HA440, which has different size connections and doesn't fit directly.

Dimensions (without pump unions)
Length: 350 mm
Height: 230 mm
Width: 160 mm

Technical specifications
Power high speed: 1.48 kW (1.5 HP)
Power low speed : 0,44 kW

Connections
The Genesis pump fits the blue 1.5-inch x 1.5-inch wet end
In the case of replacement by the HydroAir HA440 pump, an adaptation of the piping will be necessary, as this model is connected with 2-inch pipes.

Part numbers
HydroAir Genesis : GC150-2XJ-B
