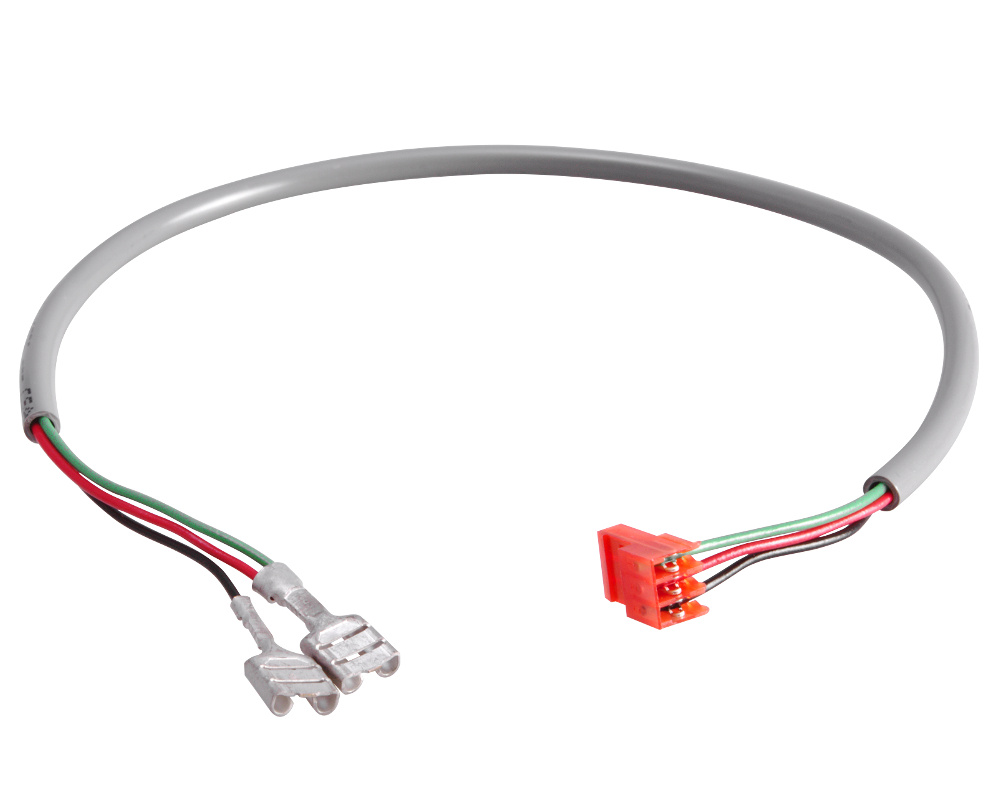

HydroQuip pressure switch cable

This cable connects the pressure switch to the motherboard of your control system. This specific part is found on most Gecko SSPA/S-CLASS systems, but it can be used with other systems as well.

If your cable is damaged then you may get flow detection errors (like FLO, or three flashing dots), even though the pressure switch works perfectly.

Dimensions
Cable length: 33 cm

Connections

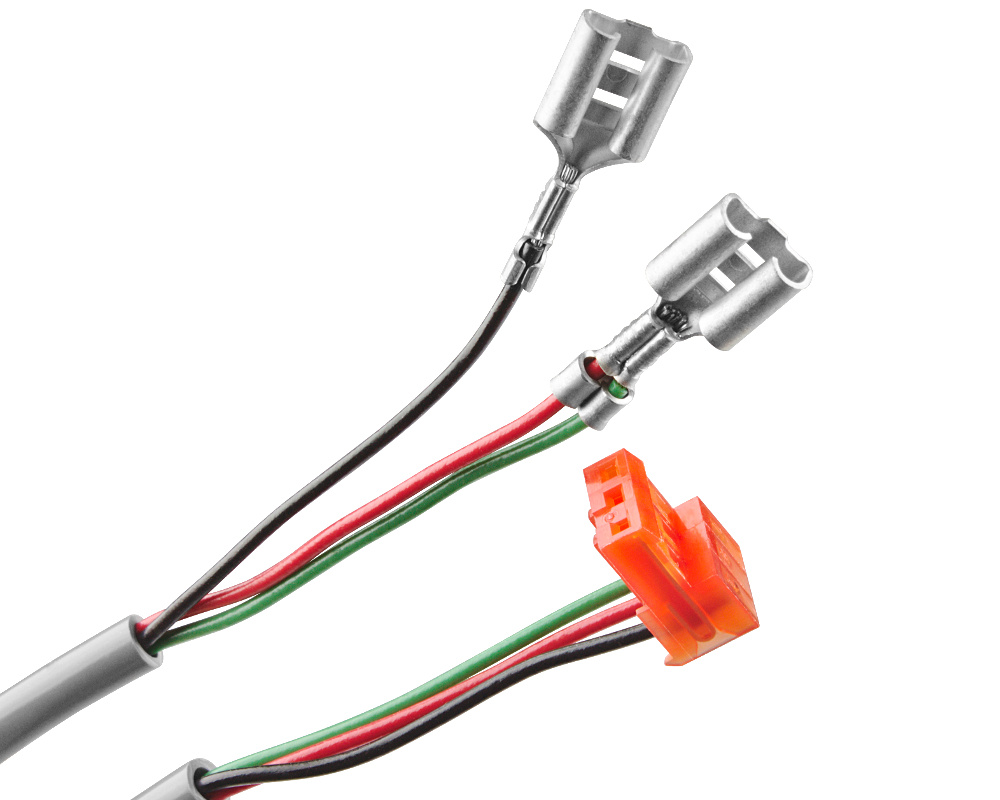

Pressure-switch end: 2 spade connectors
Motherboard end: a 3-socket female plug, with 3 wires

Part numbers
HydroQuip : 34-0199F
Replaces Gecko's 9920-400997 part number
