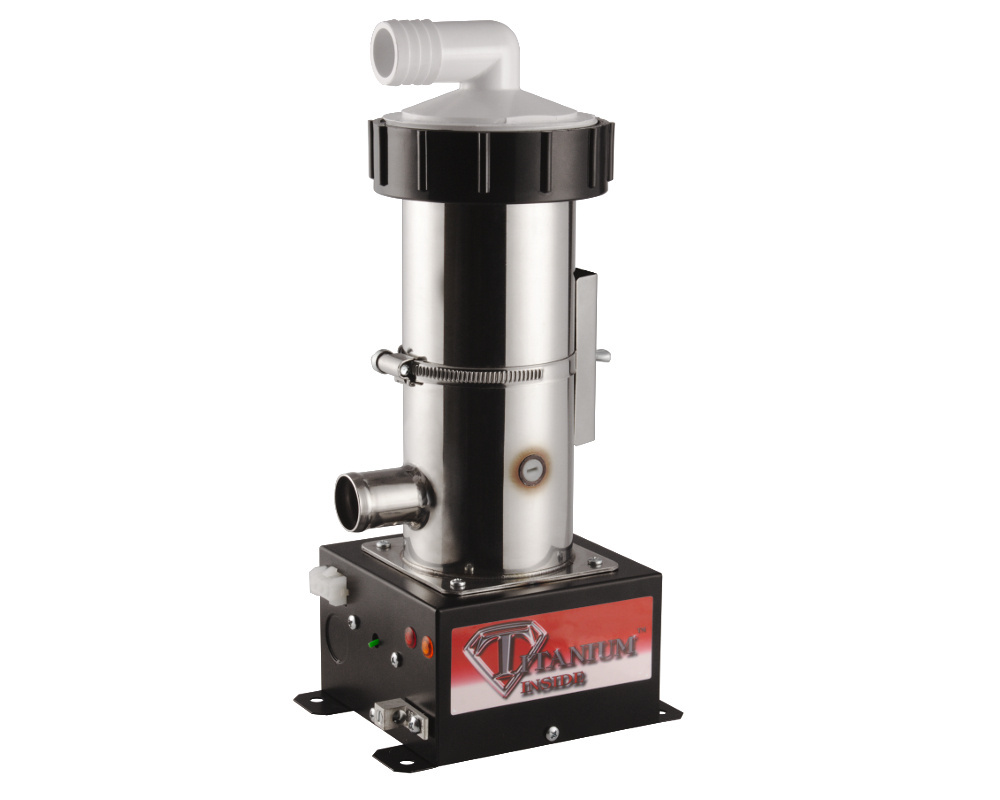

HydroQuip vertical low-flow 3 kW heater
This universal low-flow vertical heater with a 3 kW titanium element is manufactured by HydroQuip. It is used by Vita Spa and Maax Spas in particular, but it is also compatible with many other brands.
It can replace Therm Products' E2280-0300ET and E2300 Saratoga heaters, which are no longer on the market.
In addition to its replaceable titanium element, this heater is also supplied with an heat indicator light, a manual Hi-Limit trip reset button, an adjustable sensor clip and a reversible foot bracket.
The sensors and pressure switch are not included.
This heater requires a minimum consistent water flow rate of 6 gallons per minute (or 22 liters per minute).
It is supplied with fittings (ring, union and gasket) for 1-inch pipes.

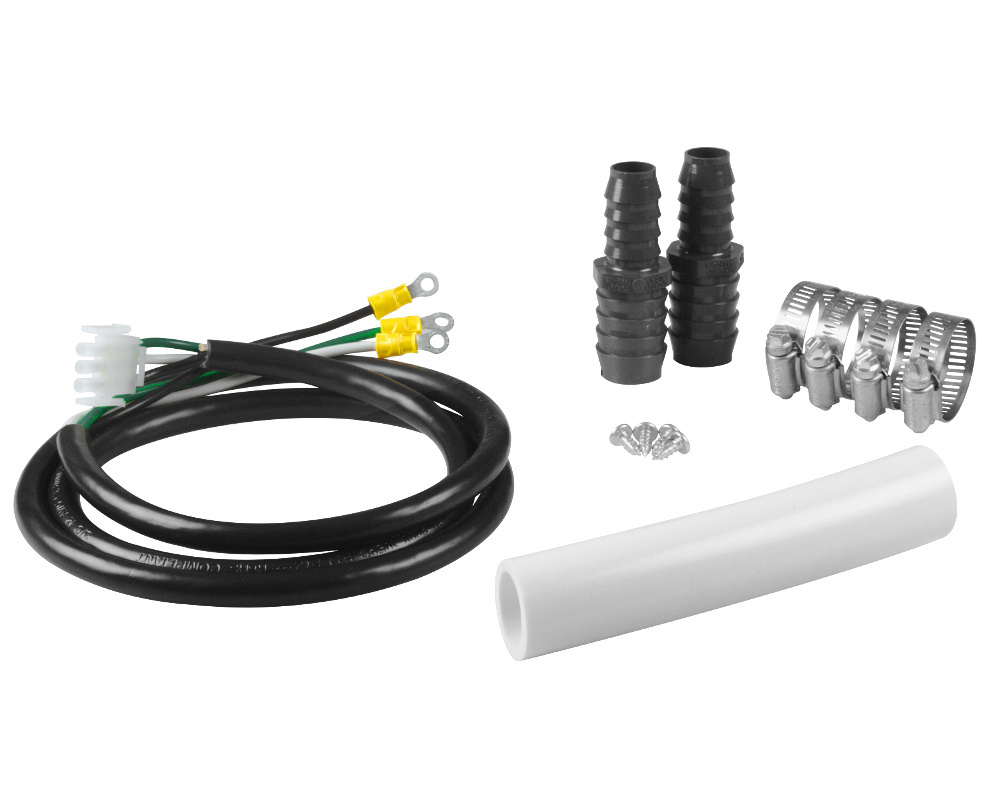

The heater is also supplied with :
- 1 power cord with an AMP 3-pin connection to heater
- 4 1-inch hose clamps
- 4 monting screws
- 1 piece of 1'-inch pipe (about 160 mm)
- 2 1-inch to 3/4-inch bardeb adaptators
Dimensions
Height: 310 mm
Max. width (with mounting brackets): 148 mm
Technical specifications
Power: 3 kW
Current: 12.5 A
Connections
Outer diameter of both fittings: 28 mm or 1-inch M+, for 1-inch pipes
Warranty
2-year Tubs Parts warranty
Part numbers
HydroQuip: 27-V310-4T-K
Installation kit: 48-0310-K
Can replace, with sometimes installation adaptations, the Therm Products heaters with the following references: E2300-0012, E2300-0127ETX, E2300-0127ET, E2300-0127ET, E2300-0126ET, E2300-0321, E2300-0321 AND, E2300-0542ET, 20-00542, 26-08116
