Jazzi Lotus 1,5" diverter valve

Only 8 in stock
49,50€
incl. 20% VAT
Quantity:
Jazzi Lotus 1,5" diverter valve - Click to enlarge
Jazzi Lotus 1,5" diverter valve - Click to enlarge
Jazzi Lotus 1,5" diverter valve - Click to enlarge

Diverter valves are used to regulate the water flow between different sets of jets. They are found on the rim of the spa.

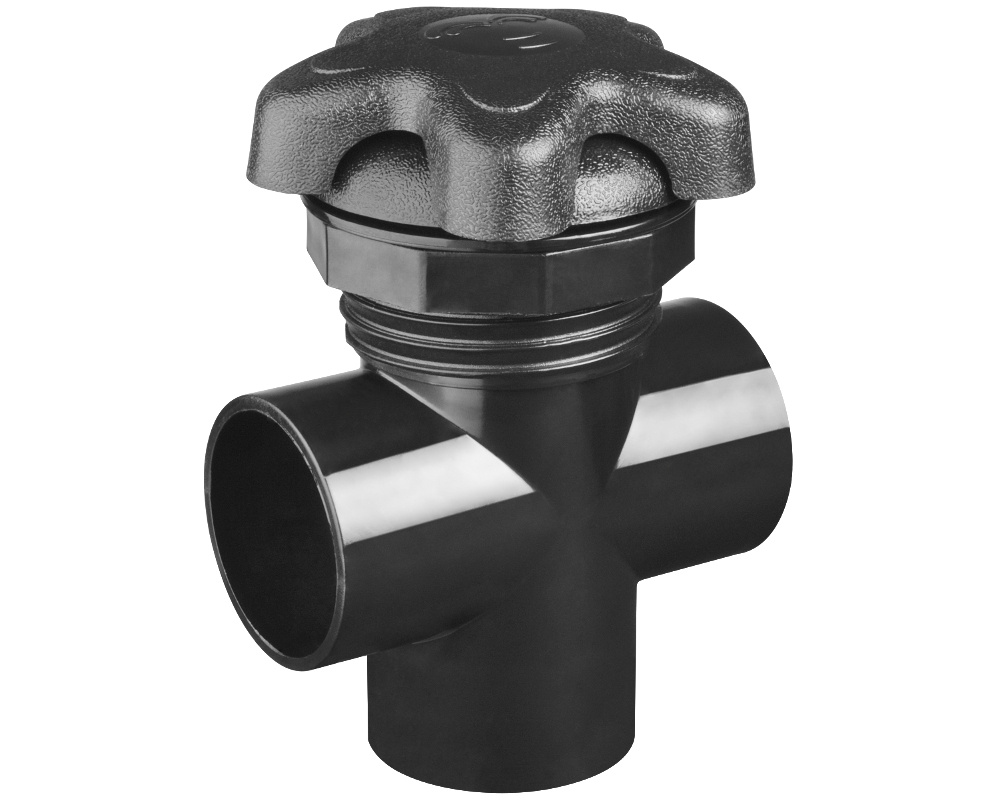

This star-handle Lotus 3-way valve (1 in-flow, 2 outflows) is found on Passion Spas.

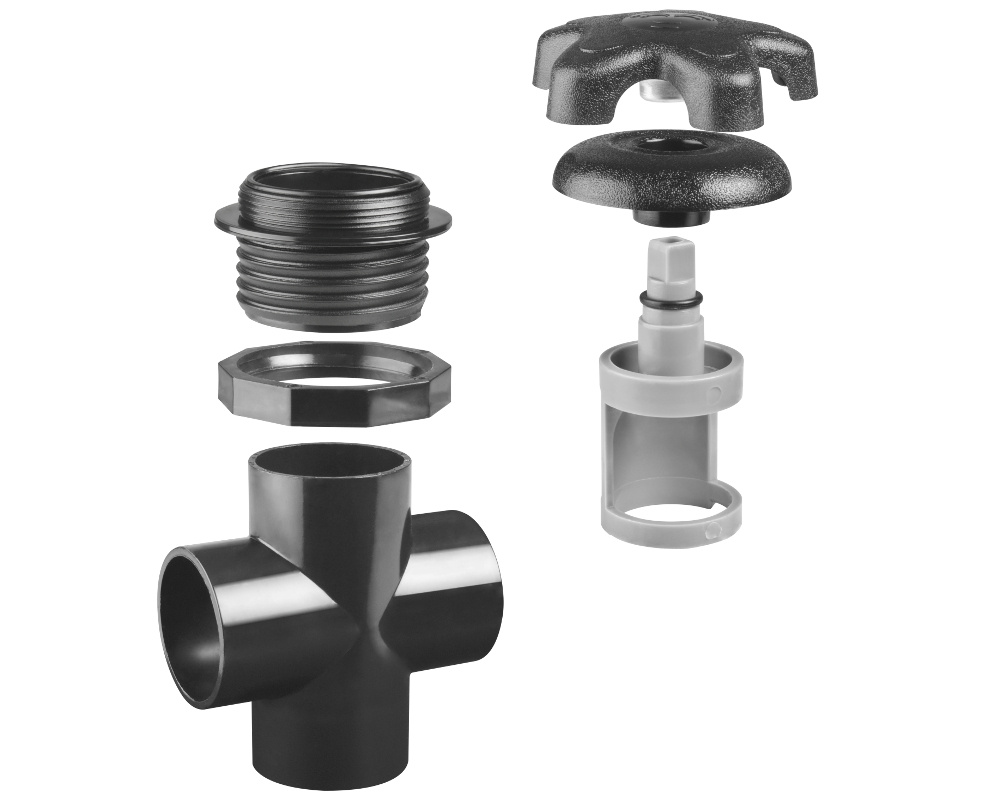

It is delivered with its nut but without gasket. We recommend a 2.4 mm thick o-ring to ensure a watertight seal. The handle and valve body must be glued together.

Dimensions
Drill diameter: 62 mm
Inner diameter of pipe connections: 48 mm (for 1,5-inch pipes)
Total height: 145 mm
Face diameter: 77 mm (without handle)
Top diameter (where the cap screws on) : 61 mm

Part numbers
Jazzi : 150492
