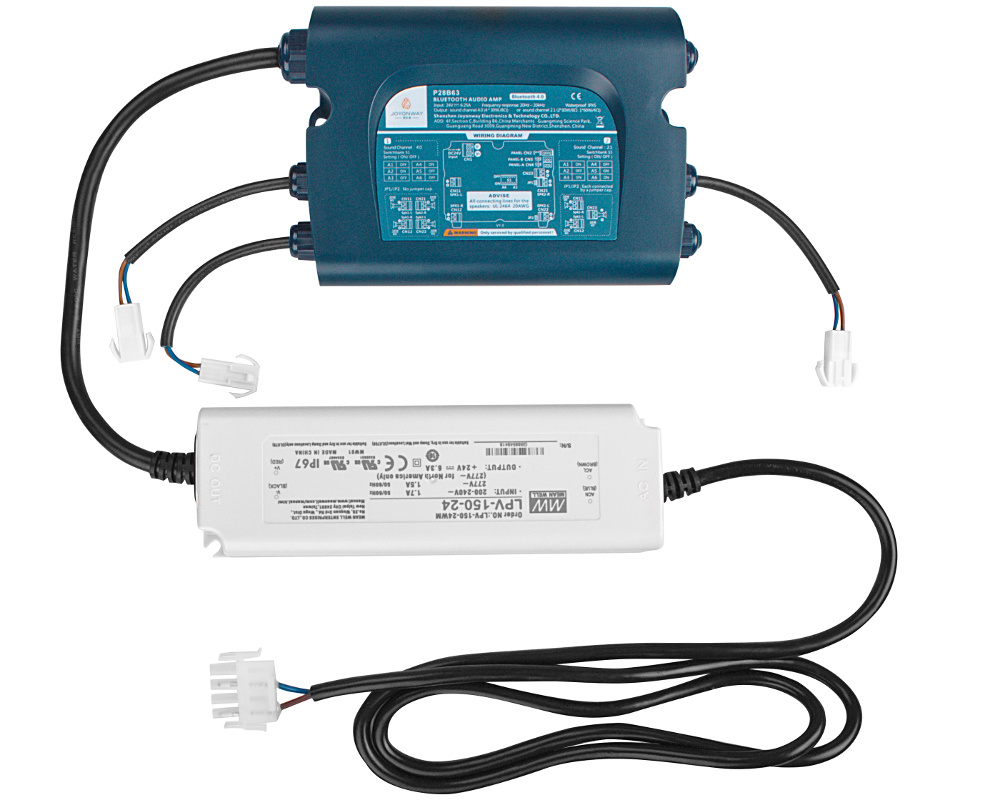

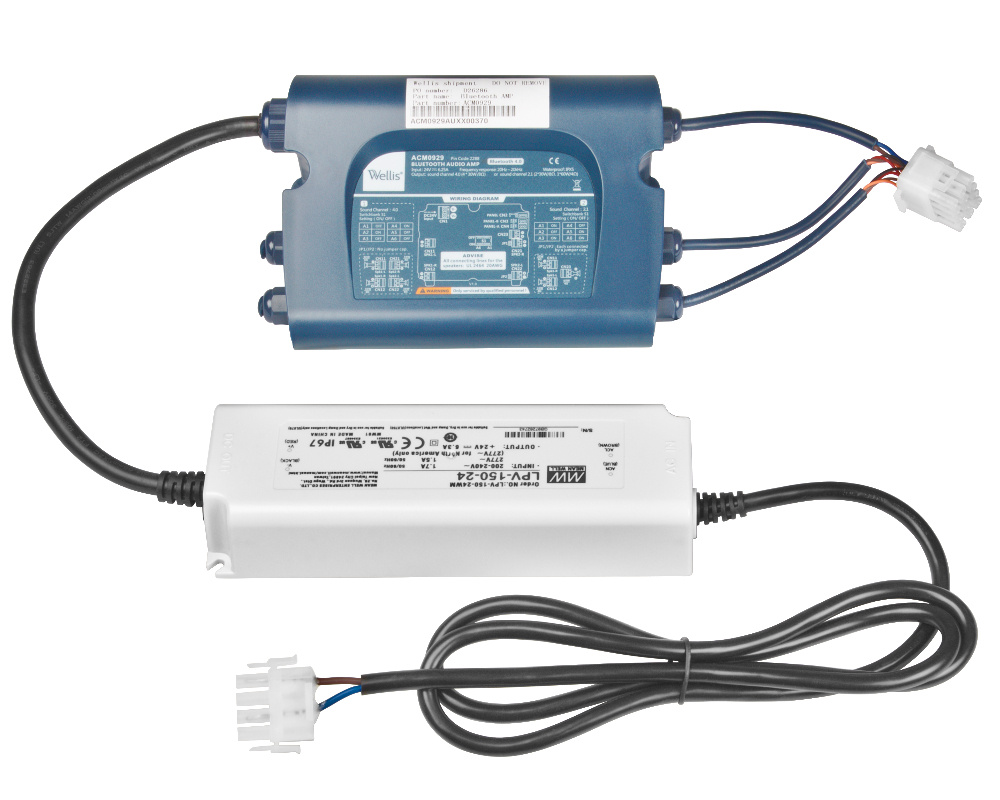

Joyonway Bluetooth audio amplifier

This Bluetooth receiver with amplifier allows you to control your spa's audio system. It connects to one of your Bluetooth enabled devices (smartphone or tablet, for example), and allows you to control your speakers from anywhere.

This receiver comes with its own transformer, so you can connect it directly to any control system equipped with a 4-pin 230V AMP plug, or directly to a 230V household socket.

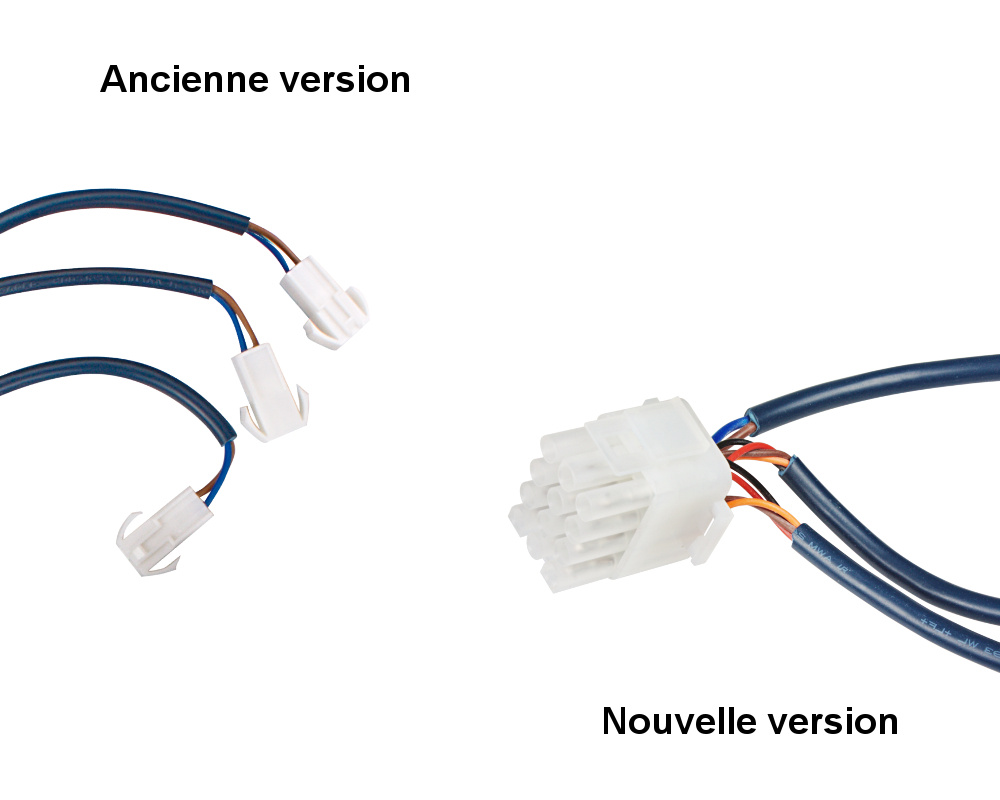

The receiver is configured for a 2.1 stereo installation via its Molex 12-pin connector (see picture 4).

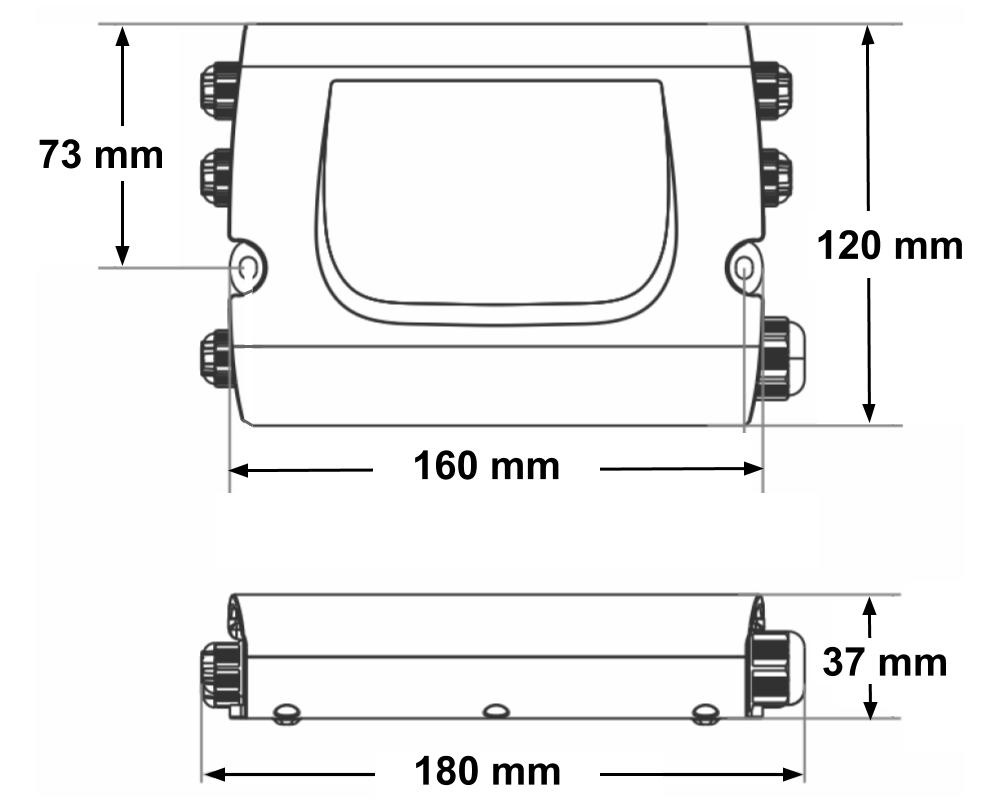

We recommend this receiver only when replacing an identical part. It may be compatible with the old ACM0898 part numers (see picture 3). For a change of connection, contact us.

Technical specifications
Maximum power: 2 x 30W (8 Ohm) or 60W (4 Ohm)
Transformer input voltage: 220V-240V AC
Output voltage: 24V DC
Maximum current: 6.25 A

Warranty
2-year Tubs Parts warranty

Part numbers
Joyonway: P28B63
Wellis: ACM0929
