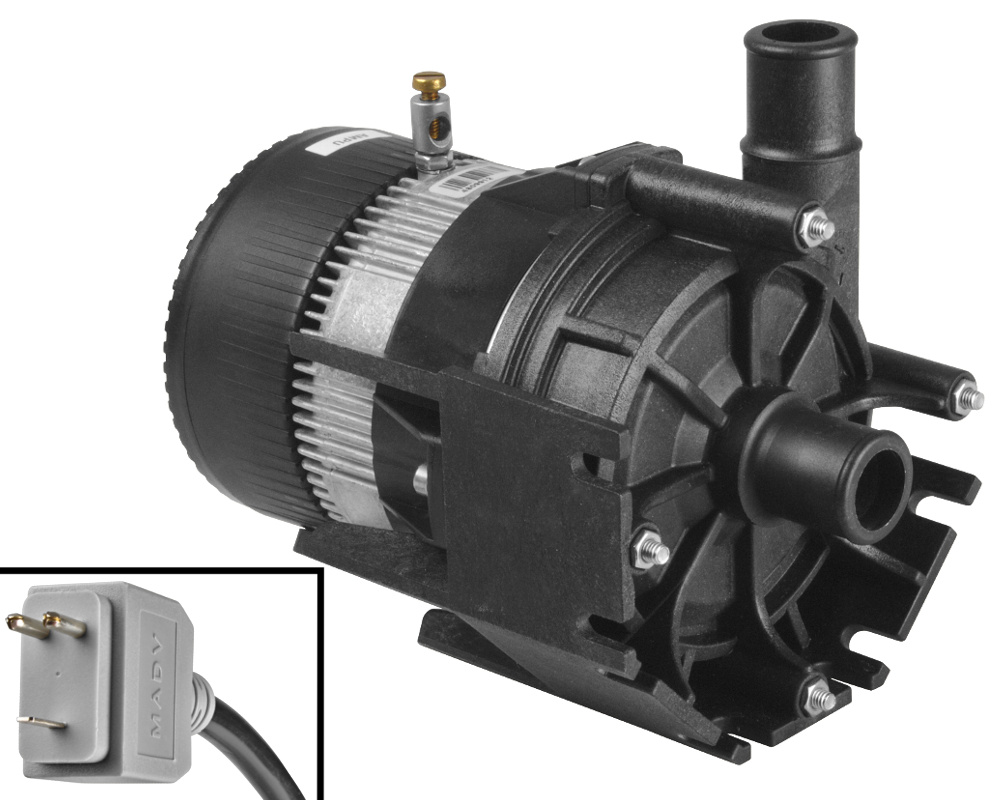

Laing E10 pump with special mini J&J plug

This small E10 filtration pump from Laing (Xylem) is the new version of the E10 model, used by Dimension One between 1998 and 2008. It has a mini J&J plug specific to their hot tubs (see photo 2).

It is built to run 24-hour per day. This clever little pump has no spindle, so it is almost impossible for the water to leak from the wet end into the motor.

Dimensions
Length: 152 mm
Width: 110 mm
Height: 125 mm

Pipe connections
3/4-inch barb, connecting to 3/4-inch clear pipe using a hose clip.

Technical specifications
Power: 60W, 1/40 HP
Maximum flow rate: around 40 litres / minute (listed as 11 GPM)

Cable and plug

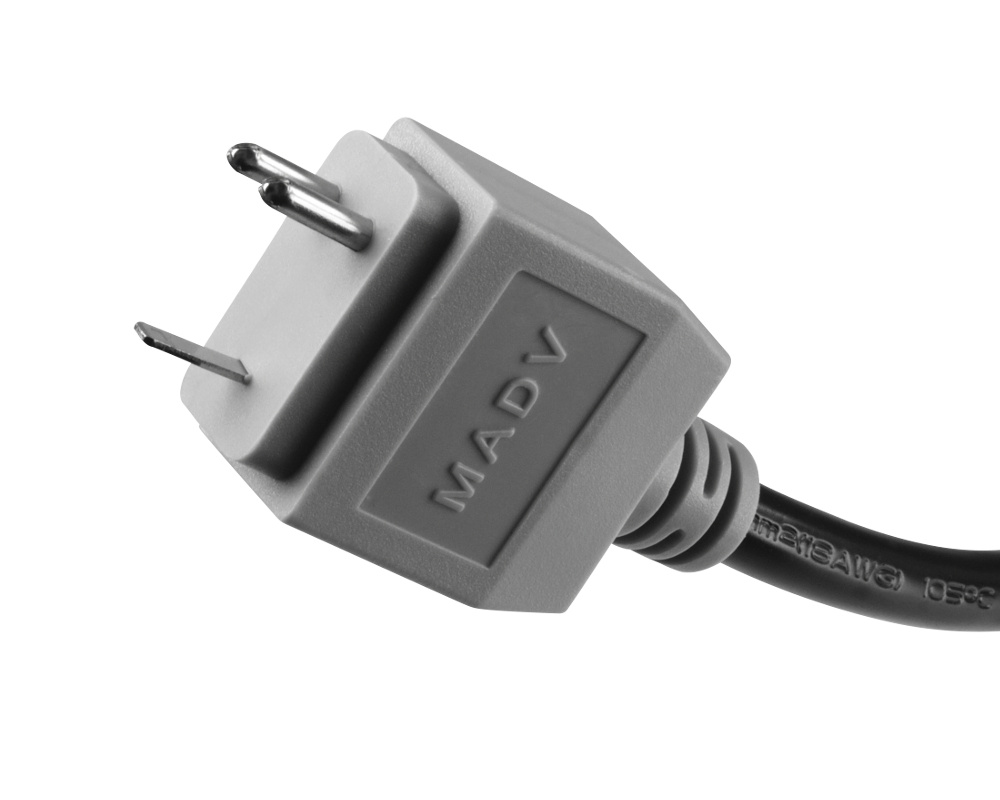

The pump is supplied pre-cabled with a specific mini J&J plug (length 40 cm).

Spare parts
The only replacement part of the Laing E10 pump is the rotor assembly (Ø 80 mm). Be careful not to confuse it with the Ø 68 mm version. Check the diameter of the part you want to replace!

Warranty
2-year Tubs Parts warranty

Part numbers
Laing: E10-NSHNNNN2W-01
Dimension One : 01512-321
