Laing E10 rotor assembly, Ø 68 mm

This rotor assembly has a maximum diameter of 68 mm and is a moving part - the only one - of the E6 pump and many E10 pumps (with 3/4" barb connection, 1" barb connection, for Dimension One spas, among others) from Laing.

Check the dimensions of the rotor assembly you want to replace, as we also offer an other model compatible with E10 pumps but with a diameter of 80 mm. These two models are not interchangeable.

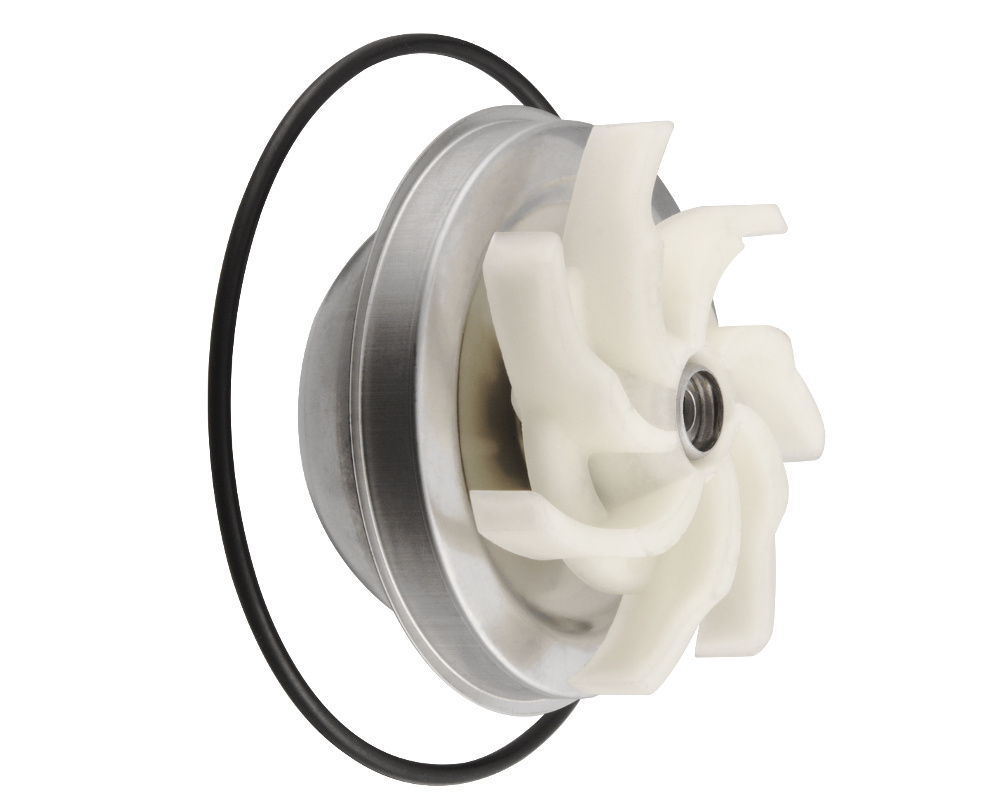

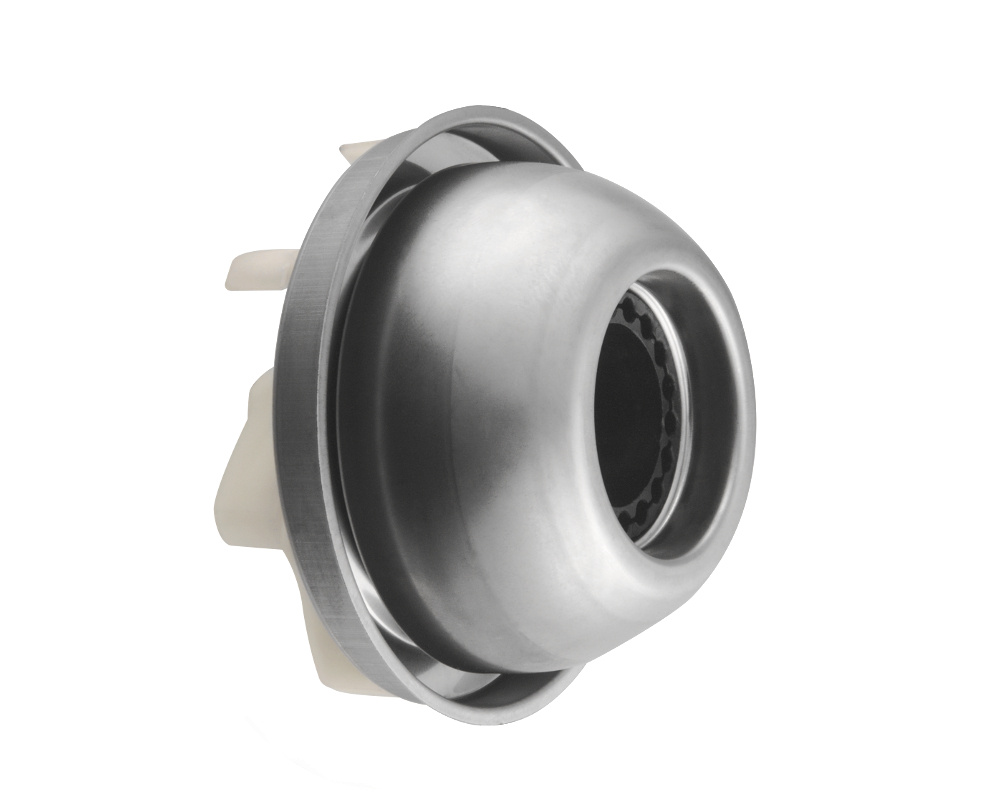

This kit includes the impeller, the magnetic section and the carbon bearing, as well as the o-ring. It is a one piece unit that cannot be dismantled further.

The rotor assembly allows you to repair the pump if it fails due to dry running or carbon bearing failure.

Before any replacement, clean the rounded and magnetic part of the rotor and motor assemblies thoroughly: in some cases, a simple cleaning may explain the failure. Also make sure that the ceramic ball of the motor is intact and undamaged. Otherwise, you will have to replace the entire pump.

Dimensions
Diameter: 68 mm
Height (including white part): 41 mm
Diameter of the white part: 61 mm
O-ring (outer diameter): 89 mm
