Laing E14 rotor assembly

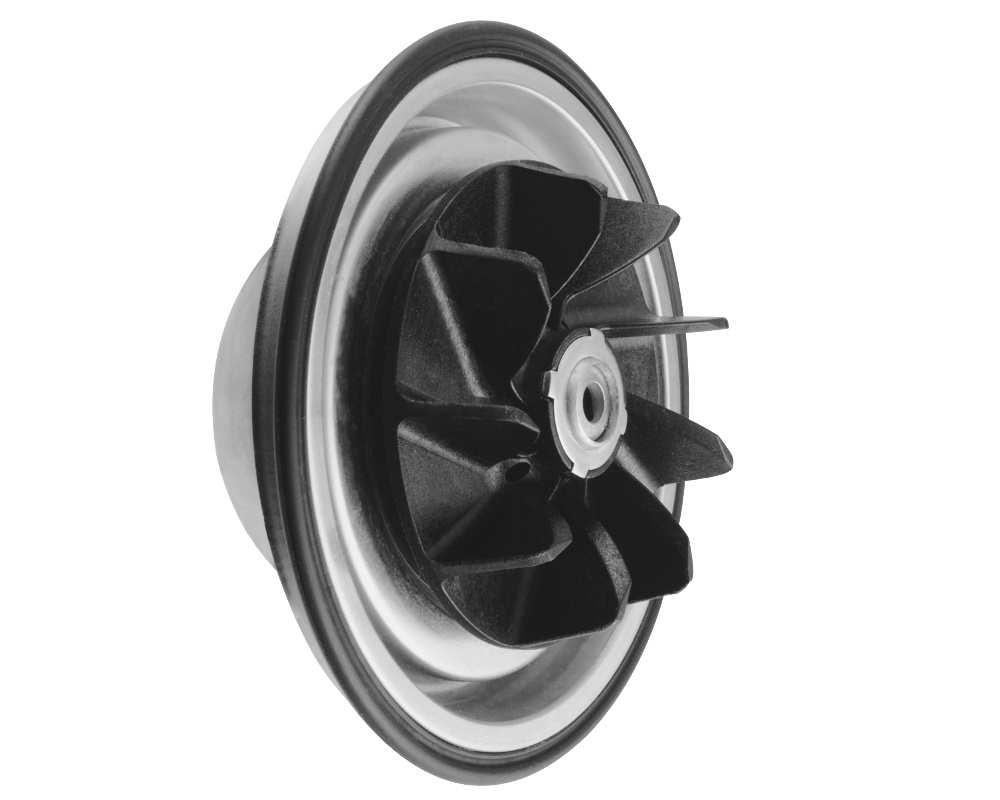

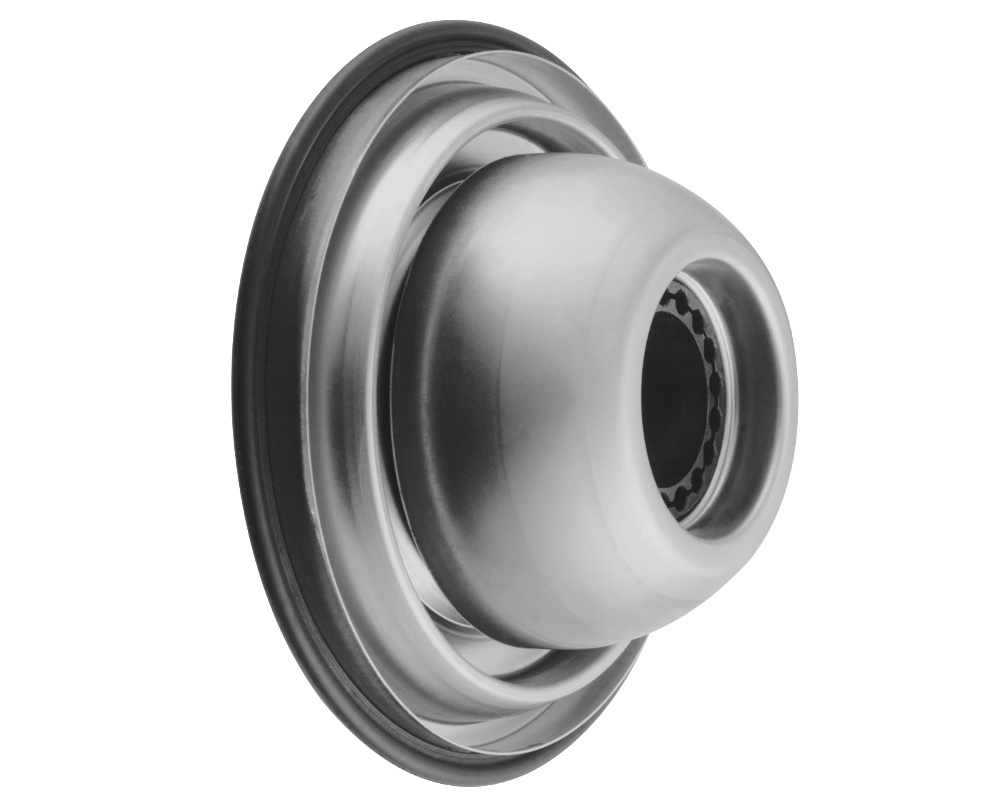

This rotor assembly is a moving part - the only one - of the Laing E14 circulation pump.

This kit includes the impeller, the magnetic section and the carbon bearing, as well as the o-ring. It is a one piece unit that cannot be dismantled further.

The rotor assembly allows you to repair the pump if it fails due to dry running or carbon bearing failure.

Before any replacement, clean the rounded and magnetic part of the rotor and motor assemblies thoroughly: in some cases, a simple cleaning may explain the failure. Also make sure that the ceramic ball of the motor is intact and undamaged. Otherwise, you will have to replace the entire pump.

Dimensions
Diameter: 80 mm
Height (including white part): 45 mm
Diameter of the white part: 56 mm
O-ring (outer diameter): 89 mm
