Leaf trap for Waterway pumps

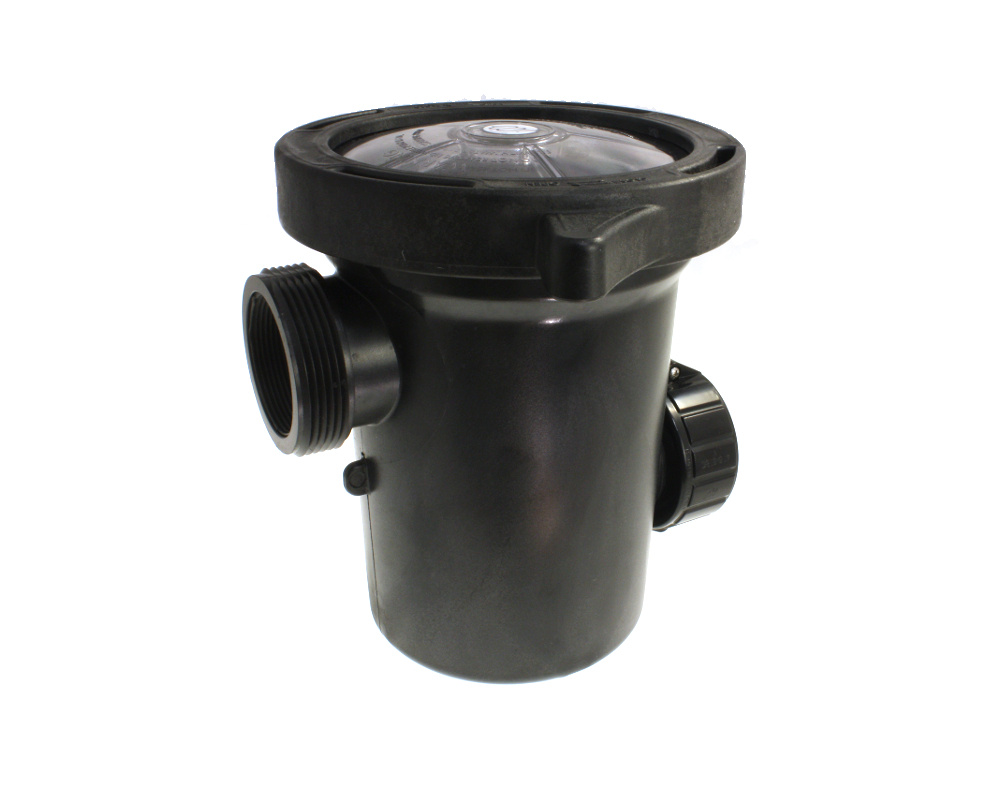

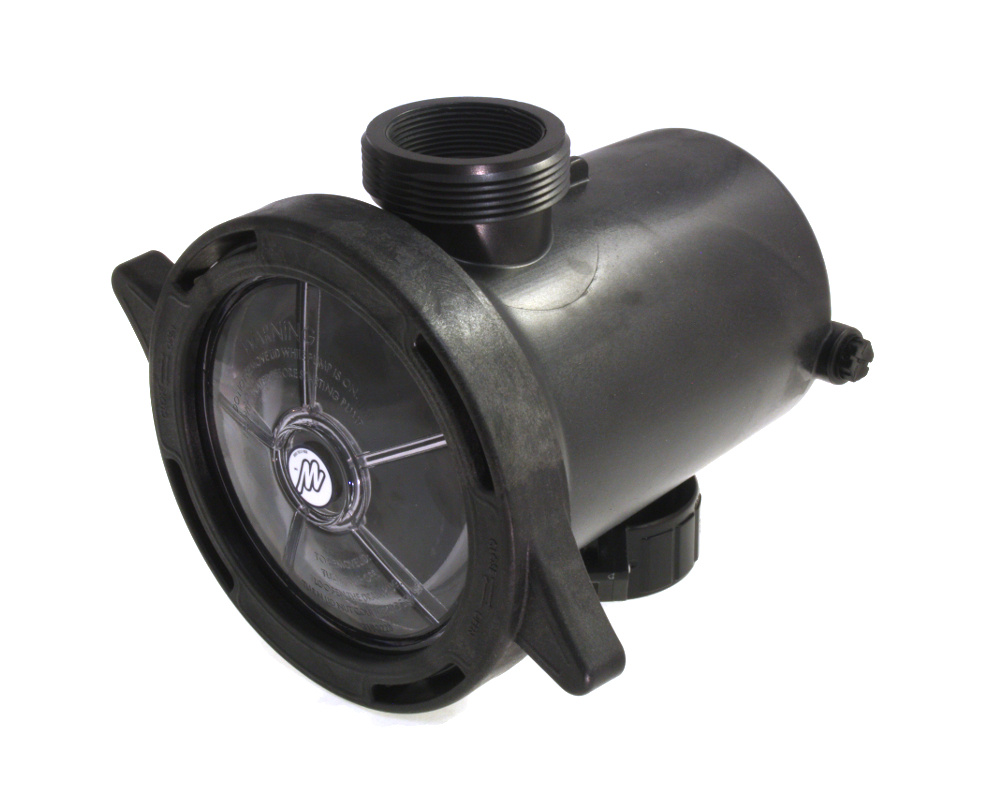

This cylindrical pre-filter, with a basket for catching leaves, can be screwed onto pumps with a 2-inch buttress-type thread, which is common among larger spa pumps.

Pipe connections
The pool side has a 78 mm male buttress thread (MBT), onto which you can screw any matching union. We offer compatible unions for 2 inch, 1.5 inch and 63 mm pipe.

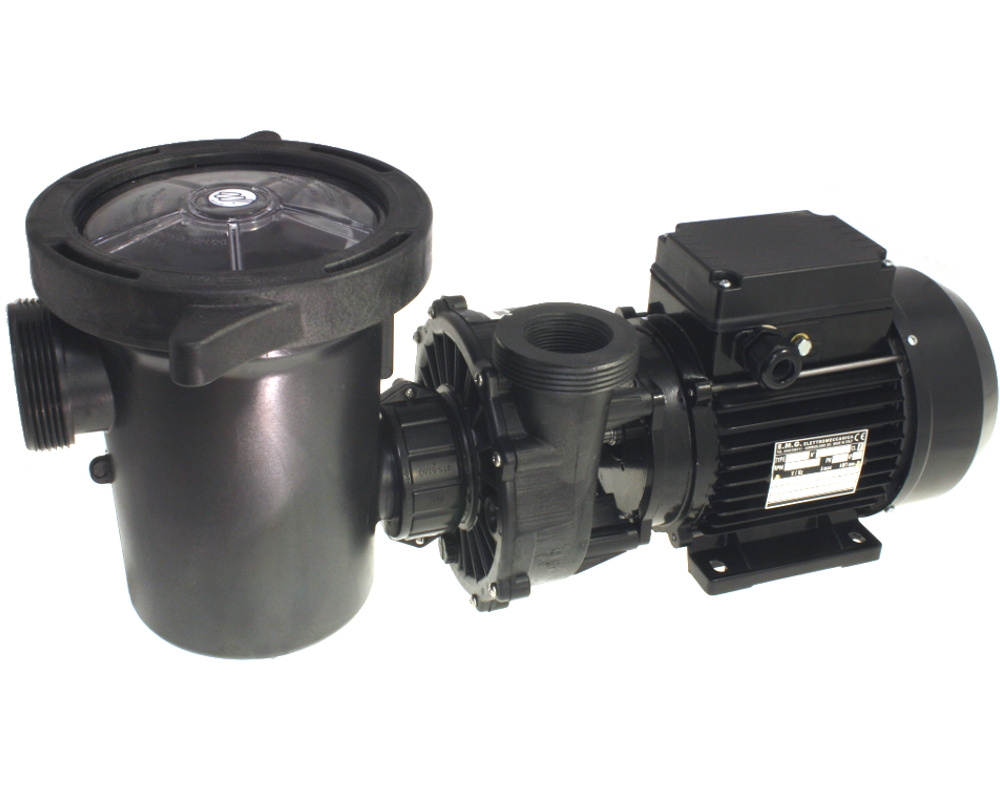

The pump side has a 78 mm split-nut and gasket, which connects directly to any pump with a 2-inch MBT thread.

The leaf trap also has a drain plug.

Dimensions
Diameter: 200 mm
Height: 265 mm
Width: 230 mm

Part numbers
Waterway: 310-6600
