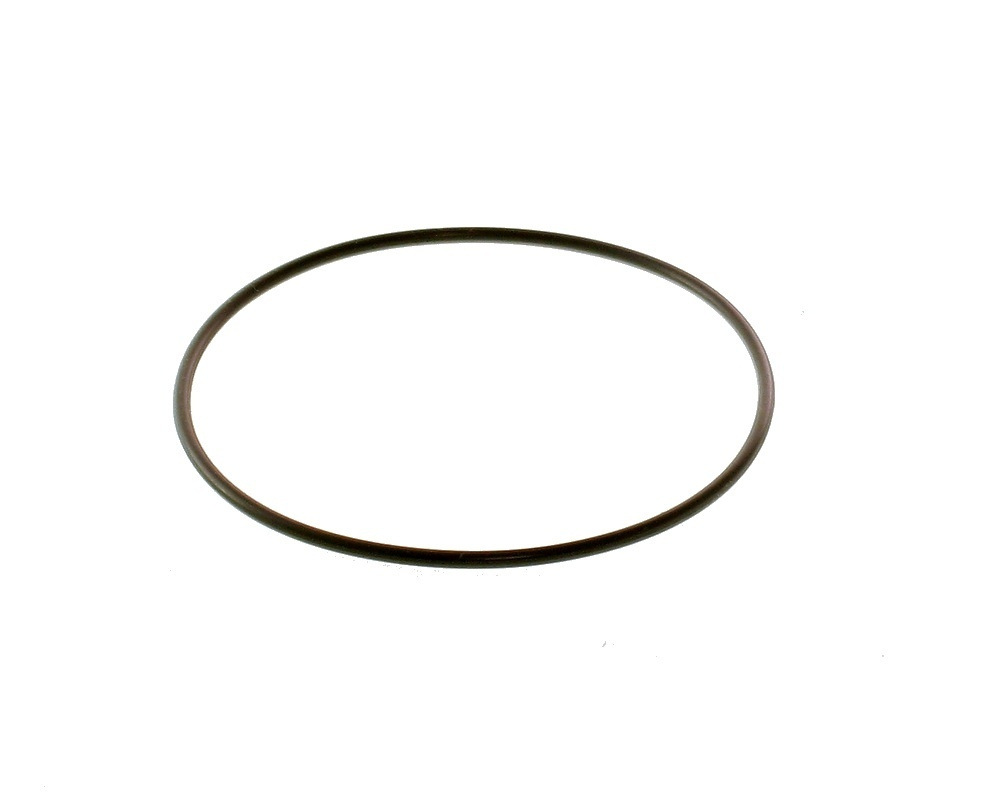

LX Whirlpool J-220 faceplate o-ring

This faceplate o-ring is a spare part for several models of pump manufactured by LX Whirlpool. It fits on the following faceplates

• B168-01, for JA150, JA200, TDA150 and TDA200
• B436-10(04) for LP single-speed and WP two-speed pumps
• Other faceplates that use an o-ring with a diameter between 155 mm and 170 mm, such as the discontinued ITT Magnaflow.

If your Whirlpool LX pump has a B351-03 faceplate, we advise you to use a slightly larger o-ring from another manufacturer: the Waterway 805-0261.

Dimensions
Inside diameter: 152 mm
Outside diameter : 159 mm
Thickness: 3.5 mm
