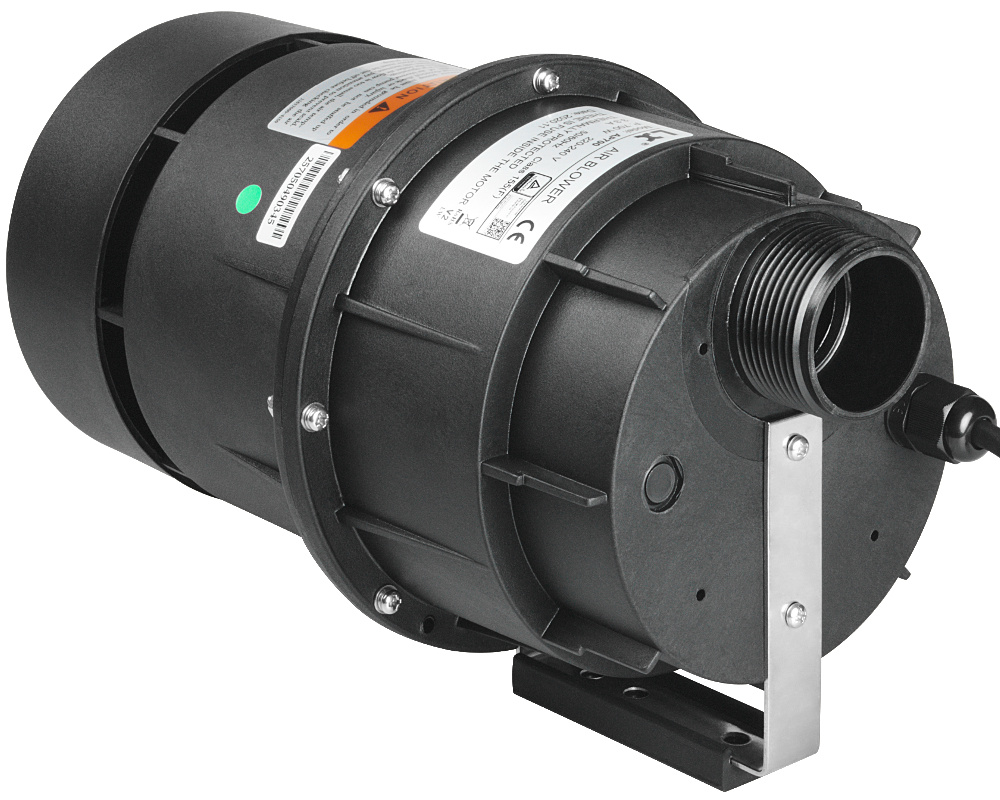

LX Whirlpool 900W blower - AP900-V2

The LX Whirlpool AP900-V2 air blower is used by several portable hot tub brands, and is a suitable replacement part for almost any spa. Very powerful, it is particularly recommended for swim spas.

If your old blower died because water got into it then check that the one-way valve on the air line is working correctly before installing a new one.

This blower is not suitable for commercial use.

Technical specifications
Power: 900W
Voltage: 220-240V
Current: 4.5A
Air volume: 2,5m³/min
Jets Qty (pc): 20-40
Noise level: <74dB

Dimensions
245 x 110 x 150 mm

Connection
The blower comes with a union for 1-inch (33 mm) pipe.

Cable and plug
The blower comes with a 150 cm cable and an AMP plug. For a Mini J&J connection, an additional adapter is required.

2-year Tubs Parts warranty

Note that the 2-year warranty does not apply to the carbon brush, also known as a motor brush, a graphite bonding agent that conducts the electrical current between stationary and rotating wires inside the motor. The carbon brush is a wearing part with a life expectancy of approximately 1500 hours.

Part numbers
LX Whirlpool: AP900-V2
The "-V2" means that these models contain the new version of the motor. They are perfectly compatible with older models, without "-V2".

Plug types

AMP plug

J&J plug

in.link plug
