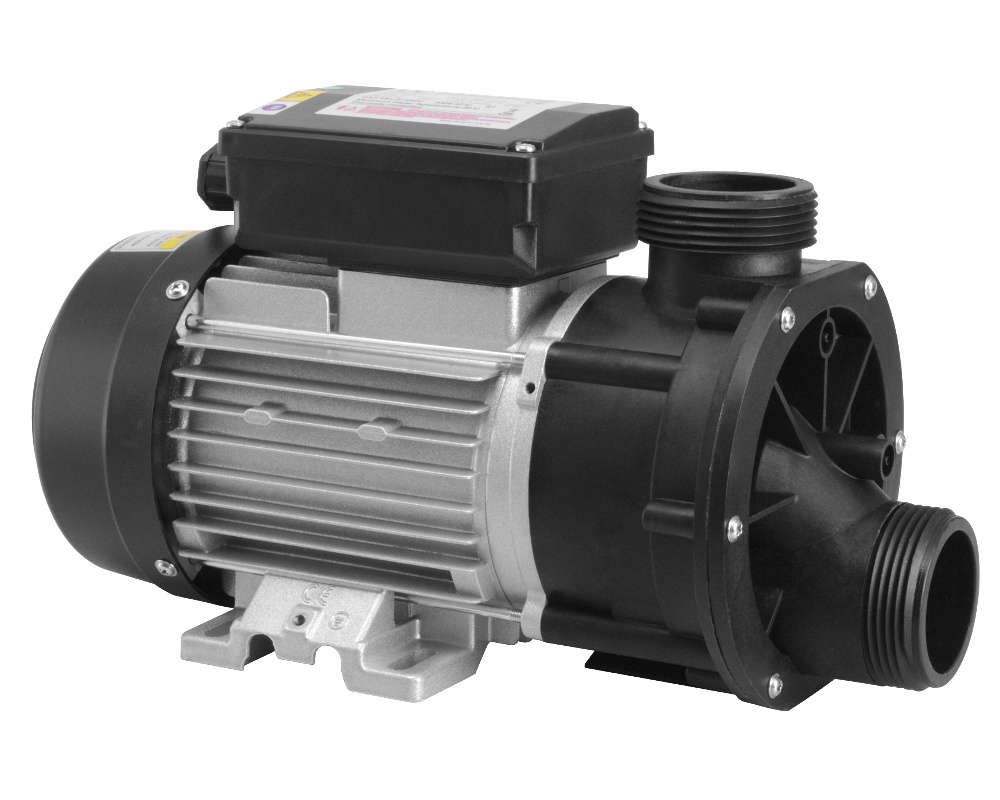

LX Whirlpool DH1.0 circulation pump

The LX Whirlpool DH1.0 is a circulation pump used by many spa manufacturers.

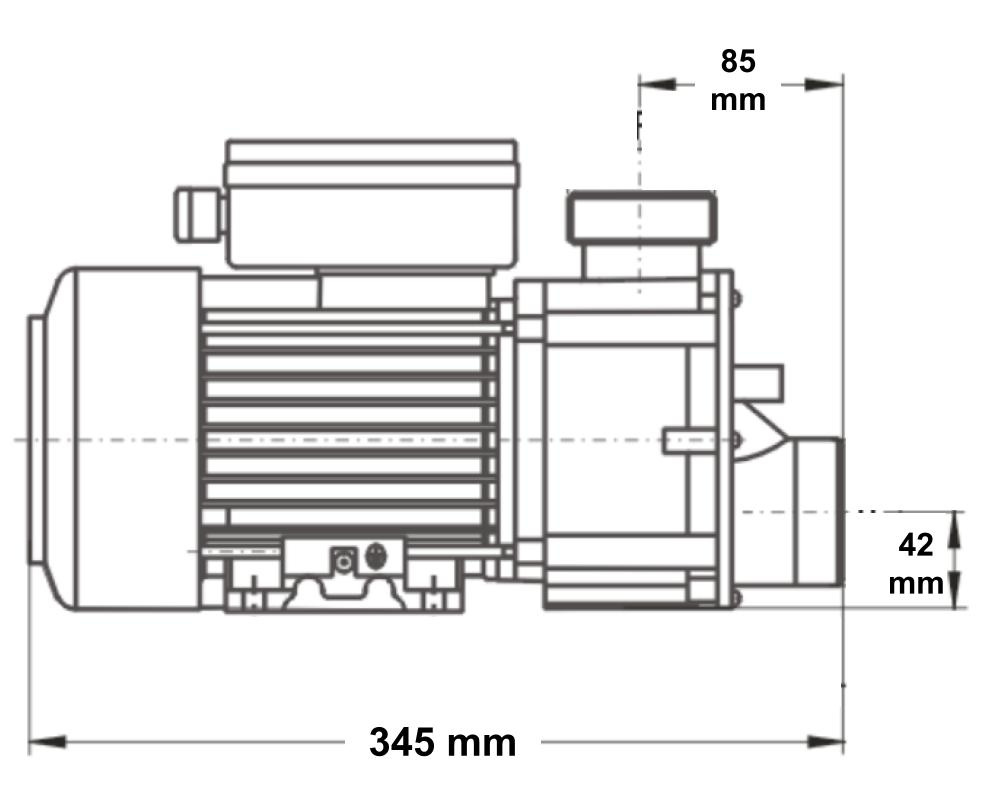

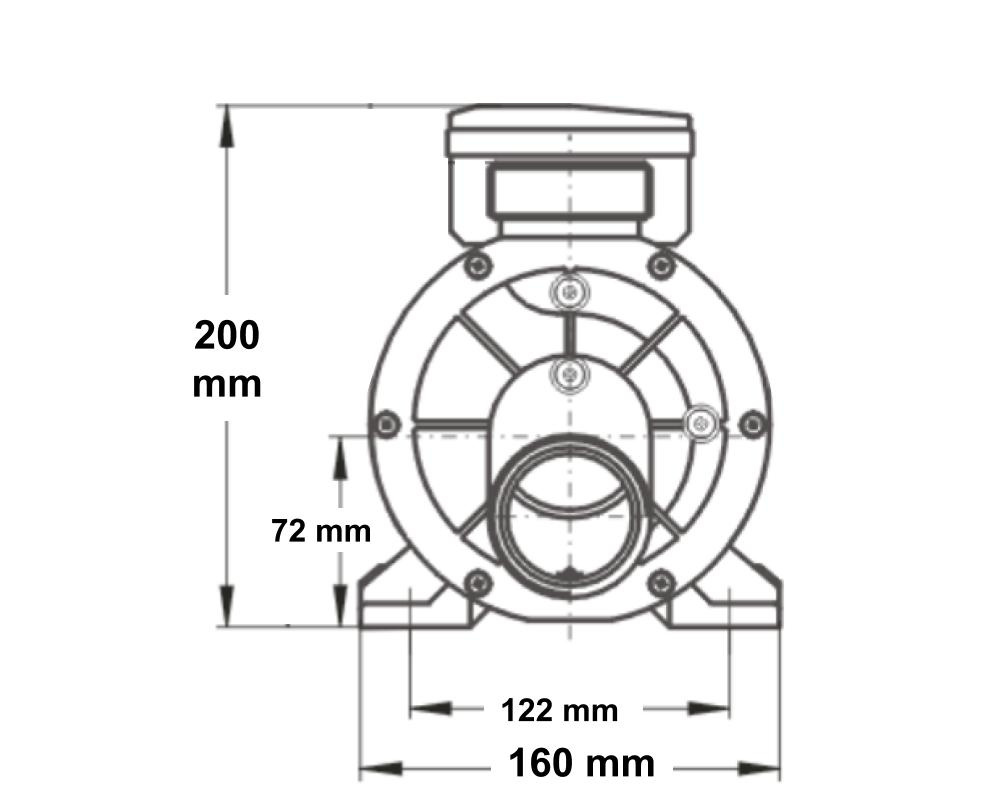

Dimensions
Length: 345 mm
Height: 200 mm
Width: 160 mm

Technical specifications
Power : 750W - 1,0HP
Speed : 2850 rpm
Maximum flow rate : 340 litres/minute

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
We offer unions for 1.5-inch pipe

Cable and plug
The LX Whirlpool DH1.0 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Spare parts
We have the major spare parts for this pump

Warranty
2 years Tubs Parts warranty

Part numbers
LX Whirlpool : DH1.0
MSpa : B9300524JII (MSpa JET II)

Plug types

AMP plug

J&J plug

in.link plug
