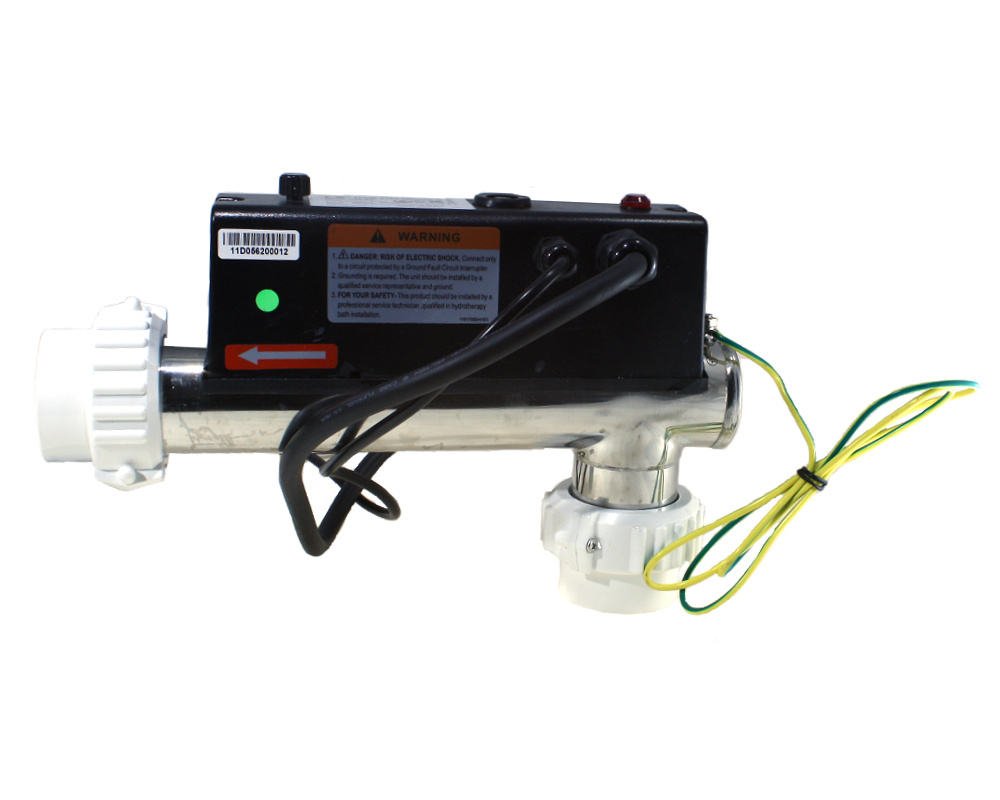

LX Whirlpool H30-R2 heater

The H30-R2 comes with a pressure switch, to prevent the heater from starting up without the pump running.

On some spas, this pressure switch is connected directly to the control system by a cable. If your current heater is equipped with two cables (a large power cable and a small control cable), you will need the version WITH control cable. If you only see the power cable, order the version WITHOUT control cable. If there is a problem with the resistor, you can replace it with the 3 kW model. In in doubt, please contact us!

This heater is also a very good replacement for the H20-R2 models. The H30 will heat up faster than the H20 version, but it will not consume more energy in total (the heating is more intense, but for a shorter time).

Technical specifications
Power: 3 kW
Current: 13.6 A

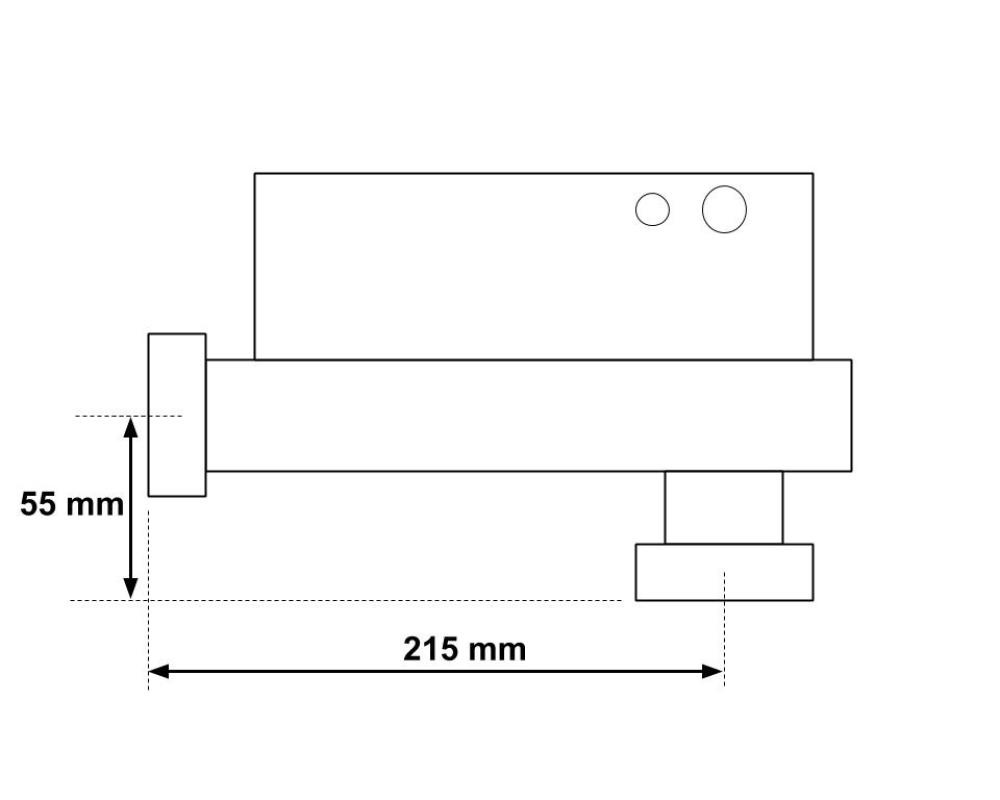

Dimensions
Length: 26 cm
The LX Whirlpool H30-R1 heater is supplied with unions and o-rings for 1.5-inch (48 mm) pipes.

Warranty
2-year Tubs Parts warranty

Part numbers
LX Whirlpool : H30-R2
Is a direct replacement for the Rooster RSL-LT-3
