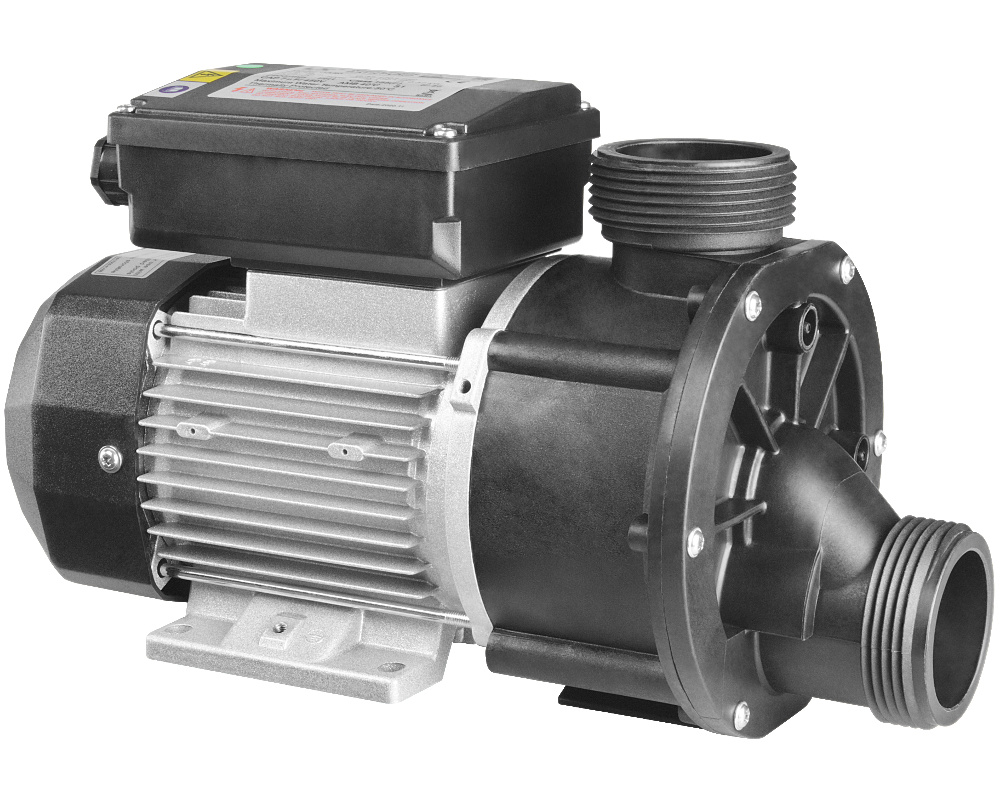

LX Whirlpool JA35 circulation pump
The LX Whirlpool JA35 is a circulation pump with 0.35 HP, and is used by many spa manufacturers.
We sell all pumps in the JA series: JA50, JA75 and JA100 as 24-hour circulation pumps, and JA120, JA150 and JA200 as single-speed pumps.
Power: 250 W, 0.35 HP
Speed: 2850 rpm
Maximum flow rate: 150 litres/minute
Capacitor: 7 µF

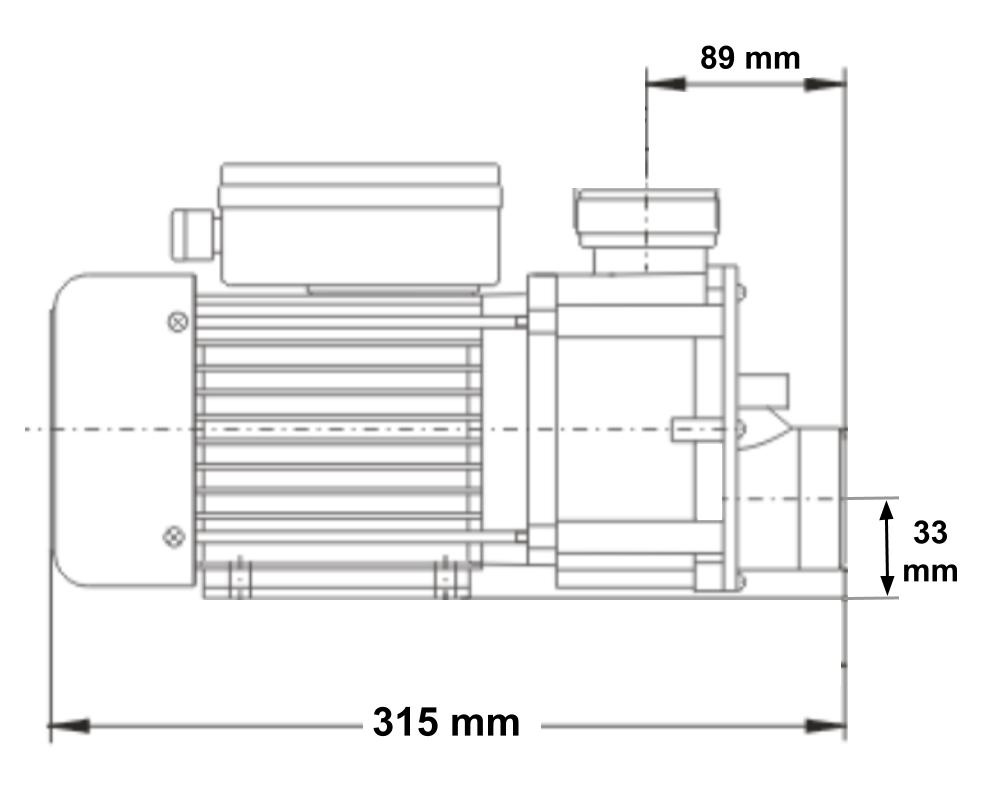

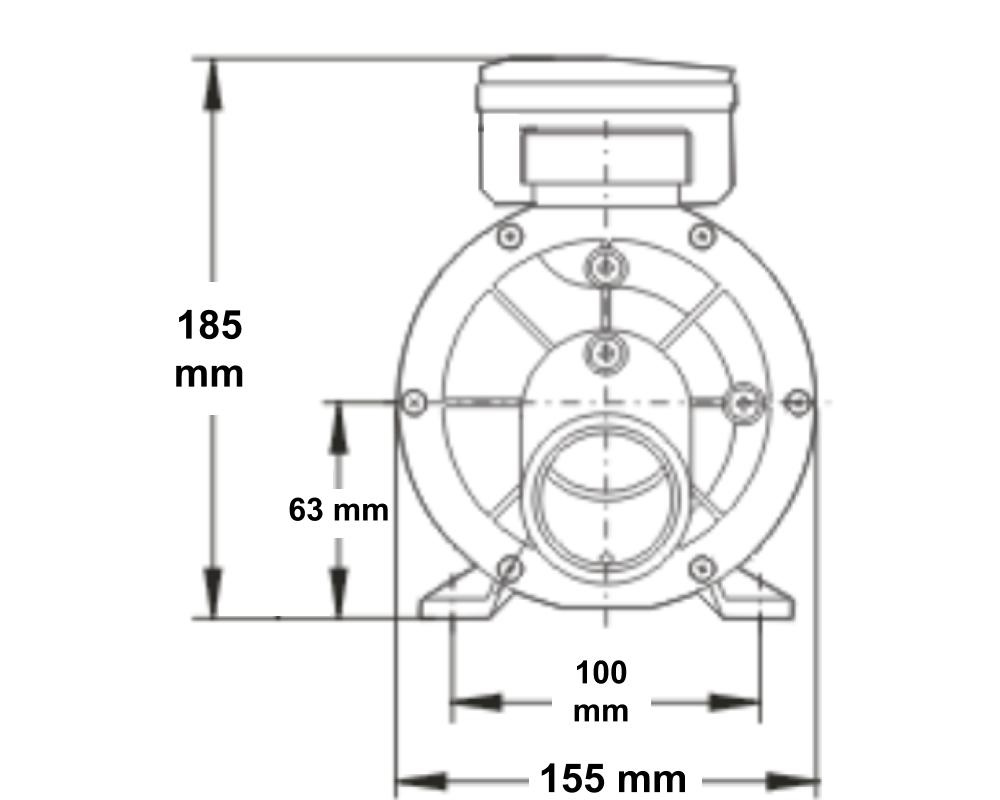

Thread diameter: 62 mm (1.5-inch MBT).
Pump unions and o-rings for 1.5-inch pipes are supplied.
Cable and plug
The LX Whirlpool JA35 circulation pump is supplied with a 130 cm cable and an AMP plug. We can recable it for you with a mini J&J plug.
Similar pump
The Koller 0.27 HP pump is a good option to replace a JA35 pump. The LX pump is more powerful but has the same thread size as the 0.27 HP Koller self-drain pump. The dimensions however are slightly different. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Plug types
AMP plug
J&J plug
in.link plug
