LX Whirlpool LP200 single-speed pump, 2HP

Available in 1 week
199,20€
incl. 20% VAT
Quantity:
LX Whirlpool LP200 single-speed pump, 2HP - Click to enlarge
LX Whirlpool LP200 single-speed pump, 2HP - Click to enlarge
LX Whirlpool LP200 single-speed pump, 2HP - Click to enlarge
LX Whirlpool LP200 single-speed pump, 2HP - Click to enlarge
LX Whirlpool LP200 single-speed pump, 2HP - Click to enlarge

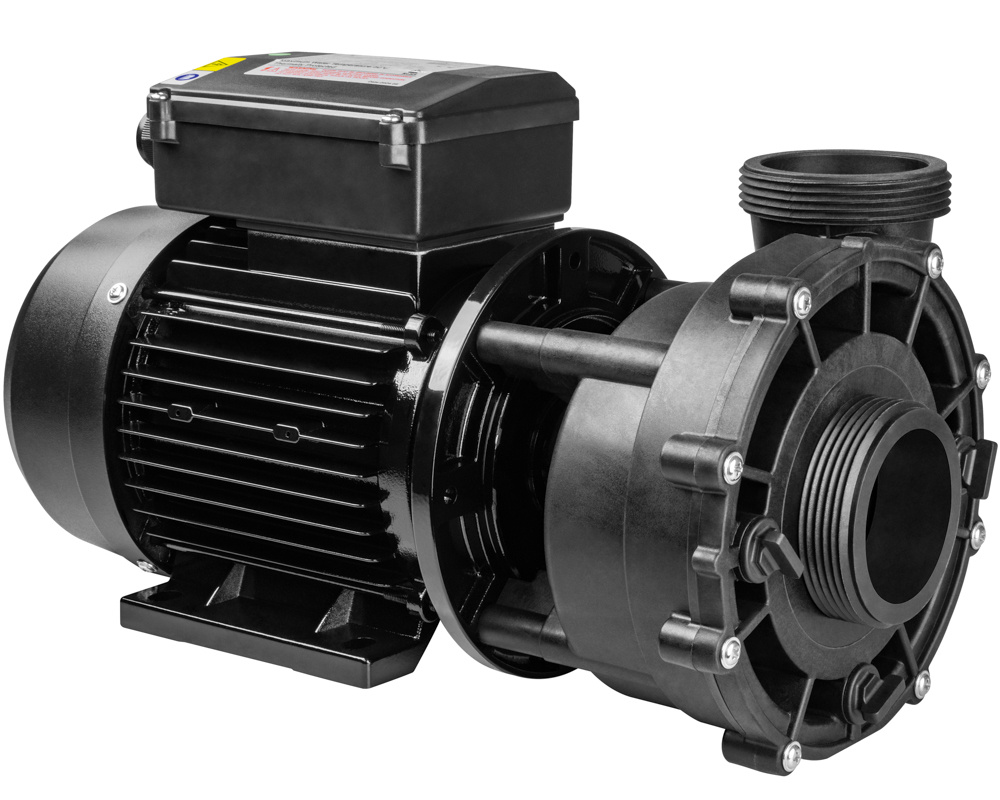

The LX Whirlpool LP200 is a single-speed hot tub massage pump.

We also sell other pumps from the same series including the LP150, LP250 and LP300.

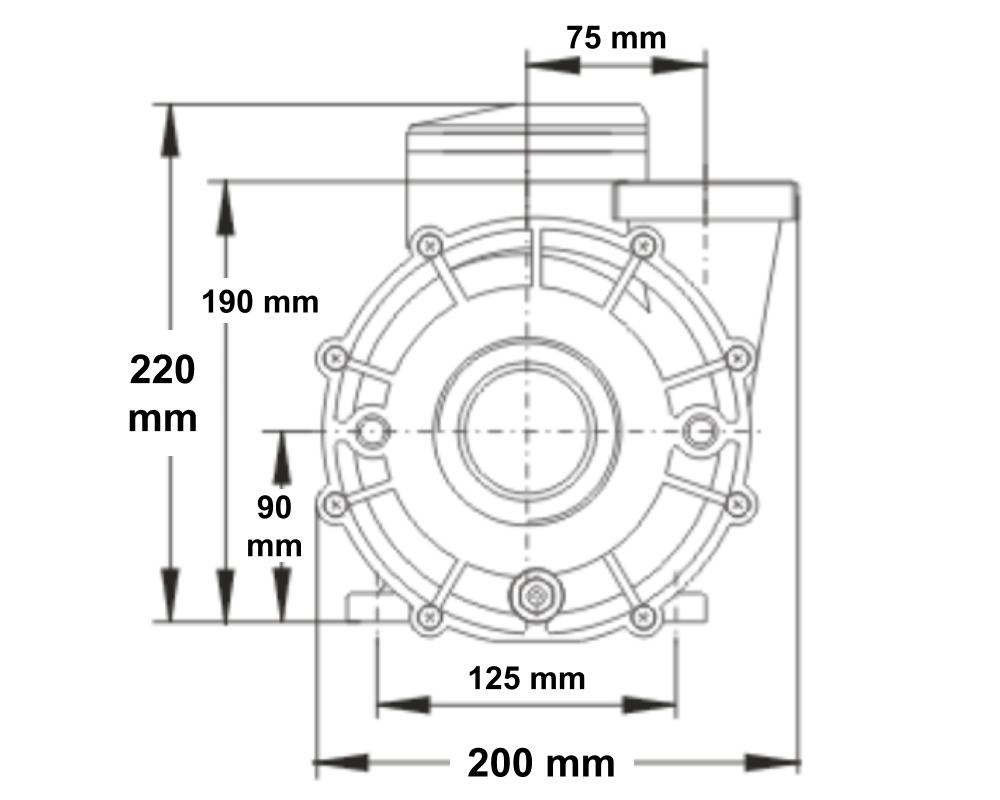

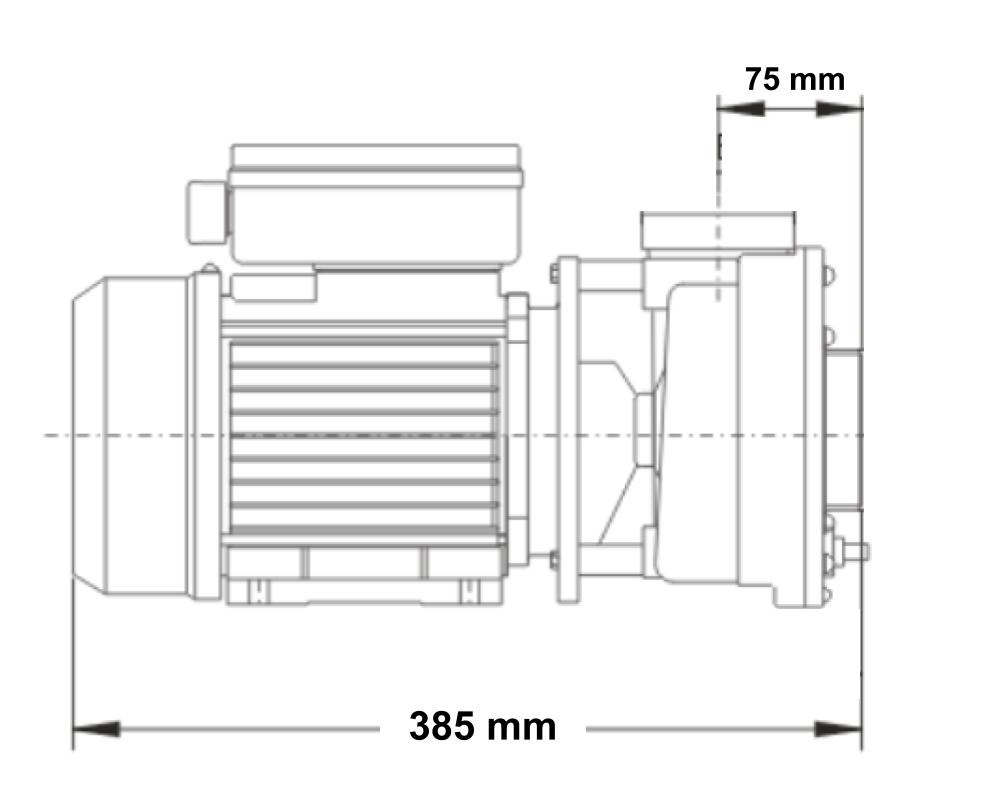

Dimensions (without fittings)
Length: 385 mm
Width: 200 mm
Height: 220 mm

Technical specifications
Power: 1,5 kW (2,0 HP)
Maximum flow rate: 535 litres/minute
Pipe connections: 78 mm thread and unions for 2-inch (60 mm) pipes

Cable and plug
The LX Whirlpool LP200 pump is delivered pre-cabled with an AMP plug. You can also choose to have the pump pre-cabled by our team with a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Similar pumps
The Koller 2 HP and the Aqua-Flo Flo-Master XP2 pumps have the same motor power and thread size as the LP200, and roughly similar dimensions. If you want to replace your pump with another model, you must check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Watkins / HotSpring: 37066-03, parfois étiqueté "Watkins Wavemaster 800"
Kinedo: SPOM010
Wellis: ACM0079
Volition: 20PL ou PL200
Jacuzzi and Sundance Spas Theramax: replaces part numbers 6500-117, 6500-123, 6500-124, 6500-124a, 6500-239, 6500-240 and 6500-294

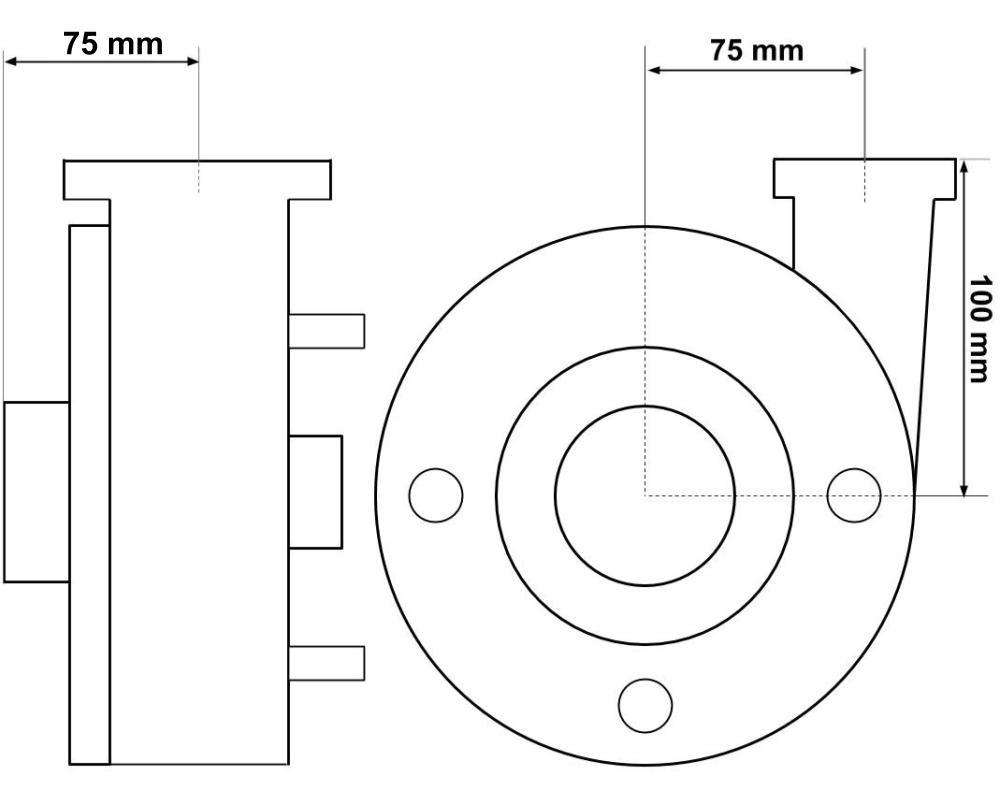

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to top left

Exit to top left

Exit to right

Exit to right

Exit to top right

Exit to top right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
