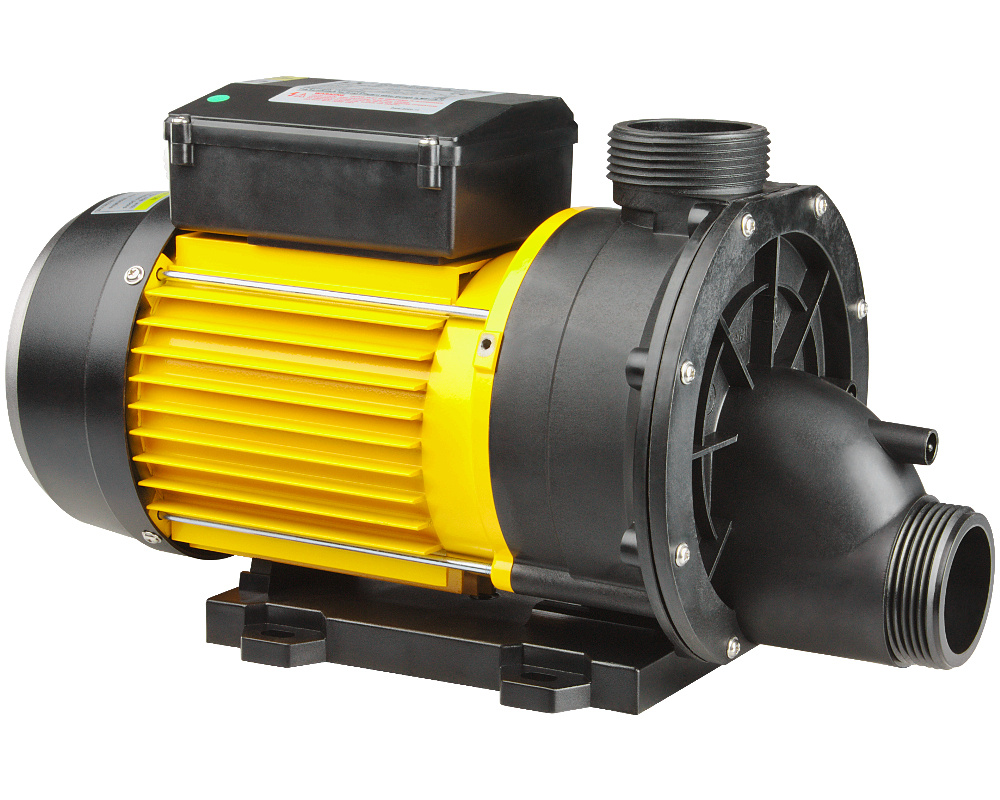

LX Whirlpool TDA200 single-speed pump, 2HP

Available in 7 weeks

185,00€

incl. 20% VAT

LX Whirlpool TDA200 single-speed pump, 2HP - Click to enlarge

The LX Whirlpool TDA200 pump is frequently installed on the single-speed models of spas manufacturers. It is used for massage jets.

Tubs Parts also sells the TDA100 version of this pump.

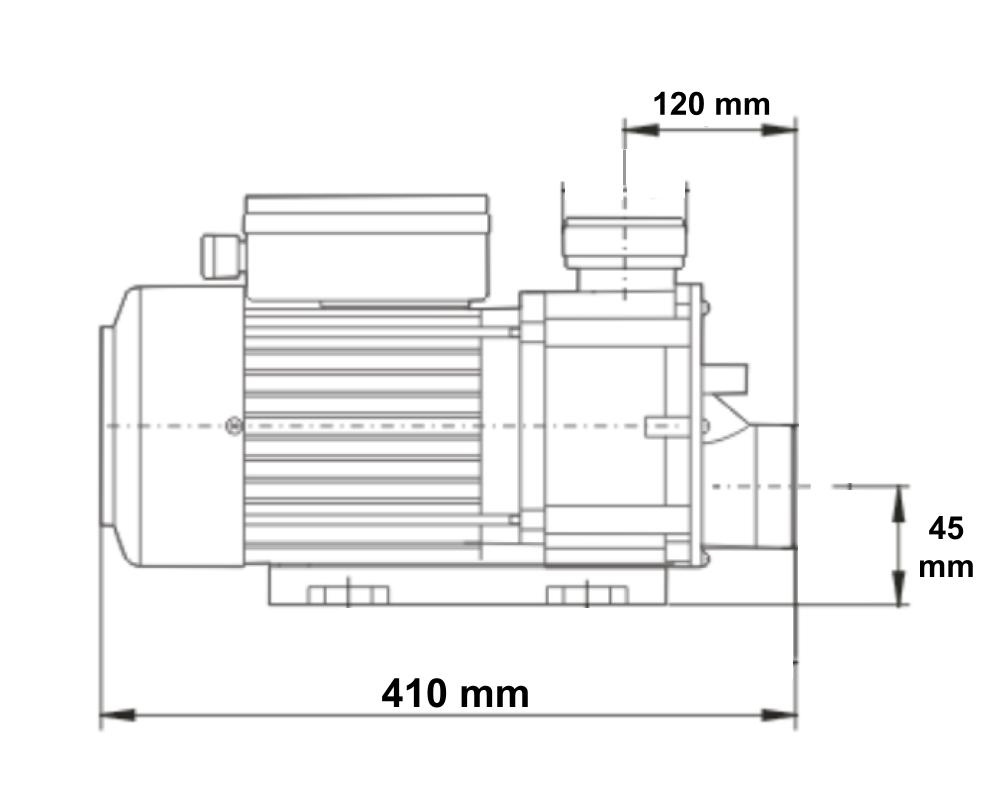

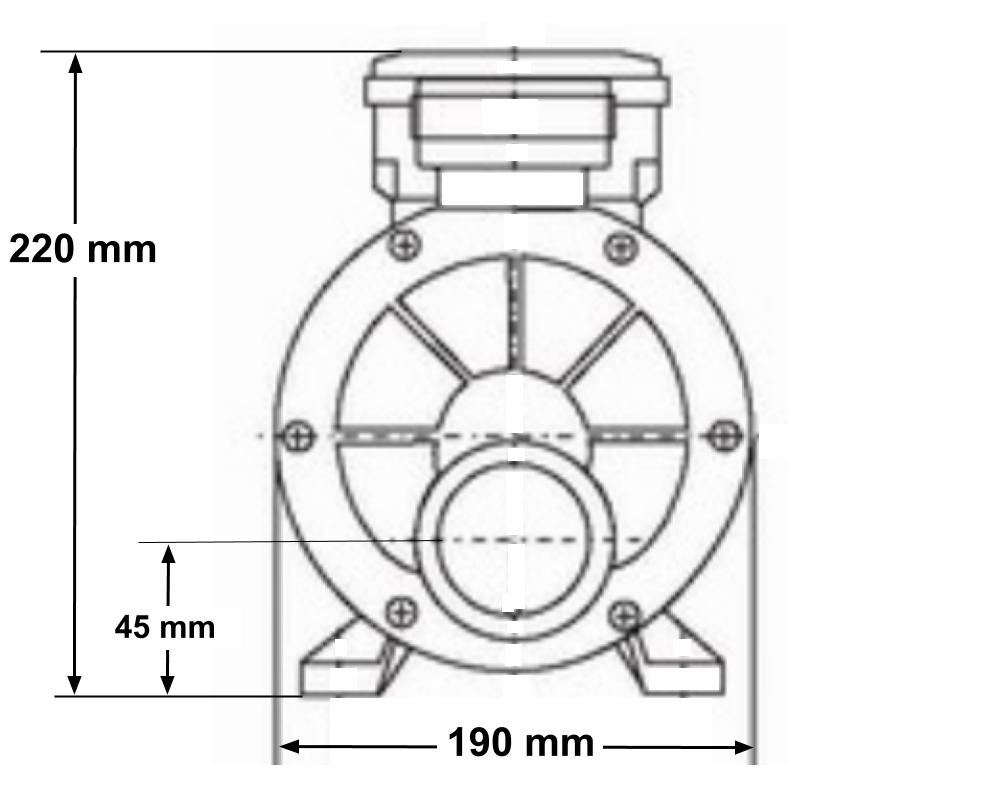

Dimensions
Length: 410 mm
Width: 190 mm
Height: 220 mm

Technical specifications
Power: 1,5 kW (2,0 HP)
Maximum flow rate: 450 liters/minute

Pipe connections
Male thread (1.5-inch MBT) with a 48 mm outside diameter for 1,5" union.

Cable and plug
The LX Whirlpool TDA200 pump is delivered pre-cabled with an AMP plug (length 130 cm). You can also choose to pre-cabled the pump by our team with a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Similar pump
The LX JA200 pump has the same motor power and dimensions as the TDA200.

Warranty
2-year Tubs Parts warranty
