LX Whirlpool WE10 circulation pump

In stock
120,00€
incl. 20% VAT
Cable and plug
Quantity:
LX Whirlpool WE10 circulation pump - Click to enlarge
LX Whirlpool WE10 circulation pump - Click to enlarge
LX Whirlpool WE10 circulation pump - Click to enlarge
LX Whirlpool WE10 circulation pump - Click to enlarge

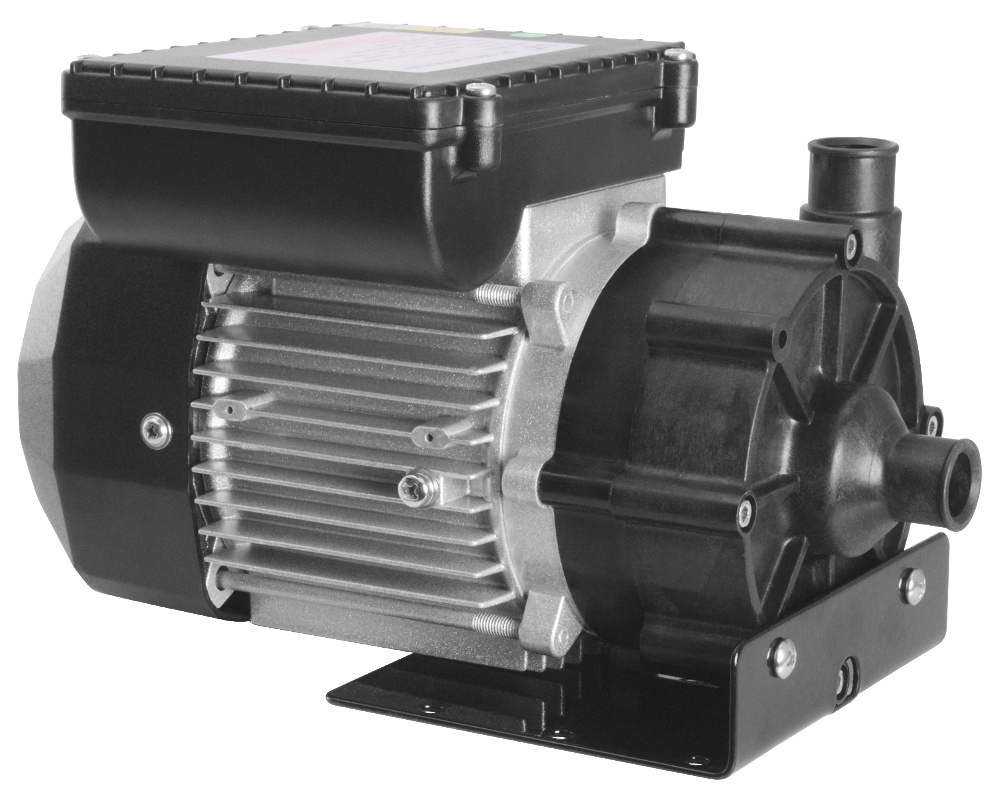

The LX Whirlpool WE10 is a 180 W circulation pump used by many spa manufacturers.

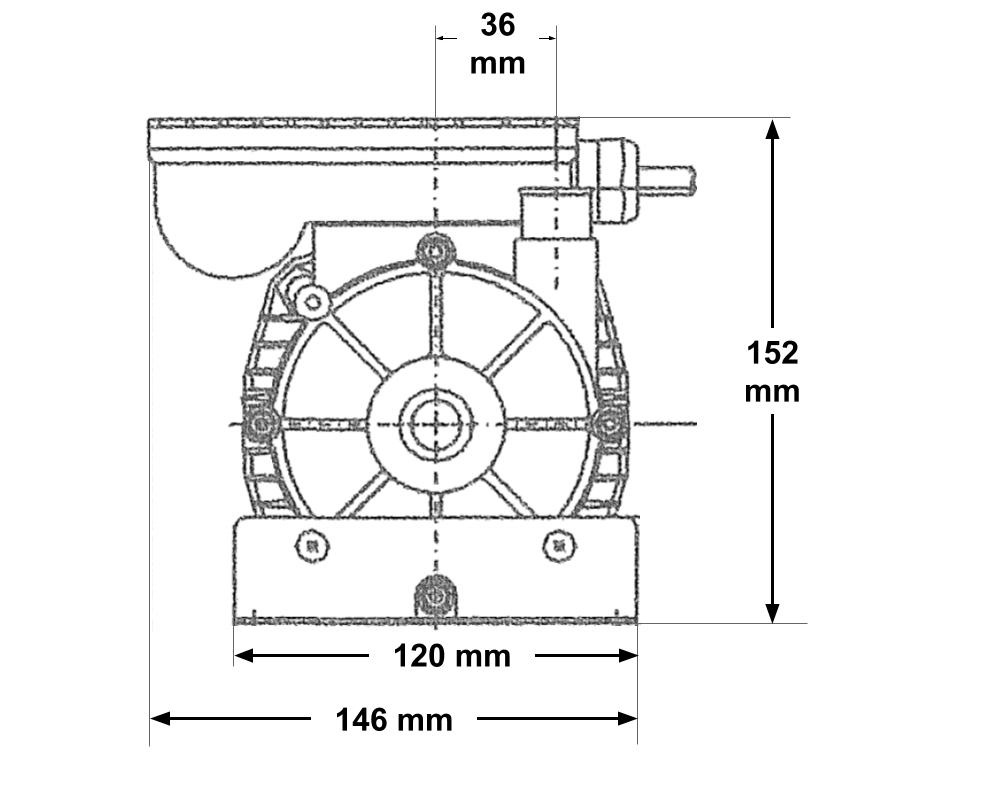

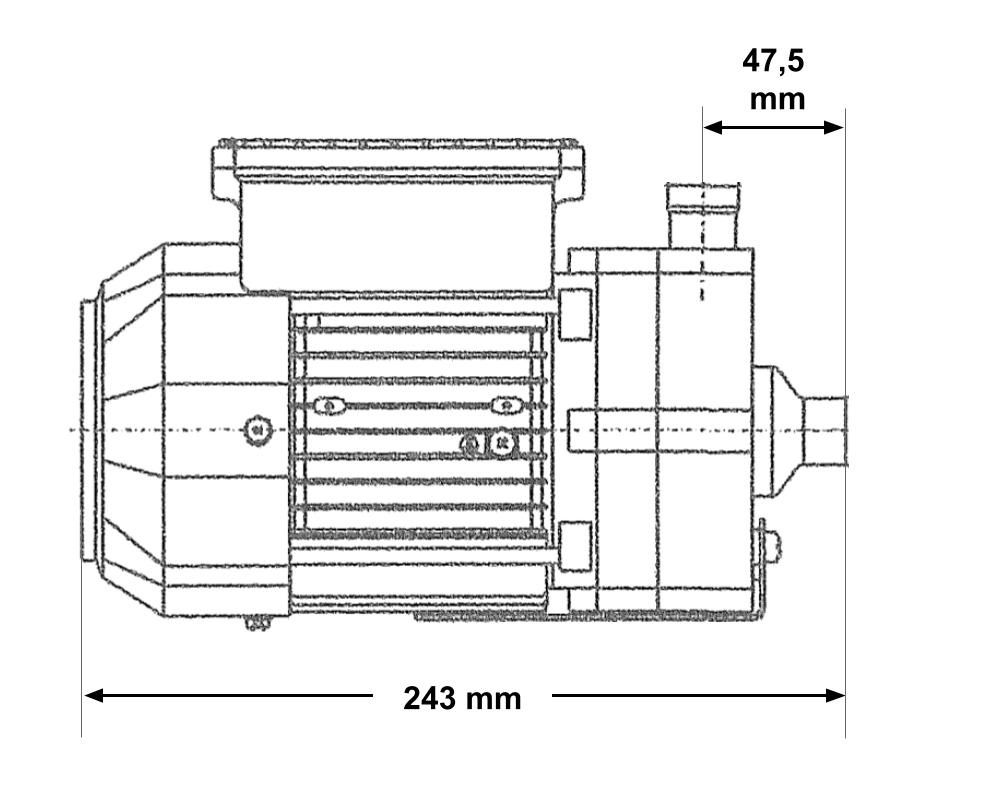

Dimensions
Length: 243 mm
Width: 146 mm
Height: 152 mm

Technical specifications
Power: 180 W
Current: 0.8 A
Speed: 2850 rpm
Maximum flow rate: 40 litres/minute

Plumbing connections
3/4" barb, connecting to 3/4-inch clear pipes using hose clips.

Cable and plug
The LX Whirlpool WE10 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Similar pump
The Laing E10 3/4" smooth connection pump is less powerful (60W) but has similar dimensions and flow rate to the WE10.

Warranty
2 years Tubs Parts warranty

Part numbers
LX Whirlpool : WE10

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
