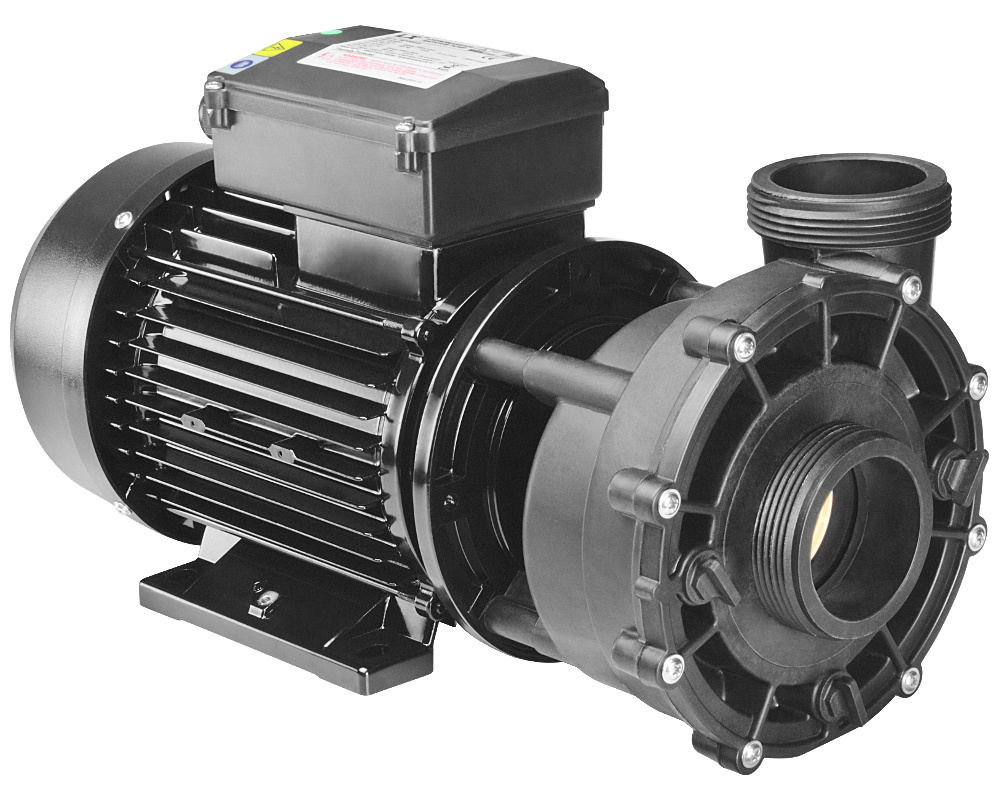

LX Whirlpool WP300-II 2-speed pump
The LX Whirlpool WP300-II 2-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets. We also offer the WP200-II and WP250-II versions of this pump, with different motor powers.
The pump comes with unions for 2-inch pipe (diameter 60 mm). We have a wide range of spare parts for this pump.

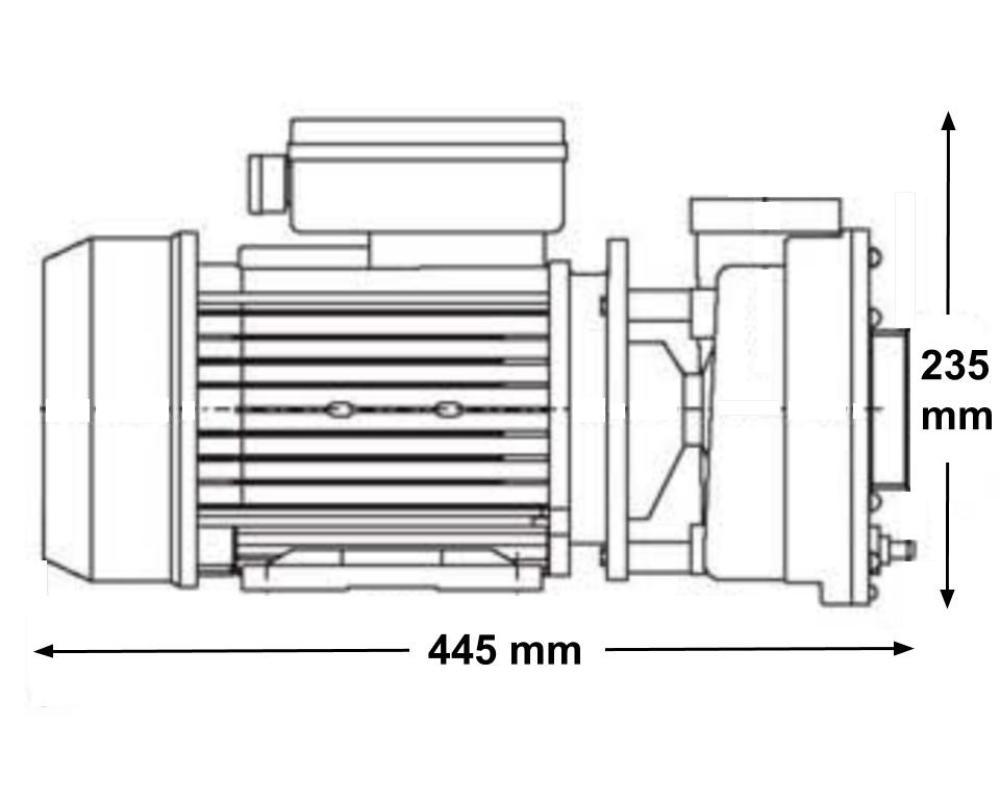

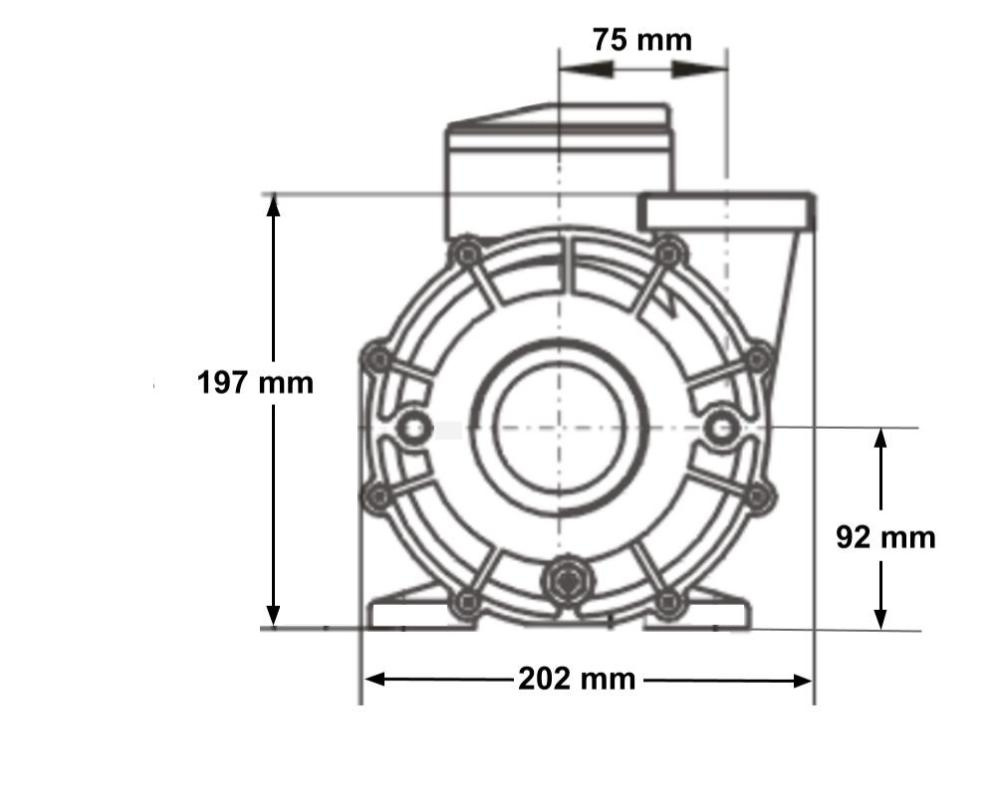

Dimensions
Length: 445 mm
Width: 202 mm
Height: 235 mm
Technical specifications
Power high speed: 2,2kW (3.0 HP)
Power low speed: 0,45 kW
Maximum flow rate: 730 litres/minute
Connections

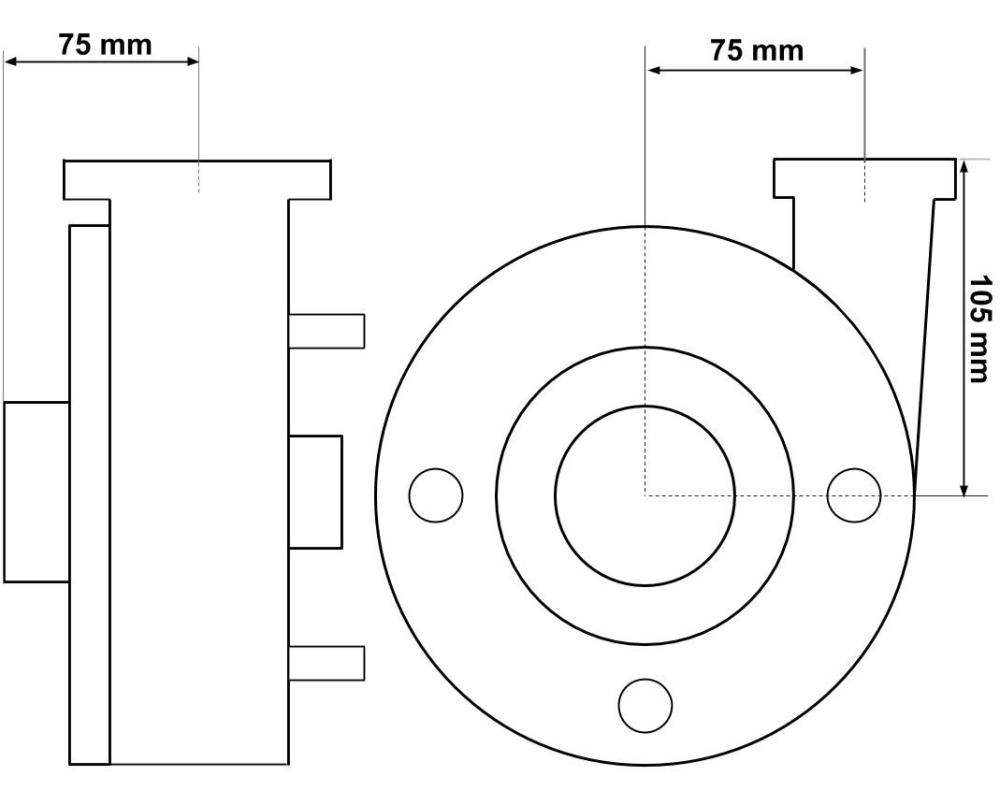

Outflow and intake: male thread with a 78 mm outside diameter.
The LX Whirlpool WP300-II pump is supplied with unions and gaskets for 2-inch pipes (diameter 60 mm).
Cable and plug
The LX Whirlpool WP300-II pump is available pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a 240 cm AMP plug, a mini J&J plug or an in.link plug (length 100 cm).
The Koller 3 HP, Waterway Executive and the Aqua-Flo Flo-Master XP2e pumps have the same motor power and thread size as the WP300-II, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Part numbers
Volition: 30WP
Wellis: ACM0394
Jazzi: JAPU11
Wet end orientation
Standard exit
Exit to left
Exit to top left
Exit to right
Exit to top right
Plug types
AMP plug
J&J plug
in.link plug
