MSpa suction & return fitting for Lite and Comfort spas

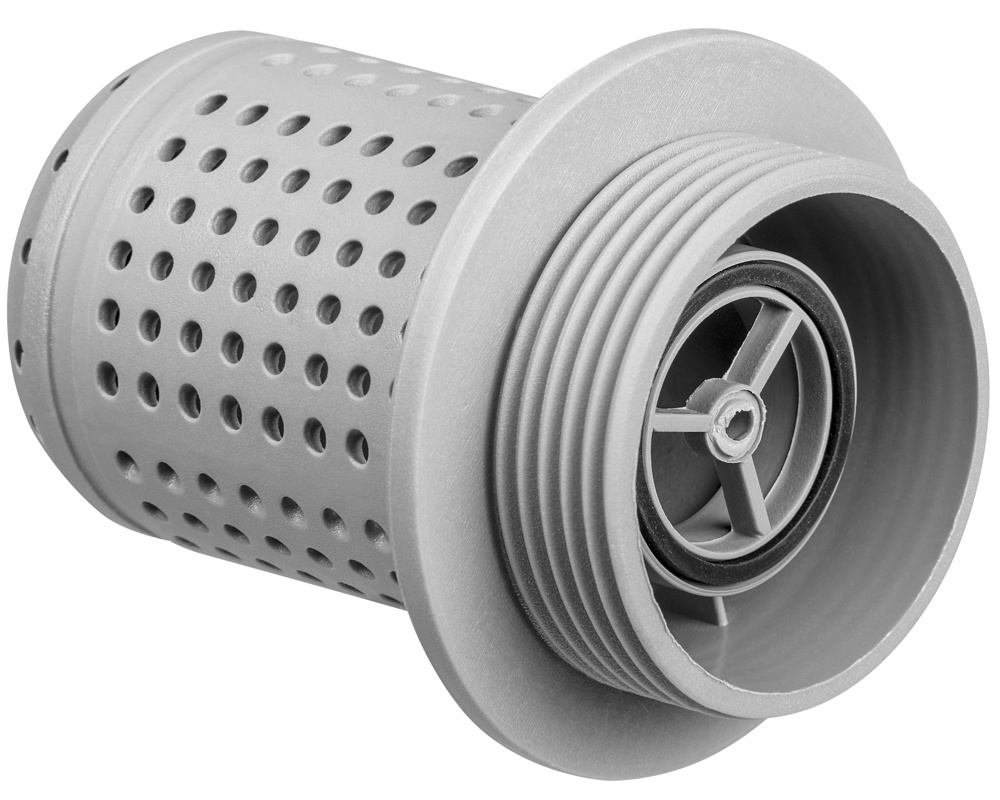

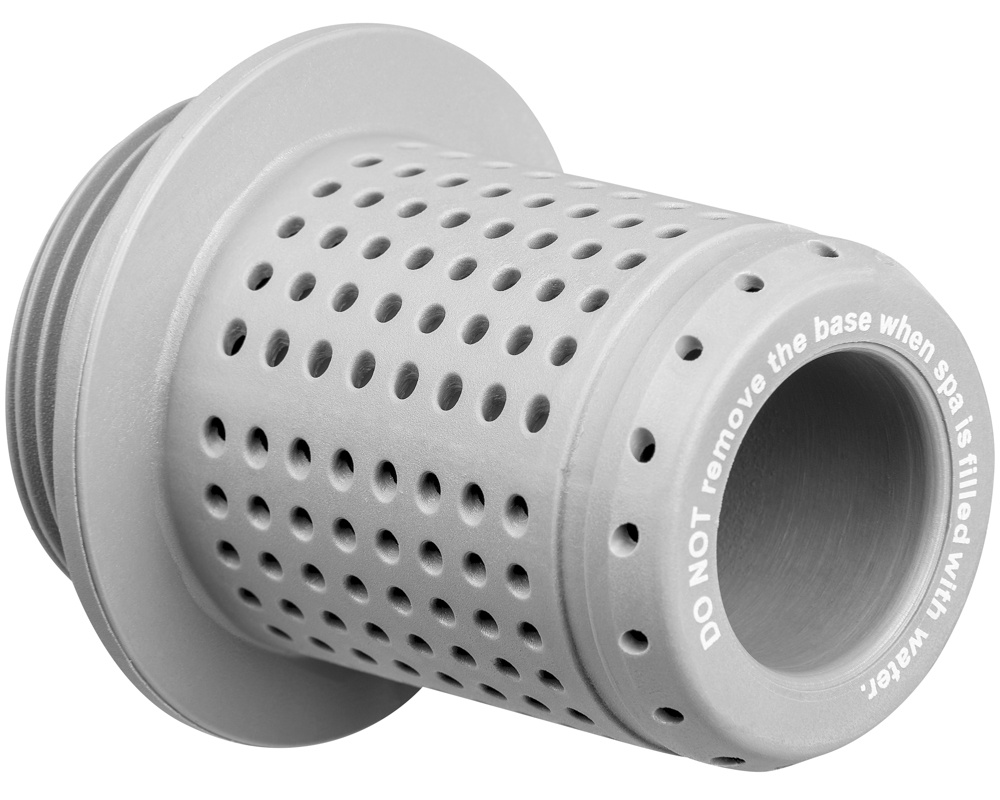

This grey MSpa suction and return fitting is a replacement part for all MSpa inflatable hot tubs from the Lite and Comfort series manufactured since 2020.

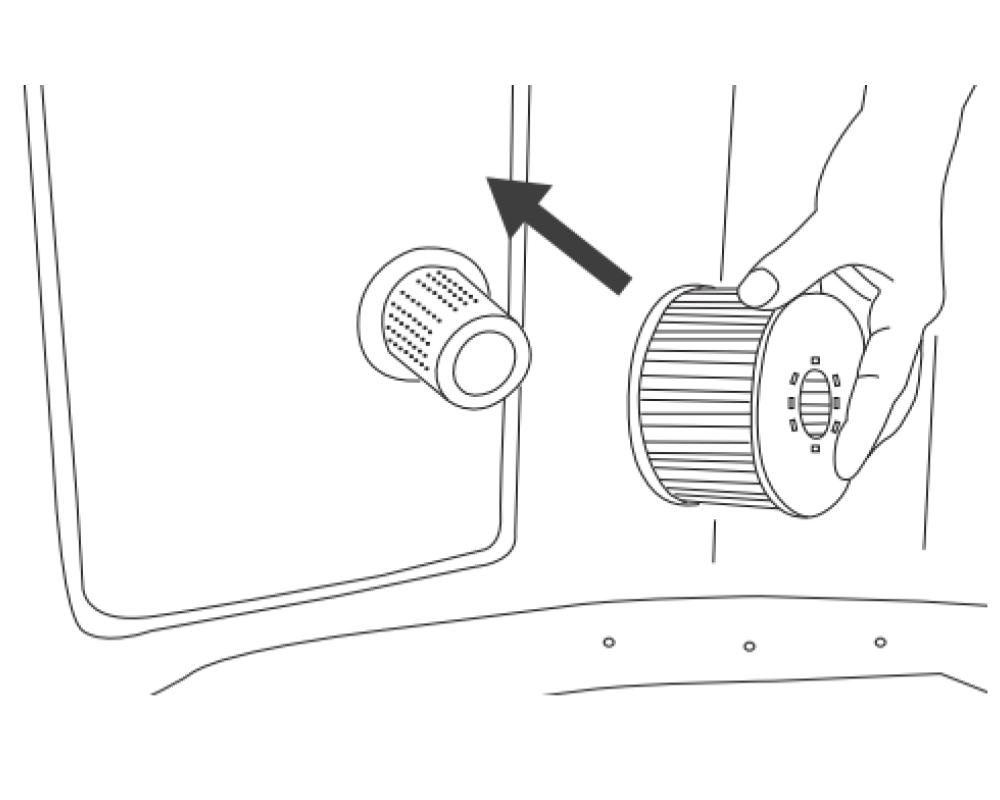

It combines the suction and return flow from the filtration pump, and screws through an opening in the pool wall, directly into the control system (photo 3).

If the holes are clogged with debris, empty the spa and unscrew the part by hand to clean it. Never unscrew this component when the spa is filled with water!

We recommend you change the gasket at the same time as this fitting.

Dimensions
Length: 91 mm
Max. diameter: 55 mm
Thread diameter: 57 mm

Compatible inflatable spas
MSpa Lite and Comfort series manufactured since 2020: Orbit, Cloud, Mist, Pebble, Glow, Bergen, Ottoman, Starry, Tekapo

Part numbers
MSpa: B9301403
