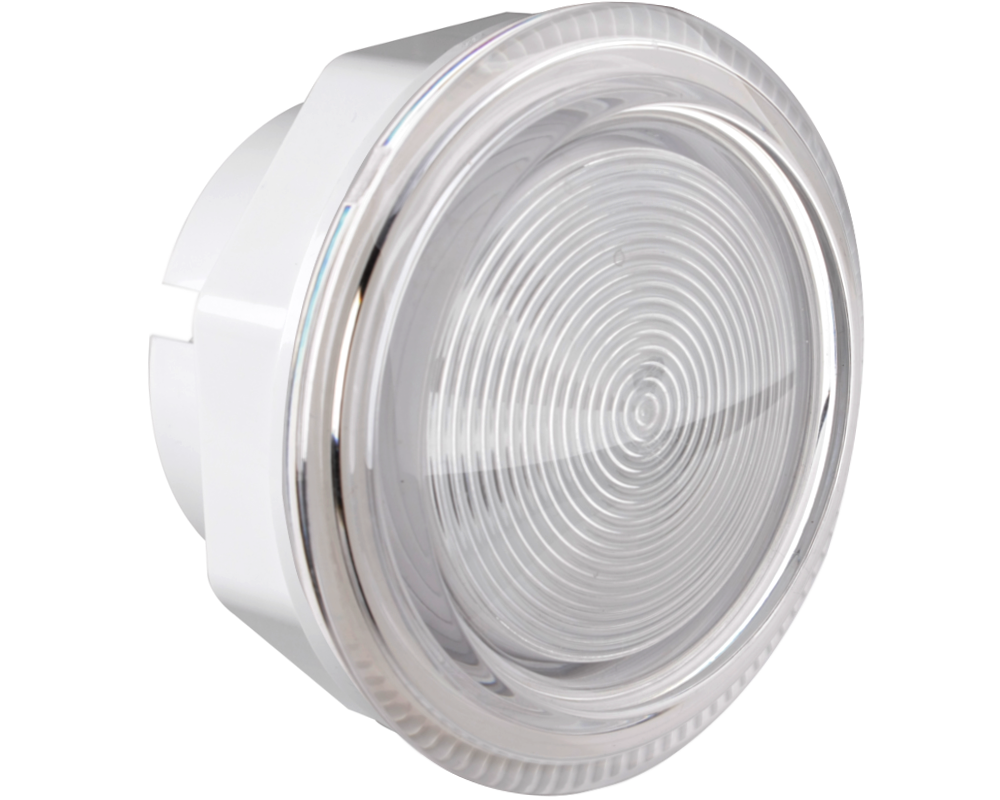

Rising Dragon 5" light housing assembly

This Rising Dragon 5” light housing assembly has a face diameter of 127 mm. It is often found on Wellis spas.

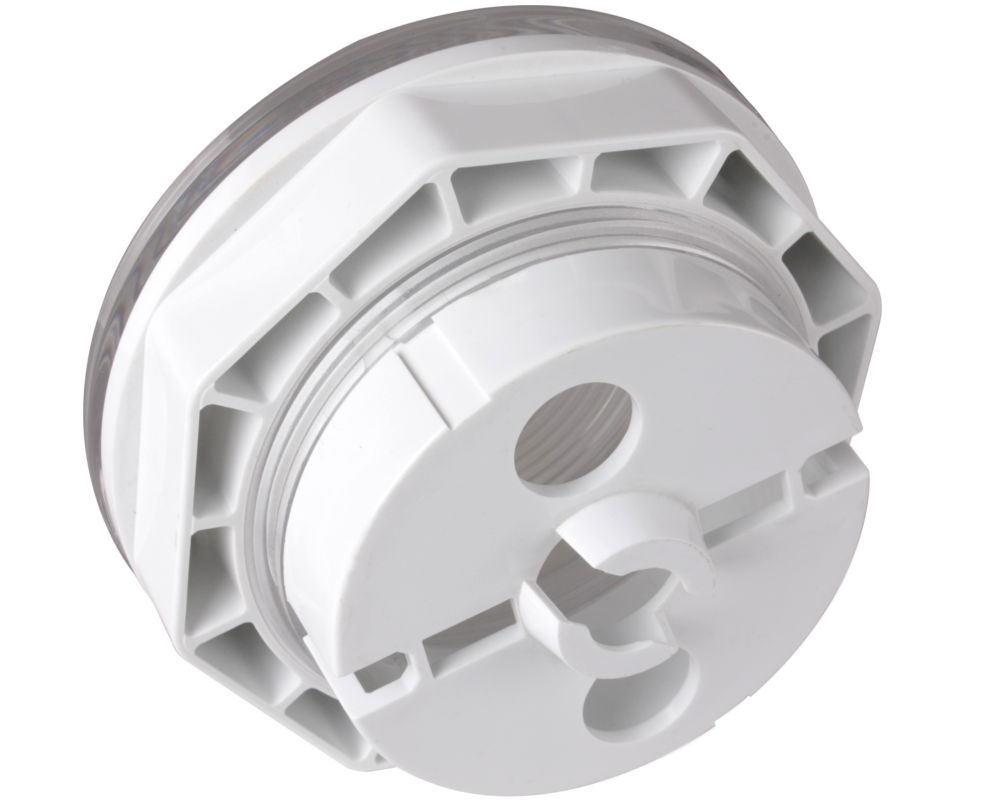

The light fitting comes with a large nut to secure it in place, an o-ring that between the face of the lens and the inside of the pool shell, and a white reflector.

Dimensions
Face diameter: 127 mm
Drill diameter: 94 mm
Inner diameter: 85 mm
Total height: 79 mm

Compatible bulbs
12W bulb, STARburst 10, STARburst 28, SloanLED UltraBRITE-mini, Balboa MoodEFX, String Lights master light and slave light, Rising Dragon 28 LEDs, Evolution master light and slave light, and multicoloured bulb for Davey spa pack.

Part numbers
Rising Dragon : RD631-1040
Wellis : ACM0531
Davey SpaPower : QRD5LH
