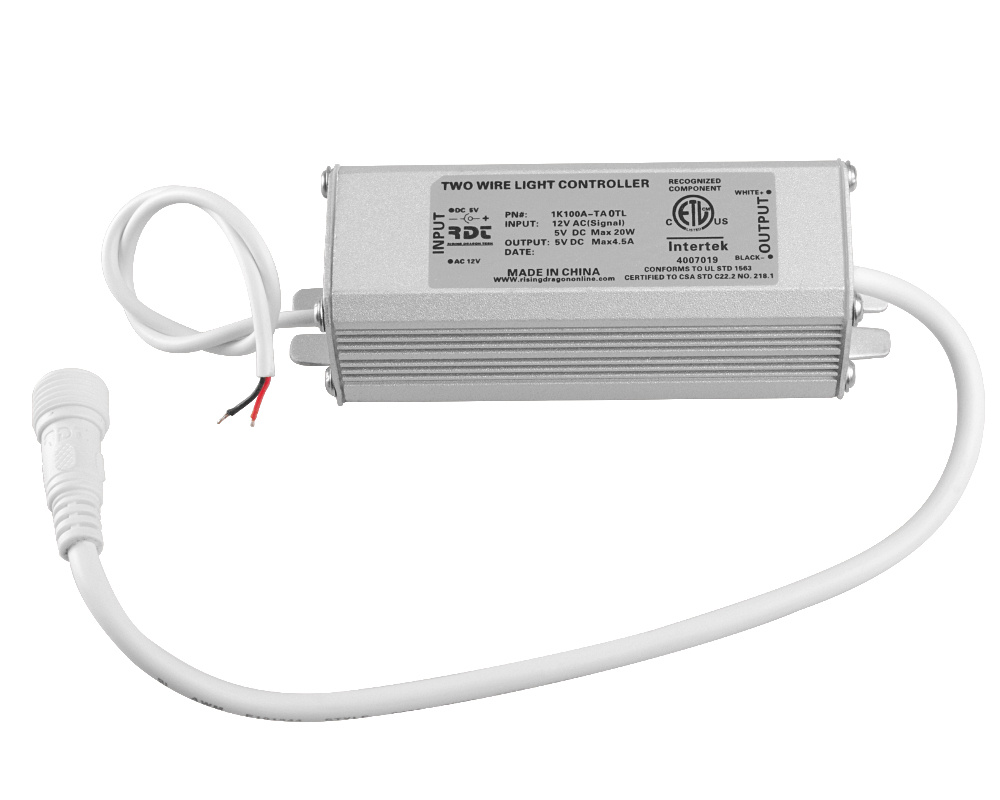

Rising Dragon Pinnacle Light Controller

This Rising Dragon light controller for LEDs is installed on many spa brands, including Arctic Spas.

Its power supply usually comes from a transformer, also supplied by Rising Dragon.

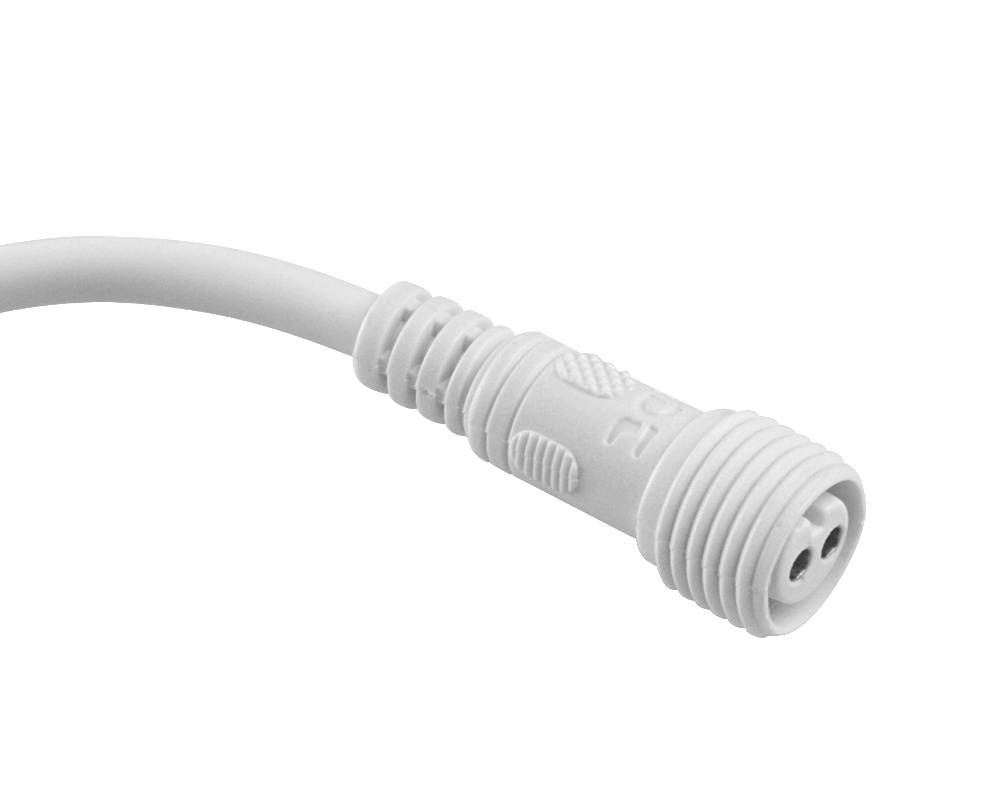

This controller should not be mistaken for the brand's four-wire model, as the two versions are not interchangeable! Make sure to check the two- or four-pin connector's output socket (see picture 2).

Dimensions
100 x 35 x 35 mm

Technical specifications
Voltage : Input : 5V DC
Control voltage : 12V AC
Voltage : Output : 5V DC
Max. power : 20 W

Part numbers
Rising Dragon : 1K100A-TA0TL or K100ATA
