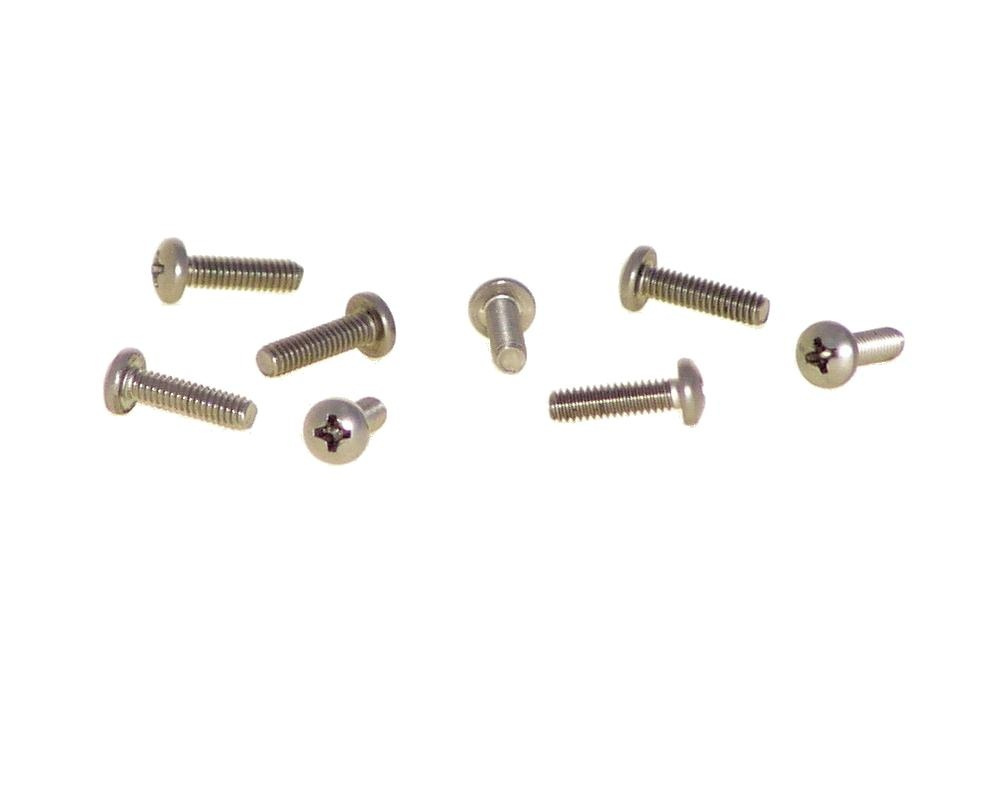

Set of 8 faceplate bolts size #8-32

Only 10 in stock
3,00€
incl. 20% VAT
Quantity:
Set of 8 faceplate bolts size #8-32 - Click to enlarge
Set of 8 faceplate bolts size #8-32 - Click to enlarge
Set of 8 faceplate bolts size #8-32 - Click to enlarge

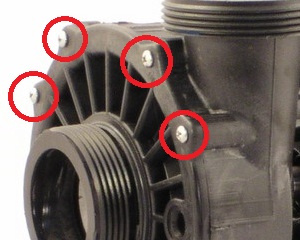

These cross-headed screws fasten the pump faceplate to the wet end. They are used on almost all Waterway and Aqua Flo pumps. Don't lose them if you want to open up your pump wet end, because it only takes one missing bolt to cause a leak. Most pumps use 8 of these bolts and so we sell them in sets of 8.

These are size #8 bolts, with a 32 turns per inch thread, so a 8-32 type.

Dimensions
Diameter : 4.06 mm (American size 8, 5/32")
Thread density : 32 turns per inch = 10 turns every 7.9 mm
Length : 15 mm, excluding the bolt head

Part numbers
Waterway: 819-1110
