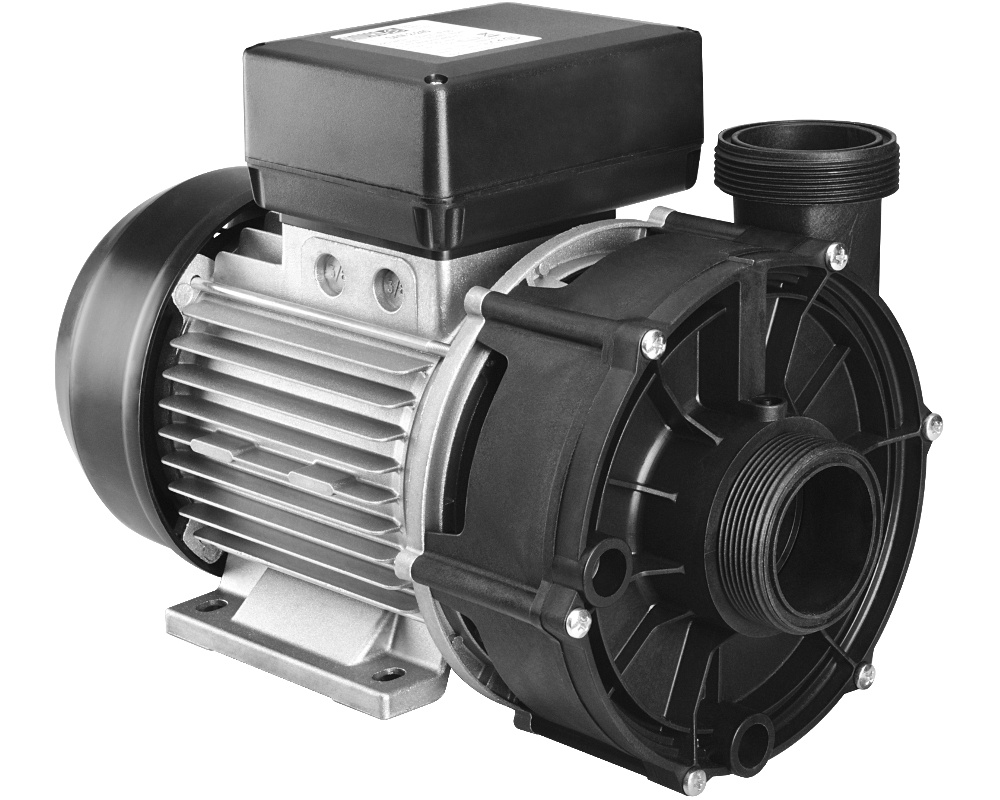

Simaco SAM2-200 single-speed pump

In stock
529,50€
incl. 20% VAT
Quantity:
Simaco SAM2-200 single-speed pump - Click to enlarge
Simaco SAM2-200 single-speed pump - Click to enlarge
Simaco SAM2-200 single-speed pump - Click to enlarge
Simaco SAM2-200 single-speed pump - Click to enlarge
Simaco SAM2-200 single-speed pump - Click to enlarge

The Simaco SAM2-200 single-speed pump is installed in many Teuco, Spaform and Jean Desjoyaux spa models, among others, and is used for the massage jets.

Simaco pumps are known for their quiet operation.

We also offer the 240 model from Simaco's SAM2 series, which is slightly more powerful.

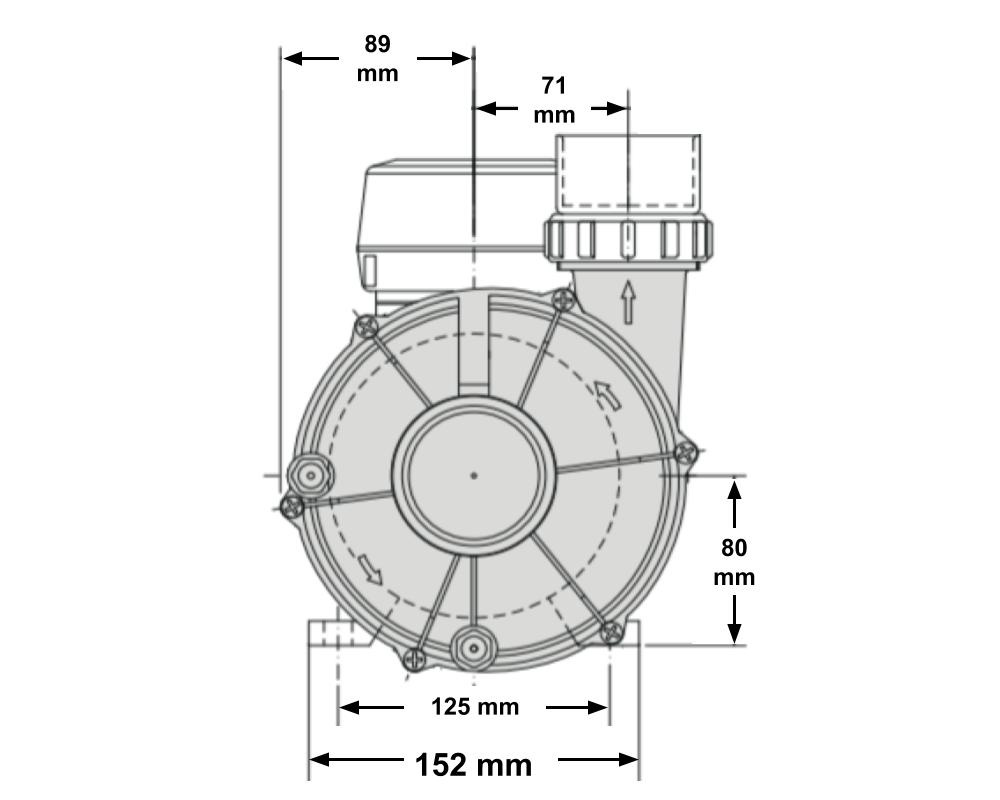

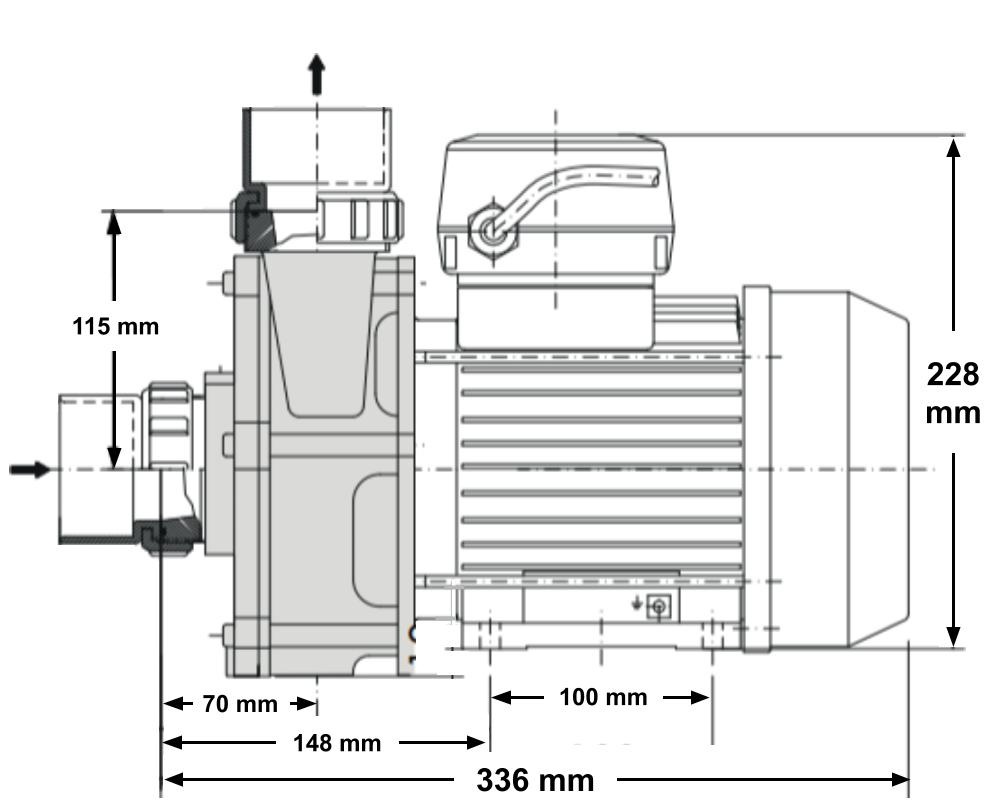

Dimensions (without the unions)
Length: 336 mm
Width: 193 mm
Height: 228 mm

Technical specifications
Power: 2 kW
Current: 9,5 A
Flow rate: 650 litres/minute
Speed of rotation: 2800 rpm

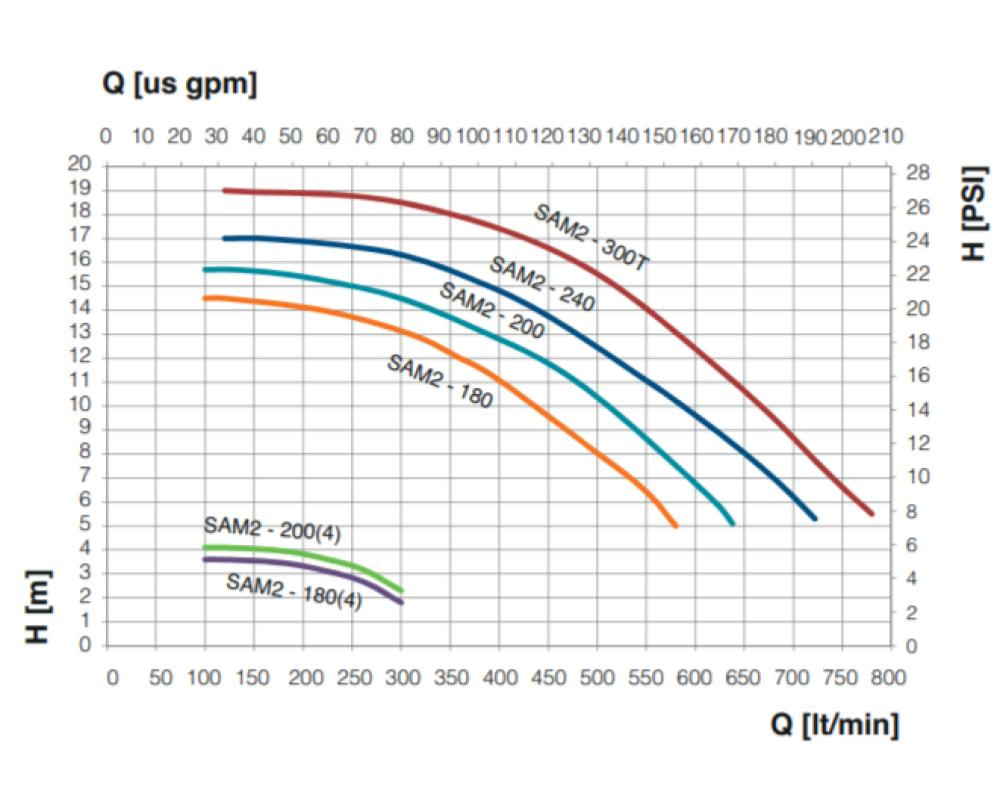

See the performance curves to the right of the page (the uppermost of the two pink lines is for this model)

Pipe connections
Male thread with an outside diameter of 66 mm
The Simaco SAM2-200 pump is supplied with its pump unions (nut + exit) for a 50 mm pipe. A single nut to be used with a 2-inch exit or a 63 mm exit is also available. Don't forget the gasket !

Cable and plug
The Simaco SAM2-200 pump comes with a cable (approx. 120 cm length) without plug. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Part numbers
Simaco: SAM2-200 (also a good replacement for SAM2-180 or SAM2-240)

Wet end orientation

Standard exit

Standard exit

Exit to left

Exit to left

Exit to right

Exit to right

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
