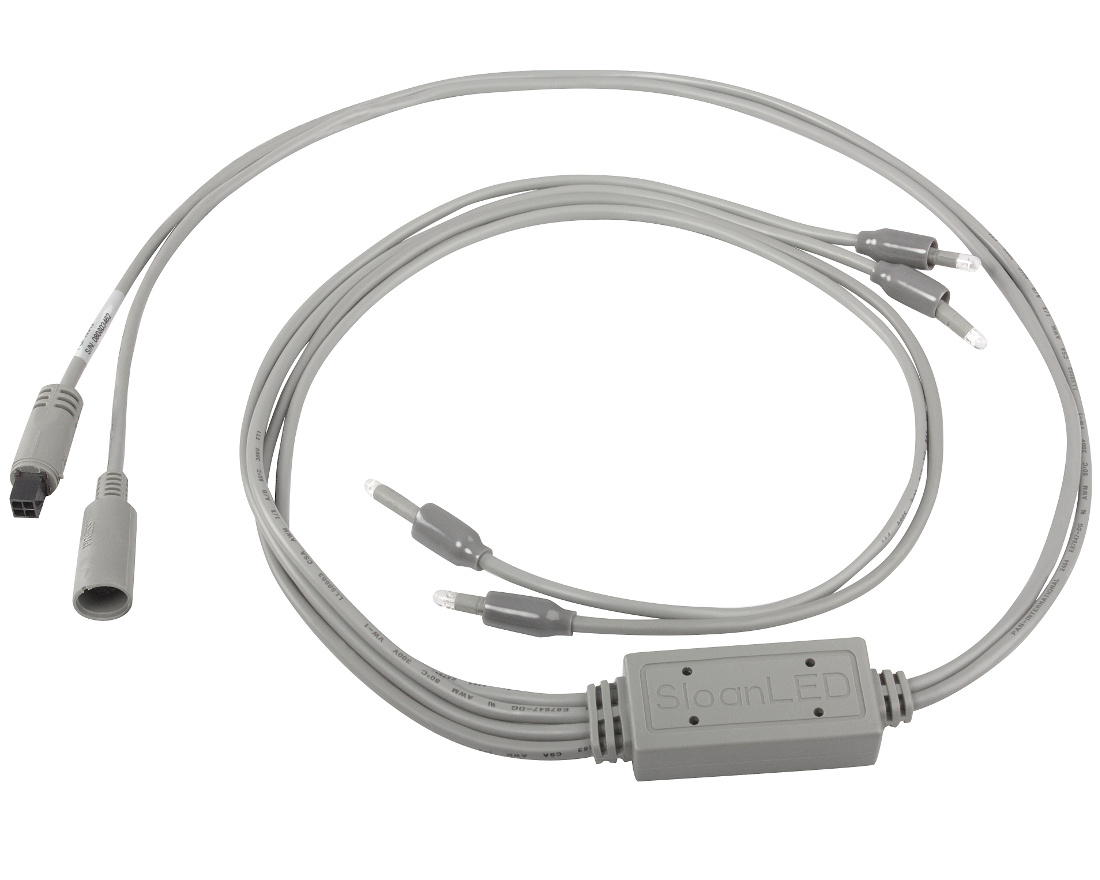

SloanLED LiquaLED Quad-LED

This Quad-LED bullet light connects to a SloanLED controller. It is installed in several spa brands, notably Spaform and Teuco.

Depending on the desired look, this 4-LED Spyder is mounted on the spa shell with LED fittings, or it can be inserted into the slots provided on the massage sockets (Waterway Poly Storm or Mini Storm for example) to combine lighting and massage, or on a control valve.

Dimensions
Total length: 130 cm
Length of the LED cables: 65 cm for the 2 outer cables and 43 cm for the 2 inner cables

Technical specifications
Required input Voltage: 12V DC
Typical Maximum Current: 40 mA

Compatible LED fittings
SloanLED 24 mm, Rising Dragon 17 mm and 19 mm white, Balboa 12 mm, Waterway Spot Light

Part numbers
SloanLED: 701564-4-DLO
Sunrise Spas: R6053311
