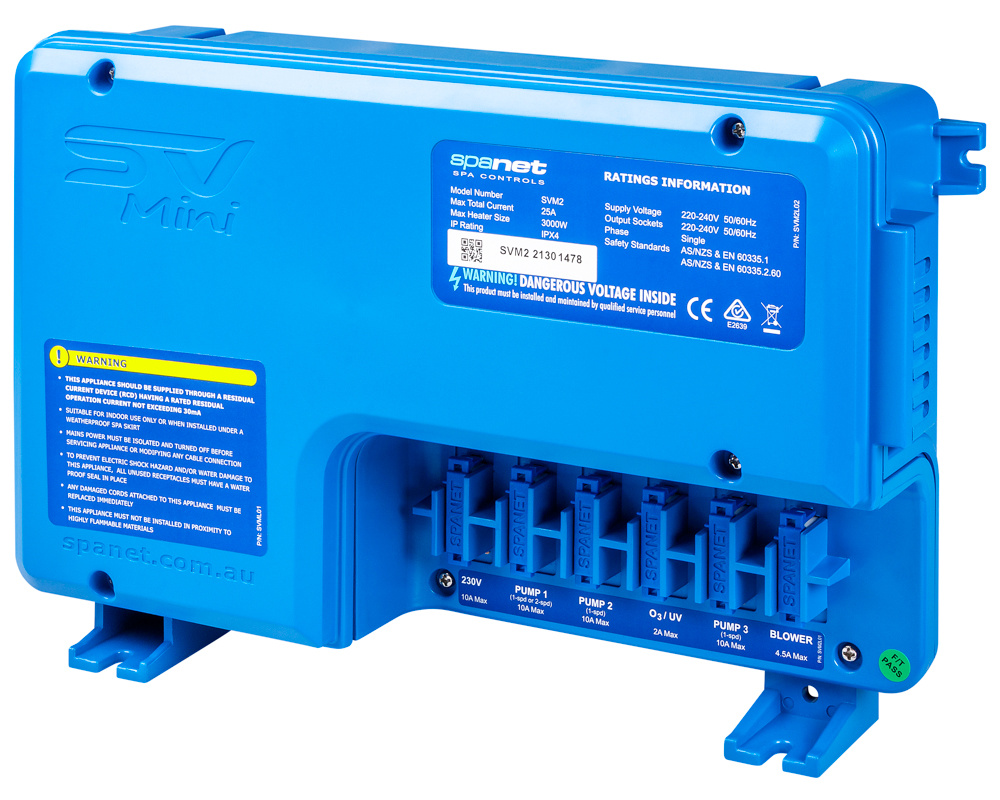

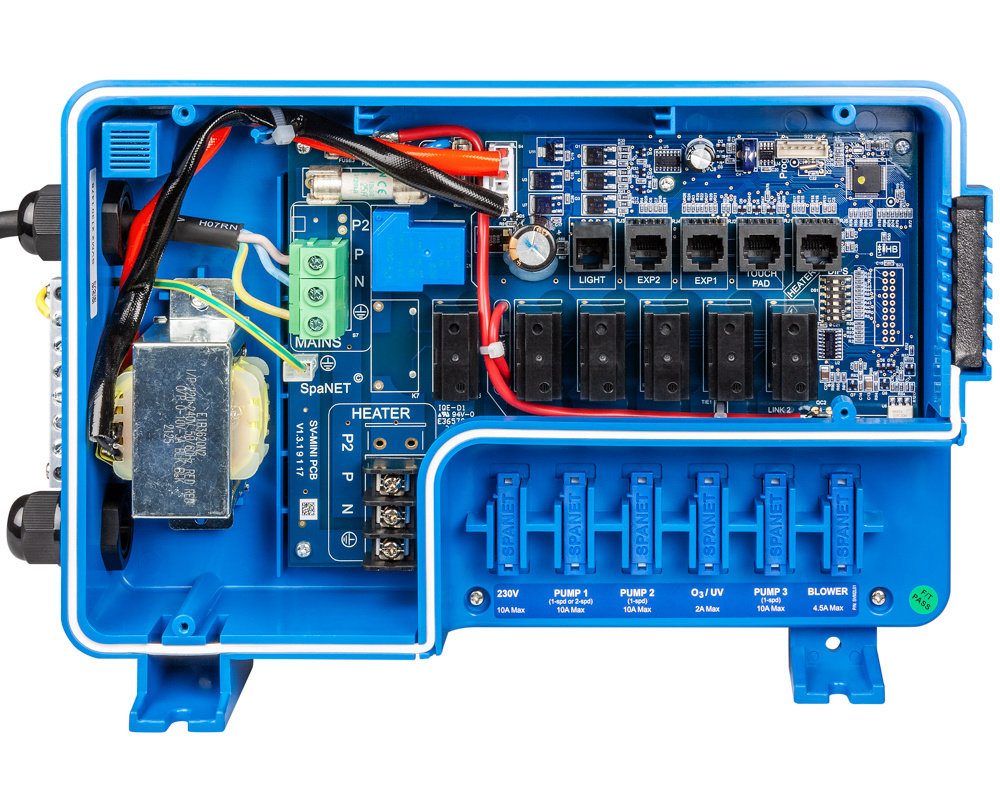

SpaNet SV Mini 2 control system
The compact SpaNet SV Mini 2 control system is great for smaller spa installations. Compatible with the SV Mini 2 series keypads, it can also be managed remotely with your Android smartphone, or from an iPhone or iPad using a SmartLink WiFi module.
Along with its remote 3 kW heater, which can be installed away from the control system if necessary, the SV Mini 2 can handle:
- One circulation pump or one two-speed pump
- Two single-speed pumps
- A blower
- An ozonator
- A projector
The SV Mini 2 also features a dedicated interface to connect a heat pump, making it ideal to heat spas and swim spas all year round while reducing energy consumption (SpaNet claims up to 75% savings in energy consumption compared to electric heaters). The spa control and keypad automatically detect the heat pump as soon as it is connected. No additional power circuit or cabling is required as the SV heat pump plugs straight into the SV spa control.
SpaNet control systems are featured on Monarque, O2 Spas, Vortex, Oasis and Sapphire Spas, among others.
Dimensions
Height: 320 mm
Width of box: 210 mm
Width of heater: mm, excluding unions
Depth: 80 mm
Plumbing connections to heater: 2 inches (connections and o-rings included)
Compatible with the following keypads
SV Mini 2 bone and rectangle, SmartTouch
Warranty
2-year Tubs Parts warranty
SpaNet part numbers
Control system: SVM-2
Heater: SVM-RH30
