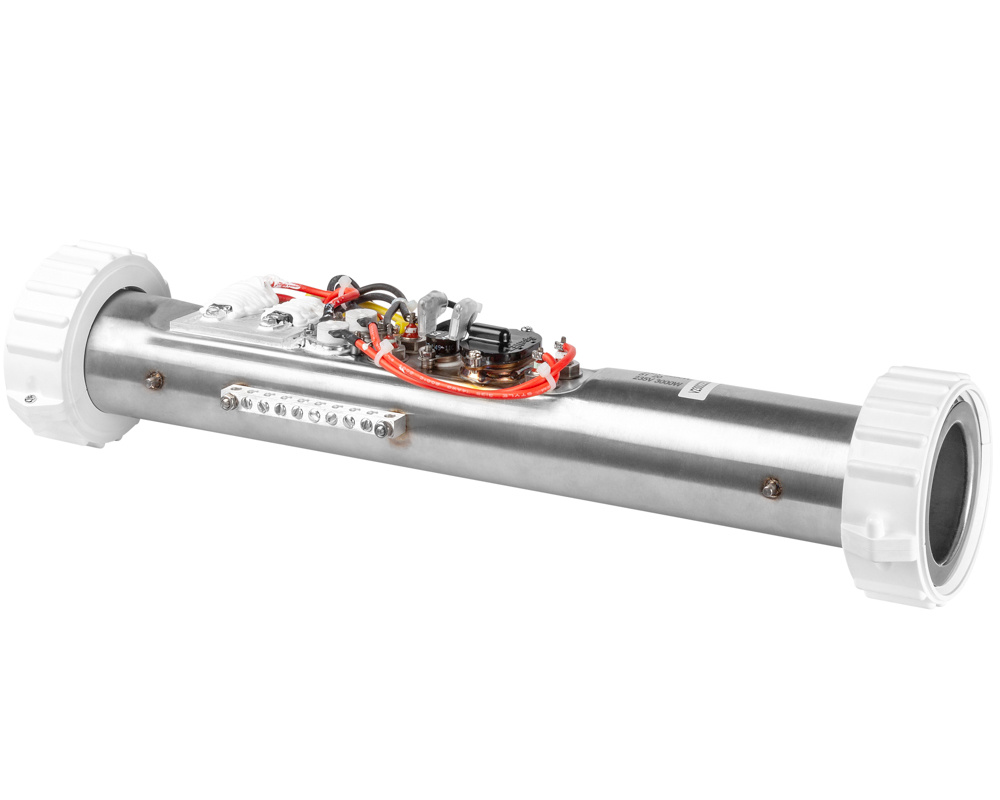

SpaNet SV (V2) 5.25 kW heater

This SpaNet SV (V2) heater with a 5.25 kW resistance is a replacement part for the SV3 (such as the SV3-VH) and SV4 - Version 2 control systems.

This variable heater (complete with wiring & all fittings) is directly managed by the system's control board, which automatically adjusts the power delivered to the heater according to the number of auxiliary devices (pumps, blower) in operation. Unlike a standard heater, this eliminates the usual need for load-shedding and turning the heater off when pumps engage, which ensures maximum heat input whilst the spa is in use.

The SV (V2) can replace the 6kW heater installed on the SV3 and SV4 Version 1 systems, which has been discontinued since 2010.

Dimensions
Length: 440 mm (without fittings)
Inside diameter of fittings: 60 mm, for 2-inch pipes

Connection
The heater is supplied with two clamping rings and gaskets. If you are replacing your heater, be sure if needed to add the union sockets for 2" pipes.

Warranty
2-year Tubs Parts warranty

Part numbers
SpaNet : SV-V2-HTR-55
